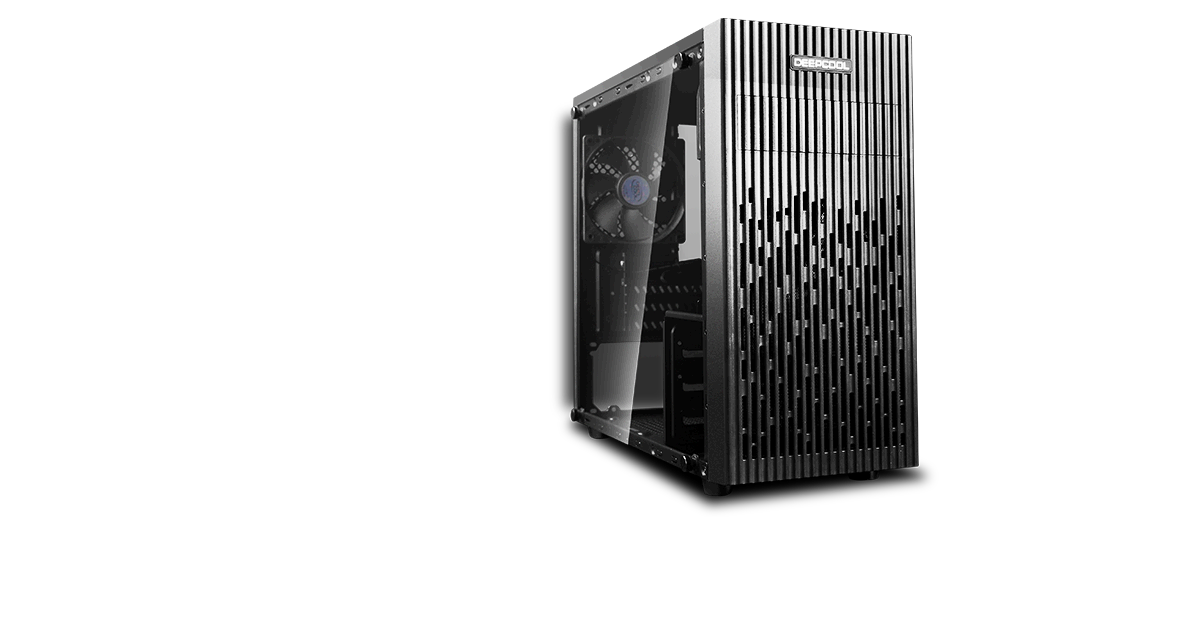

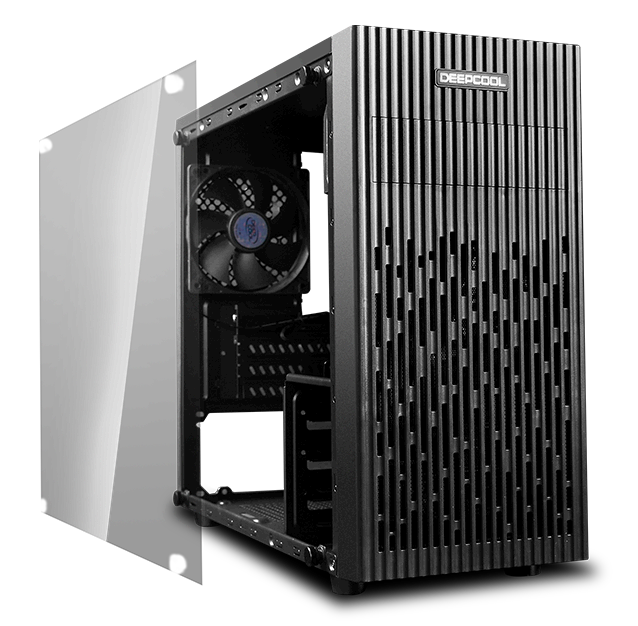

Deepcool DP-MATX-MATREXX30 Mini Tower
Chassis
Features
- The classic M-ATX structure is compatible with M-ATX and ITX motherboards.
- Equipped larger area of air-intake mesh at front panel.
- Supports 120mm radiator/fan in the front and pre-installed 120mm black fan
in the rear.
- The full-sized tempered glass side panel provides optimal view of the
interior.
- Removable 5.25 and 3.5 inch installation positions, providing limitless
DIY possibilities.
- Compatible with graphics cards up to 250mm.
- The ridge on the back panel provides 14.8 mm of space for cable
management.
DESCRIPTION
Matrexx 30 is small-sized M-ATX computer case, perfect for gamers looking to
build a small gaming PC. Its logical interior structure maximizes compatibility.
The full-sized tempered glass side panel provides optimal view of the interior
The classic M-ATX structure (dimensions 420 x 201 x 365mm) is compatible with
M-ATX and ITX motherboards Small and compact but with plenty of capacity
Utilizing honeycomb front air intake design, supports 120mm radiator/fan in
the front,pre-installed 120mm black fan in the rear,Matrexx 30 guarantees your
performance and aesthetic needsThe classic M-ATX structure (dimensions 420 x 201
x 365mm) is compatible with M-ATX and ITX motherboards Small and compact but
with plenty of capacity
Full sized tempered glass side panel gives the case a unique look to
perfectly show off your inner structure
Removable 5.25 and 3.5 inch installation positions, providing limitless DIY
possibilities
- Compatible with graphics cards up to 250mm
- The ridge on the back panel provides 14.8 mm of space for cable management
-
- The lower power supply design allows unhindered airflow for heat
dissipation
- The top panel is fitted with USB ports, headphone jack, and switch for
easy access
Specifications
Motherboards |
Micro
ATX/Mini-ITX |
Case
Type |
Mini
Tower |
Materials |
ABS+SPCC
(Steel panel thickness: 0.5mm) Tempered Glass side panel (thickness:
3mm |
Product
Dimensions (L×W×H) |
405.8×193×378.2mm |
Net
Weight |
3.62
Kg |
Gross
Weight |
4.33
kg |
5.25"
Drive Bays |
1 |
3.5"
Drive Bays |
3 |
2.5"
Drive Bays |
2 |
I/O
Ports |
USB2.0×1,
USB3.0×1, Audio×1, Mic×1 |
Expansion
Slots |
4 |
Cooling
Fans Support |
Pre-installed:
1×120mm black fan at rear Optional: Front: 1×120mm |
Cable
Management |
15mm
Clearance |
Liquid
Cooler Support |
Rear:
120mm radiator |
Power
Supply Type |
ATX
PS2 (Length less than 170mm) |
CPU
Cooler Height Limit |
151mm |
Graphics-card
Length Limit |
250mm |
Carton
Dimension (LxWxH) |
415×240×465mm |
P/N |
DP-MATX-MATREXX30 |
