CoolerMaster MCB-NR400-KGNN-S00 MasterBox NR400 With NO ODD SUPPORT
Overview
Form &Function Streamlined
- Minimalistic Design
- Seamless Tempered Glass
- Ample Storage Support
- Versatile HDD Cage
- Headset Jack
- Fan Support
- Radiator Support
- Component Clearances
MINIMALISTIC DESIGN
The MasterBox NR400 is a pure and simple design that is focused on airflow
performance. A single-layer, fine mesh makes up the entire front panel,
achieving efficient airflow while also acting as a dust filter.

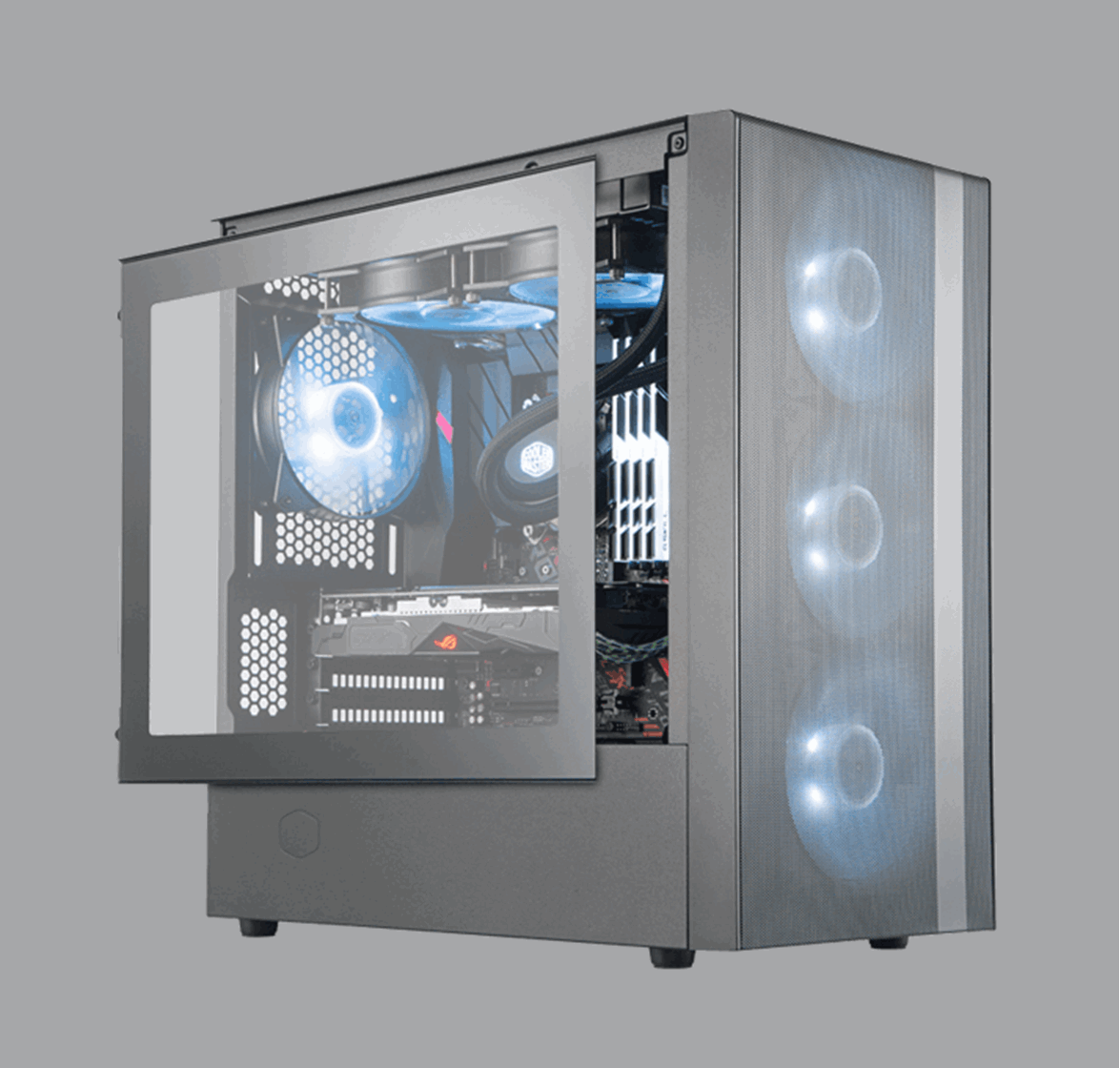

SEAMLESS TEMPERED GLASS
The tempered glass side panel sits completely flush against the chassis,
mounted securely and discreetly by a system of tabs and thumbscrews.

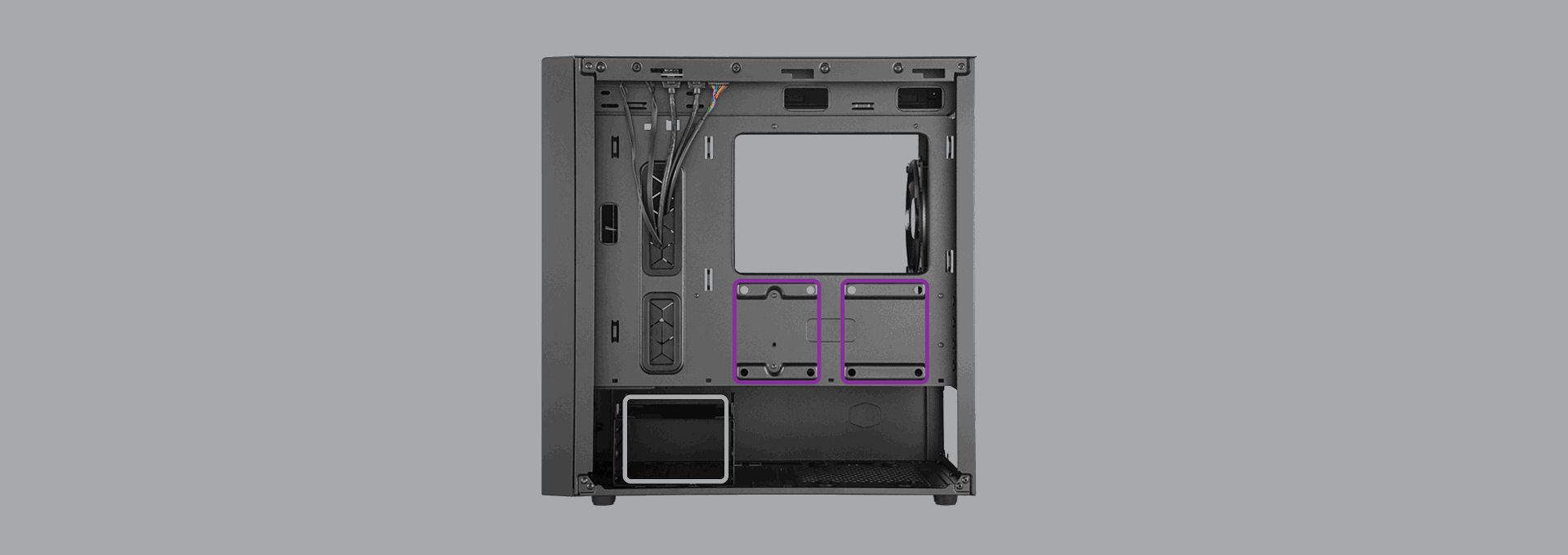

AMPLE STORAGE SUPPORT
A total of 4 x 2.5" and 3 x 3.5" drives can be mounted using a tool-less
system. Storage can be mounted on the PSU shroud, behind the motherboard tray,
and within the versatile HDD cage.
VERSATILE HDD CAGE
The HDD cage is (re)movable. The cage can be shifted forward to make room for
a longer PSU, backwards for additional radiator space, or completely removed if
HDD storage is not needed.

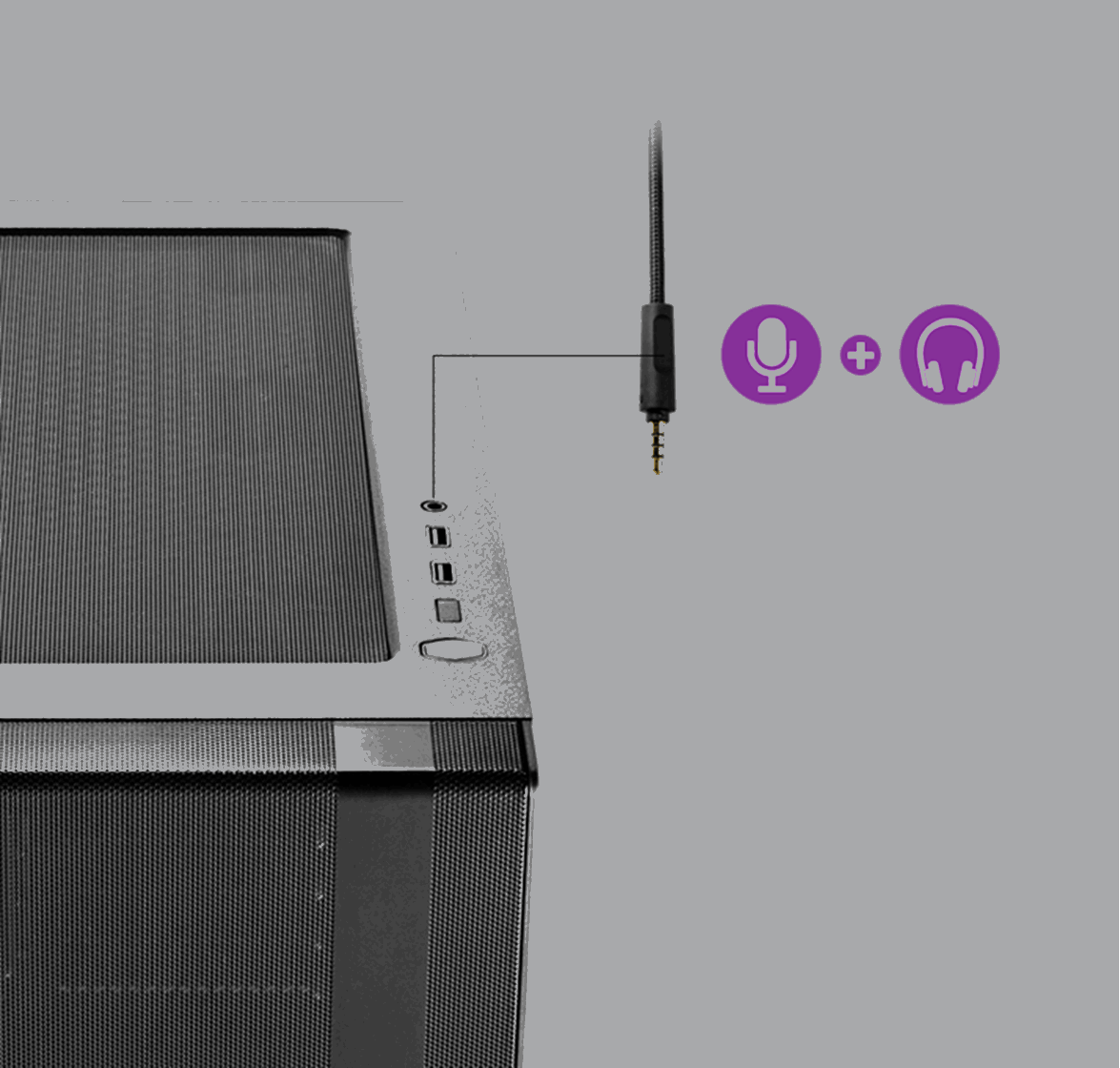

HEADSET JACK
The single 4 pole headset jack features both Audio and Microphone
capabilities simultaneously so that separate jacks are not needed.

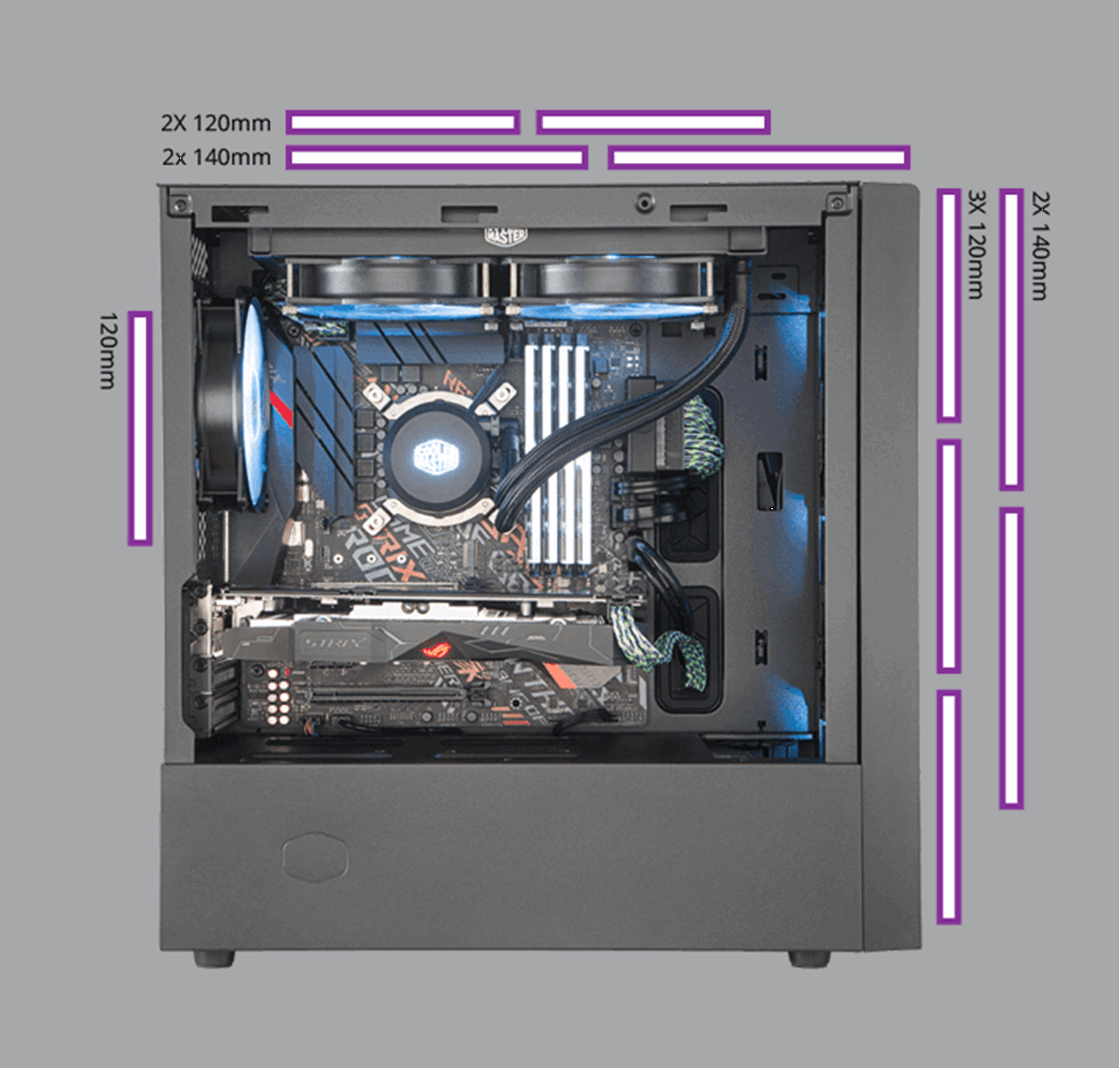

FAN SUPPORT
- Front: 120mm x3 / 140mm x2
- Top: 120mm x2 / 140mm x2
- Rear: 120mm x1

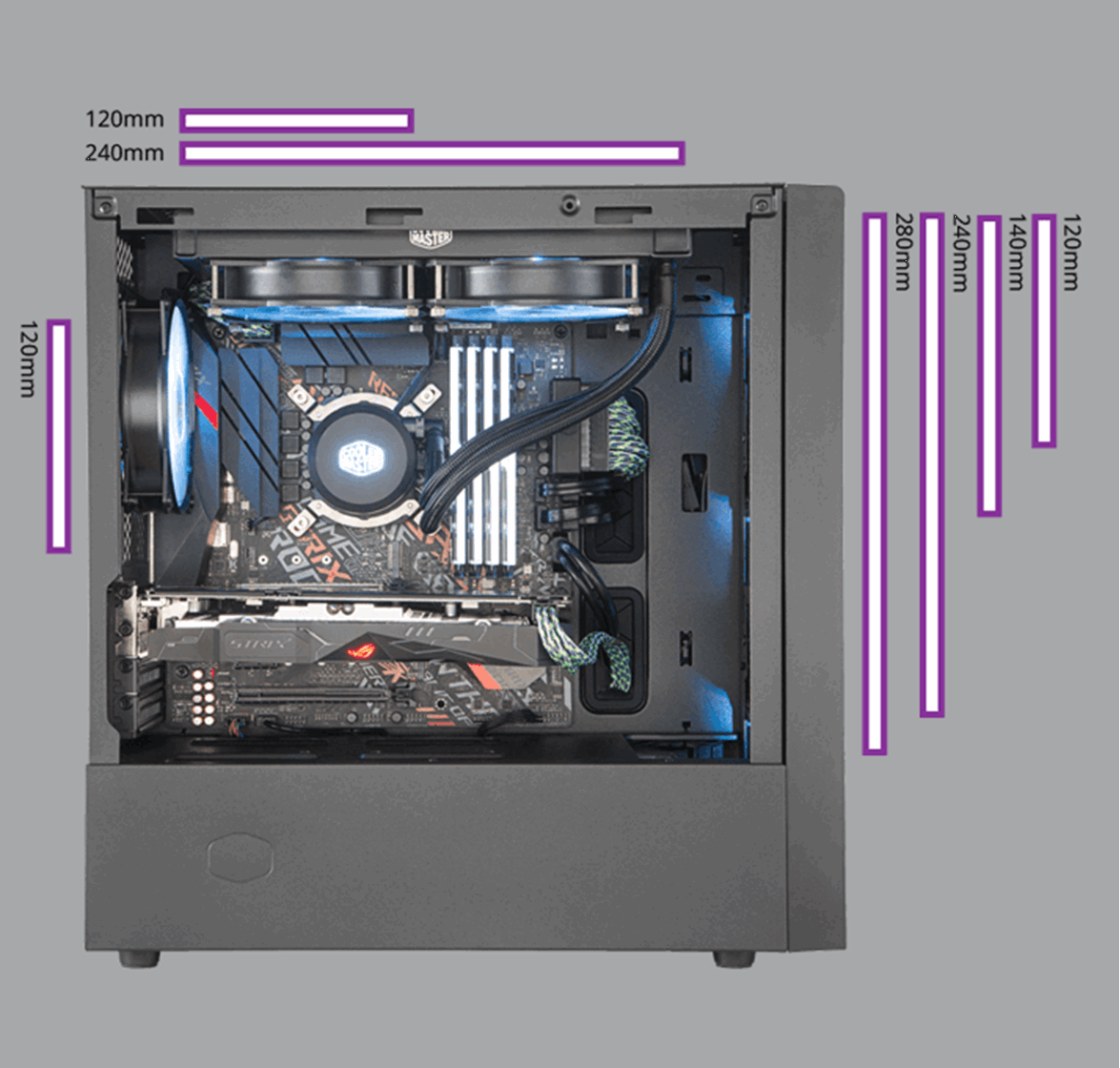

RADIATOR SUPPORT
- Front: 120/140/240/280mm
- Top: 120/240mm
- Rear: 120mm
Specifications
|
MODEL
NUMBER |
MCB-NR400-KG5N-S00 |
|
EXTERIOR
COLOR |
Black |
|
MATERIALS -
BODY |
Steel,
Plastic |
|
MATERIALS - SIDE
PANEL |
Tempered
Glass |
|
DIMENSIONS
(LXWXH) |
411 (L) x 210 (W) x 411
(H) mm |
|
MOTHERBOARD
SUPPORT |
Micro ATX, Mini
ITX |
|
EXPANSION
SLOTS |
4 |
|
5.25" DRIVE
BAYS |
0 |
|
3.5" DRIVE
BAYS |
3 |
|
2.5" DRIVE
BAYS |
4 |
|
I/O
PANEL |
2x USB 3.0, 1x 3.5mm
Headset Jack (Audio+Mic) |
|
PRE-INSTALLED FANS -
FRONT |
1x
120mm |
|
PRE-INSTALLED FANS -
REAR |
1x
120mm |
|
FAN SUPPORT -
FRONT |
2x 120mm, 2 x
140mm |
|
FAN SUPPORT -
TOP |
1x 120mm, 1x
140mm |
|
FAN SUPPORT -
REAR |
1x
120mm |
|
RADIATOR SUPPORT -
FRONT |
120mm, 140mm, 240mm,
280mm (may interfere with HDD mounted below ODD) |
|
RADIATOR SUPPORT -
TOP |
120mm |
|
RADIATOR SUPPORT -
REAR |
120mm |
|
CLEARANCE - CPU
COOLER |
166mm/6.54" |
|
CLEARANCE -
PSU |
325mm (w/o front
radiator &HDD cage), 140mm (HDD cage in backmost
position) |
|
CLEARANCE -
GPU |
346mm |
|
CABLE ROUTING -
BEHIND MOTHERBOARD TRAY |
22mm |
|
DUST
FILTERS |
Top,
Bottom |
|
POWER SUPPLY
SUPPORT |
Bottom Mount, ATX
PS2 |
|
EAN
CODE |
4719512080269 |
|
UPC
CODE |
884102052750 |
|
SERIES |
MasterBox
Series |
|
SIZE |
Mini
Tower |
