Capability/Feature |
Description |
|
Chassis |

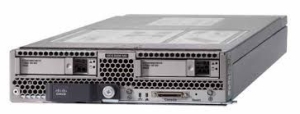

The
UCS B200 M5 Blade Server mounts in a Cisco UCS 5108 Series blade server
chassis or UCS Mini blade server chassis. |
|
CPU |
One
or two Intel Xeon scalable family CPUs or one or two 2nd Generation Intel
Xeon scalable family CPUs. Also note that the B200 M5 Blade Server BIOS
inherently enables support for Intel Advanced Encryption Standard New
Instructions (AES-NI) and does not have an option to disable this
feature. |
|
Chipset |
Intel
C620 series chipset (Lewisburg) |
|
Memory |
24
total DIMM slots |
|
|
Support
for Advanced ECC |
|
|
Support
for registered ECC DIMMs (RDIMMs) |
|
|
Support
for load-reduced DIMMs (LR DIMMs) |
|
|
Support
for through-silicon via DIMMs (TSV DIMMs) |
|
|
Support
for DC Persistent DIMMs (DCPMMs) |
|
|
Up
to 3072 GB DDR4 DIMM memory capacity (24 x 128 GB
DIMMs) |
|
|
Up
to 9 TB memory with a mix of DIMMs and DCPMMs |
|
|
12
x 256 GB DIMMs1 |
|
|
12
x 512 GB DCPMMs |
|
Modular
LOM |
One
modular LOM (mLOM) connector at the rear of the blade for a Cisco mLOM VIC
adapter, which provides Ethernet or Fibre Channel over Ethernet (FCoE)
connectivity |
|
Mezzanine
Adapters (Rear) |
One
rear mezzanine connector for various types of Cisco mezzanine
adapters |
|
|
Cisco
Mezzanine VIC Adapter, or |
|
|
Cisco
Mezzanine Port Expander, or |
|
|
Cisco
Mezzanine NVMe Storage Adapter, or |
|
|
Cisco
Mezzanine nVIDIA P6 GPU (can also be placed in front
connector) |
|
Mezzanine
Adapters (Front) |
One
front mezzanine connector for |
|
|
Cisco
FlexStorage controller with drive bays, or |
|
|
Cisco
Mezzanine nVIDIA P6 GPU (can also be placed in rear
connector) |
|
|
NOTE:
No front mezzanine cards are allowed with CPUs that dissipate equal to or
more than 165 W. |
|
Storage
controller |
|
|
For
the front mezzanine connector: |
Cisco
FlexStorage 12G RAID controller with drive bays |
|
|
Cisco
FlexStorage 12G RAID controller with 2GB Cache with drive
bays |
|
|
Cisco
FlexStorage NVMe Passthrough controller with drive bays (you
can |
|
|
also
have an NVMe storage adapter in the rear mezzanine connector
at |
|
|
the
same time) |
|
Storage
devices |
|
|
Up
to two optional, front-accessible, hot-swappable, 2.5-inch small form
factor (SFF) drive slots. Choice of: |
10K
RPM or 15K RPM hard disk drives (HDD) |
|
|
Enterprise
performance or enterprise value solid state drives
(SSD) |
|
|
High
or medium endurance NVMe Drives |
|
Internal
mini-storage modules that can accommodate either: |
Up
to two SD modules (32 GB, 64 GB, or 128 GB supporting RAID 1,
or |
|
|
Up
to two M.2 SATA drives (240 GB or 960 GB) supported by LSI SW
RAID |
|
|
Internal
UCS 3.0 Port that can accommodate a Cisco 16 GB USB
drive |
|
Video |
The
Cisco Integrated Management Controller (CIMC) provides video using a
Matrox G200e video/graphics controller. |
|
|
Integrated
2D graphics core with hardware acceleration |
|
|
DDR4
memory interface supports up to 512 MB of addressable
memory |
|
|
(8
MB is allocated by default to video memory) |
|
|
Supports
display resolutions up to 1920 x 1200 32 bpp@ 60Hz |
|
|
Single
lane PCI-Express host interface running at Gen 2
speed |
|
Interfaces |
One
KVM console connector on the front panel |
|
Power
subsystem |
Integrated
in the Cisco UCS 5108 blade server chassis |
|
Fans |
Integrated
in the Cisco UCS 5108 blade server chassis. |
|
Integrated
management processor |
The
built-in Cisco Integrated Management Controller (CIMC) GUI or CLI
interface enables monitoring of server inventory, health, and system event
logs |
|
ACPI |
Advanced
Configuration and Power Interface (ACPI) 4.0 Standard
Supported. |
|
|
Notes:
1. 256 GB DIMMs will be available in the second half of
CY2019 |
