All stock codes associated to this product
NZTCAH210iB1, NZT-CA-H210i-B1, 5060301695096

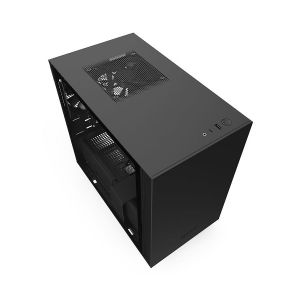

NZXT CA-H210i-B1 H210i Mini-ITX Case with Lighting
and Fan control - Matte Black
Overview
Weve made our iconic H Series PC cases even better. Our new lineup still
features the elements builders loved in the original H Series, including our
patented cable management system, removable fan/radiator mounting brackets, and
easy-to-use drive trays, alongside new updates like a front-panel USB-C
connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side
panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on
the H210i.
-
The new Smart Device V2
includes a faster microprocessor for NZXT CAM-powered control of two HUE 2 RGB
lighting channels and three fan channels that support either voltage regulated
or PWM fans.
-
With a USB 3.1
Gen2-compatible USB-C connector on the front panel, its easier than ever to
connect smartphones, high-speed external storage, or the latest peripherals to
your PC.
-
The clean, modern design,
iconic cable management bar, and uninterrupted tempered-glass side panel
showcase your stunning build.
-
Use the intuitive NZXT CAM
application to monitor and control your build, choosing from presets or custom
controls for your RGB lighting and fans to create your dream PC.
-
Cable management can often
take more time than assembly. We designed a cable routing kit with
pre-installed channels and straps, for intuitive and easy wiring.
-
Two Aer F120mm fans* are
included for optimal internal airflow and the frontpanel and PSU intakes
include removable filters. Includes a removeablebracket designed for radiators
up to 240mm simplifies the installation ofeither closed-loop or custom-loop
water cooling.
Specifications
|
Dimensions |
W: 210mm H: 349mm D:
372mm (with feet) |
|
Material(s) |
SGCC Steel and Tempered
Glass |
|
Weight |
6
kg |
|
Motherboard
Support |
Mini-ITX |
|
Front I/O
Ports |
1x USB 3.1 Gen 1
Type-A |
|
1x USB 3.1 Gen 2
Type-C |
|
1x Headset Audio
Jack |
|
Filters |
All Air
Intakes |
|
Smart Device
V2 |
3x Fan channels with
Max 10W per channel output* |
|
2x RGB LED port support
up to 4x HUE 2 addressable LED strips or 5x Aer RGB or Aer RGB 2
fans |
|
Built-in noise
detection module |
|
*Note: If a splitter
is used, fan control is regulated depending on the fan connected to the
4-pin port. Do not use low-noise adapters. |
|
LED
Strip(s) |
1 integrated
addressable LED strip |
|
Included
Accessories |
Installation
screws |
|
10 x Cable
ties |
|
1x Headset Audio Jack
splitter (4 pole to 3 pole) |
|
1x GPU
stand |
|
Expansion
Slots |
2 |
|
Drive
Bays |
2.5":
3+1 |
|
3.5":
1 |
|
Radiator
Support |
Front: 2x 120mm with
Push or Pull |
|
Rear: 1x
120mm |
|
Fan
Support |
Front: 2x 120 / 2x
140mm |
|
Top: 1x 120mm (1 AER
F120 Case version included) |
|
Rear: 1x 120mm (1 AER
F120 Case version included) |
|
Fan
Specs |
Aer F120 (Case
Version) |
|
Speed: 1200 200
RPM |
|
Airflow:
50.42 |
|
CFM Noise: 28
dBA |
|
Bearing: Rifle
Bearing |
|
Clearance |
Cable Management:
16.3mm |
|
GPU Clearance: Up to
325mm |
|
CPU Cooler: Up to
165mm |
|
Front Radiator:
85mm |
|
Rear Radiator:
42mm |
|
PSU Length:
311mm |
|
Warranty |
2
years |
