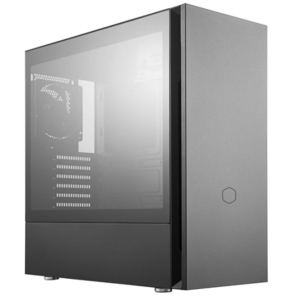

Coolermaster MCS-S600-KN5N-S00 Silencio S600 (w/ Steel Side
Panel)
Overview
Overview
- Silencio Design
- Silencio Technology
- Sound Dampening Material
- Seamless Tempered Glass or Sound-Dampened Steel
- Top & Front Ventilation
- Reversible Steel Door
SILENCIO DESIGN
The Silencio's minimalistic design cloaks its complexity. Design elements
fine-tuned in form and function result in minimized noise and efficiently
maintained system temperatures
SILENCIO TECHNOLOGY
Behind the outer panels are pieces of meticulously placed sound dampening
material. The development of the Silencio was driven by Sorama's Cam64-this
allowed for the entire sound spectrum to be visually analyzed by source,
resonance pattern, and frequency.
With the identification of peaks within certain frequency ranges, fine-tuning
the Silencio for the dispersion of resonance was made possible, reducing the
prominence of noise generated by system components. Every detail in design
optimized the Silencio for thermal efficiency and silence, from the type of
material used to its placement.
SOUND DAMPENING MATERIAL
The Silencio utilizes a combination of sound dampening materials, from thick
soft foam to heavy mass-loaded vinyl, to precisely counter prominent
frequencies.
SEAMLESS TEMPERED GLASS OR SOUND-DAMPENED STEEL
Available with seamless tempered glass or a sound-dampened steel side panel,
systems can be built for show or for stealth with the Silencio.
VENTILATION
TOP
For an even higher demand for ventilation, the top panel's Sound Dampening
Cover can be removed for unrestricted ventilation. An optional dust filter for
the top panel ventilation is included, allowing the top panel and front panel
work in conjunction to cool the system.
FRONT
The front panel features a recurved vent, directing air in through the front
bezel. The curve points downward, taking air in from the bottom, and straightens
out to direct air in from either side of the steel front door.
REVERSIBLE STEEL DOOR
The steel front door features a reversible mounting system, capable of
opening in either direction. To prevent vibrations, a softer, thicker material
spans the steel structure in conjunction with a hinge system of magnets and
rubber stompers.
SILENCIO FANS
Two Silencio FP 120mm PWM fans are pre-installed with rubber padding to
reduce noise, featuring specially designed blades that allow both quiet
operation and high air pressure.
VERSATILE HDD CAGE
The HDD cage is (re)movable. The cage can be shifted forward to make room for
a longer PSU, backwards for additional radiator space, or completely removed if
HDD storage is not needed.
MOTHERBOARD SUPPORT
Mini-ITX, Micro-ATX
Cooling Support
Fans
Radiators
Top:
120
/ 140mm x 2 Fans
120
/ 240mm* Radiator
*remove
ODD cage
35mm
max motherboard component height
Front:
120
/ 140mm x 2 Fans
120
/ 140 / 240 / 280 Radiator
Rear:
120
x 1 Fan
120
x 1 Radiator
STORAGE SUPPORT
5.25"
ODD x 1 (ODD version)
3.5"
HDD x 4
2.5"
SSD x 5
CLEARANCES
- CPU Cooler (Steel): 167mm
- CPU Cooler (TG): 166mm
- Power Supply: 160mm
- Graphics Card: 398mm
Specifications
|
Product
Name |
Silencio S600 (w/ Steel
Side Panel) |
|
Product
Number |
MCS-S600-KN5N-S00 (w/
Steel Side Panel) |
|
Exterior
Color |
Black |
|
Materials -
Body |
Steel, Plastic, Sound
Dampening Material |
|
Materials - Left
Side Panel |
Sound-Dampened Steel
(MCS-S600-KN5N-S00) |
|
Dimensions (LxWxH) -
incl. Protrusions |
478 x 209 x
470.5mm |
|
Dimensions (LxWxH) -
excl. Protrusions |
466 x 209 x
460.5mm |
|
Volume (Liters,
excl. Protrusions) |
44.8L |
|
Motherboard
Support |
Mini-ITX, Micro-ATX,
ATX |
|
Expansion
Slots |
7 |
|
Drive Bays -
5.25" |
1 |
|
Drive Bays - 3.5"
HDD |
4 |
|
Drive Bays - 2.5"
SSD |
5 |
|
I/O Panel - USB
Ports |
USB 3.2 Gen1 x 2
(formerly USB 3.0) |
|
I/O Panel - Audio In
/ Out |
1 x 3.5mm Headset Jack
(Audio + Mic) |
|
I/O Panel - SD Card
Reader |
Supports SD & MMC
Cards |
|
Pre-installed Fan(s)
- Front |
120mm x 1(PWM 800~1400
RPM) |
|
Pre-installed Fan(s)
- Rear |
120mm x 1(PWM 800~1400
RPM) |
|
Fan Support -
Front |
120mm x 2 / 140mm x
2 |
|
Fan Support -
Top |
120mm x 2 / 140mm x
2 |
|
Fan Support -
Rear |
120mm x
1 |
|
Radiator Support -
Front |
120 / 140 / 240 /
280mm |
|
Radiator Support -
Top |
120mm / 240mm (remove
ODD) |
|
(35mm max motherboard
component height) |
|
Radiator Support -
Rear |
120mm |
|
Clearances - CPU
Cooler |
167mm
(MCS-S600-KN5N-S00) |
|
Clearances - Power
Supply |
160mm |
|
Clearances -
Graphics Card |
398mm |
|
Cable Routing -
Behind MB Tray |
18~26mm |
|
Dust
Filters |
Top, Front,
Bottom |
|
Power Supply
Support |
Bottom Mount, ATX
PS2 |
