All stock codes associated to this product
CLW082PL00BLA, CL-W082-PL00BL-A
Thermaltake CL-W082-PL00BL-A Pacific PR22-D5 Reservoir/Pump
Combo
Design
Thermaltake launches the Pacific PR Series tube reservoir and D5 pump for the
ultimate in custom PC watercooling configurations. Featuring exceptional
performance and unrivalled reliability, the PR22-D5 is manufactured from high
quality POM and PMMA material to provide a crystal clear, high performance,
durable solution. By giving users ideal mounting, fitting and flow, the PR22-D5
is the right choice for PC enthusiasts. Choose from: 200ml or 300ml to make your
system a showcase for all to see with the Thermaltake Pacific PR Series.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied only to
products that pass the design and hardcore enthusiasts standards that a true LCS
chassis should hold to. The Tt LCS certification was created so that we at
Thermaltake can indicate to all power users which chassis have been tested to be
best compatible with extreme liquid cooling configurations, ensuring you get the
best performance from the best features and fitment.
Driven Performance

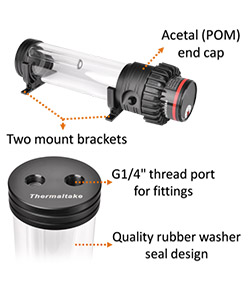

Made in Taiwan, PR22-D5 top cap supports rubber washers for a proper seal,
including two predrilled G1/4 ports for fittings. Featuring 6mm thick of the
pipe wall, Pacific PR Series can sustain the maximum pressure up to 99 PSI
(Pounds per square inch). Also, users can easily open out the top cap, cleaning
the reservoir thoroughly.
Ultimate Speed Controller and High-lift Pumping

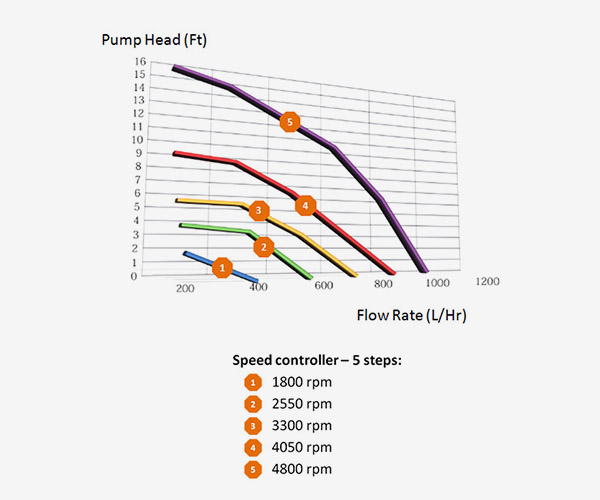

The PR22-D5 is designed with a manual speed control knob to provide five
speeds. Maximum discharge up to 1135L/hr provides high-performance cooling to
your components. High-lift pumping of the pump head reaches up to 15 feet high
at the maximum speed. Enthusiasts can build up advanced liquid cooling loop, two
GPUs, three radiators, or even more DIY components at the same time. The pump is
compatible with Thermaltake Pacific Series reservoirs and fittings, further
increasing system performance, providing ultimate control for your water cooling
system.
Heat-resistant Acrylic Tank
The Pacific PR Series tube reservoirs are all made of reliable, light
weighted POM and PMMA construction, which is crystal clear and highly durable.
High quality acrylic (PMMA) tube maximum working temperature: 131 (55).
Easy and Flexible Application
Along with two brackets connected to both ends, Pacific PR Series is solid
hold inside the chassis and allows enthusiasts to build up superior water
cooling system from an aesthetic standpoint and incorporate externally-modular
upgrades for their chassis. The Pacific PR Series can be installed either
horizontally or vertically, making the chassis out of the ordinary!
Specifications
|
P/N |
CL-W082-PL00BL-A |
|
DIMENSION |
94.1 (L) x 87.4 (W) x
309.7 (H) |
|
CONNECTOR |
4
Pin |
|
MATERIAL |
POM+
PMMA |
|
CAPACITY |
300
ml |
|

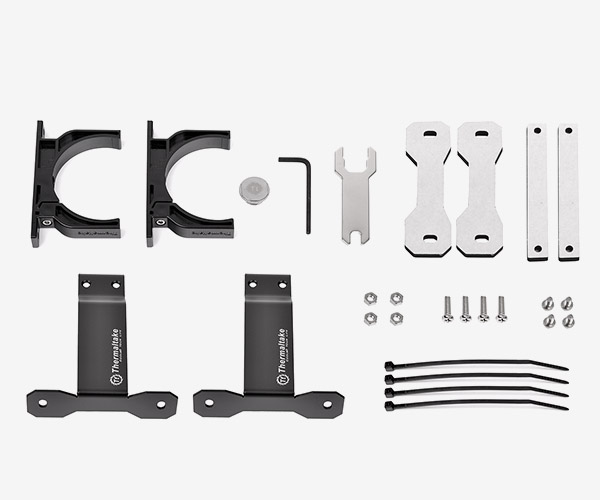

PARTS |
1. Stopper *1 (G 1/4
) |
|
2. Bracket
*2 |
|
3. Clip
*2 |
|
SCREW
THREAD |
G
1/4 |
