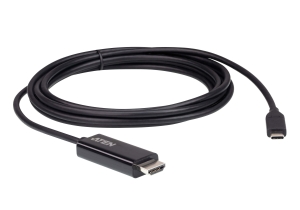

Aten UC3238 USB-C to 4K HDMI Converter (2.7M)
Overview
- Connect a USB-C enabled laptop or Smartphone which utilizes“DP Alt
Mode”functionality to an HDMI compatible display using a single cable
- Supports resolutions up to 4K@60Hz (3840 x 2160 @ 60 Hz)
- Supports a long-distance connectivity of up to 2.7 meters
- Works with all major operating systems: Windows®, OS X®, and
Android
USB-C connection, Plug and Play
No drivers or adapters required. The UC3238 is the perfect solution for your
USB-C enabled laptop or smartphone.
Ultra High-Definition 4K Video
Supports resolutions up to 4K@60Hz (3840 x 2160 @ 60 Hz). Transmits
high-definition video and audio from a computer to an HDTV for video streaming
or gaming.
2.7-Meters Long Distance Connectivity
Supports a long-distance connectivity of up to 2.7
meters, providing maximum conductivity and improving signal
transmission.
Multiplatform Support
Cast from your phone or laptop, including MacBook, to any HDMI-enabled
TV/monitor/projector for both video and audio transfer.
Package Contents
- 1x USB-C to 4K HDMI Converter (2.7M)
- 1x User Instructions
Features
- UC3238 is a seamless, single cable solution for connecting from USB-C
laptop to an HDMI display, allowing for tidy installation and cable management
without the needs for additional dongles or HDMI extension cables.
- It supports HDMI 2.0 with a 4K (3840 x 2160 @ 60 Hz) resolution. Users can
transmit high-definition video and audio from computer to an HDTV for video
streaming or gaming. In addition, you can connect and configure your monitor
for a mirrored display or an extended desktop view.
- Moreover, UC3238 does not require external drivers or additional power. It
works with USB-C port computers and smartphones with DP Alt mode, compatible
with Android, Mac OS X and Windows operating systems, and is convenient to use
and carry around.
- It has a fully reversible USB-C interface with 2.7 meters longdistance
connectivity that is capable of providing maximum conductivity and improving
signal transmission.
Diagram
Specifications
|
Computer
Connections |
1 |
|
Connectors |
|
USB
Port |
1 x USB-C
Male |
|
Video
Output |
1 x HDMI Type-A
Male |
|
Video |
|
Max.
Pixel Clock |
594MHz |
|
Max.
Resolution |
3840 x 2160 @ 60
Hz |
|
Compliance |
USB 3.1 Type-C with DP
Alt Mode (Thunderbolt 3 Compatible) |
|
USB Billboard Device
Class |
|
HDCP
2.2 |
|
HDMI
2.0 |
|
Audio |
|
Output |
1 x HDMI Type A
Male |
|
Environmental |
|
Operating
Temperature |
0 - 40
C |
|
Storage
Temperature |
-20 60
C |
|
Humidity |
0 - 80% RH,
Non-Condensing |
|
Physical
Properties |
|
Housing |
Plastic |
|
Weight |
0.16 kg ( 0.35 lb
) |
|
Dimensions
(L x W x H) |
6.40 x 2.10 x 1.10
cm |
|
(2.52 x 0.83 x 0.43
in.) |
|
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH
format. |
