All stock codes associated to this product
CLW250PL00BLA, CL-W250-PL00BL-A

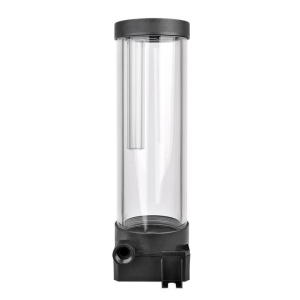

Thermaltake CL-W250-PL00BL-A Pacific PR22-DDC Reservoir/Pump
Combo
Design
Pacific PR22-DDC Reservoir/Pump Combo is a reservoir and DDC pump combo unit
kit. The combo features exceptional performances, the reservoir is 210mm long
with 300ml capacity, and the DDC pump speed is 4600RPM. PR22-DDC is manufactured
from high quality PPS and PMMA material to provide a crystal clear, high
performance, durable solution. By giving users ideal mounting, fitting and flow,
the PR22-DDC is easy to install. Upgrade your system with PR22-DDC
Reservoir/Pump Combo.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied only to
products that pass the design and hardcore enthusiast standards that a true LCS
chassis should hold to. The Tt LCS certification was created so that we at
Thermaltake can indicate to all power users which chassis have been tested to be
best compatible with extreme liquid cooling configurations, ensuring you get the
best performance from the best features and fitment.
DRIVEN PERFORMANCE

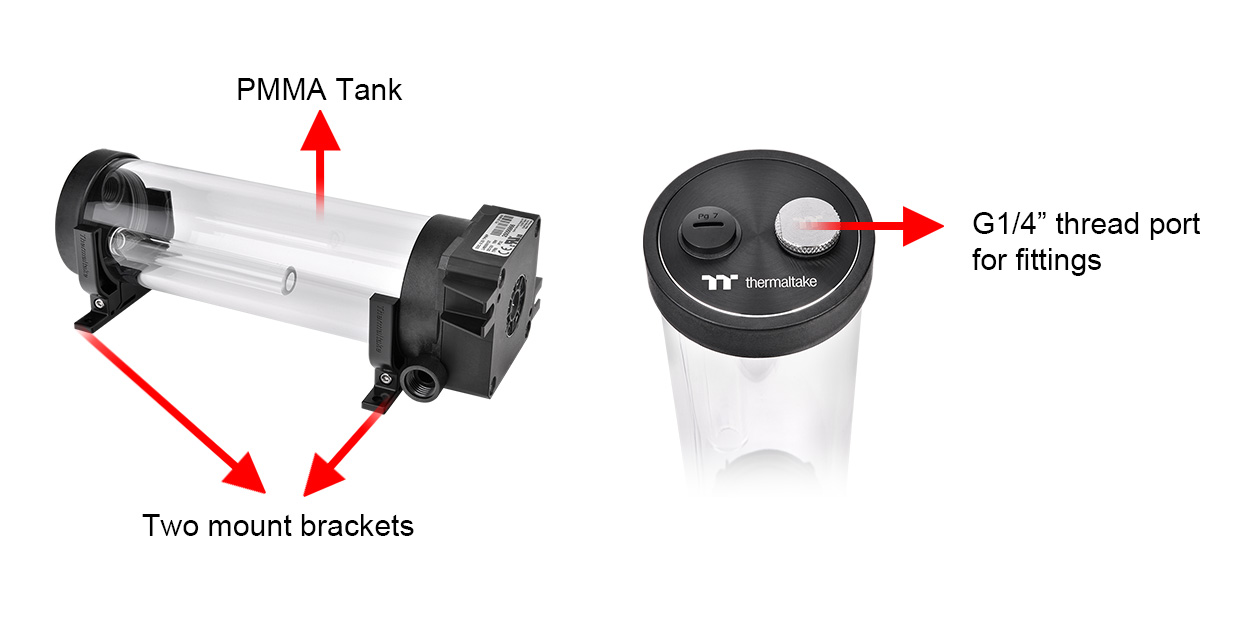

Made in Taiwan, PR22-DDC top cap supports rubber washers for a proper seal,
including two predrilled G1/4 ports for fittings. Featuring 6mm thick of the
pipe wall, PR22-DDC can sustain the maximum pressure up to 21.75 PSI (Pounds per
square inch). Also, users can easily open out the top cap, cleaning the
reservoir thoroughly.

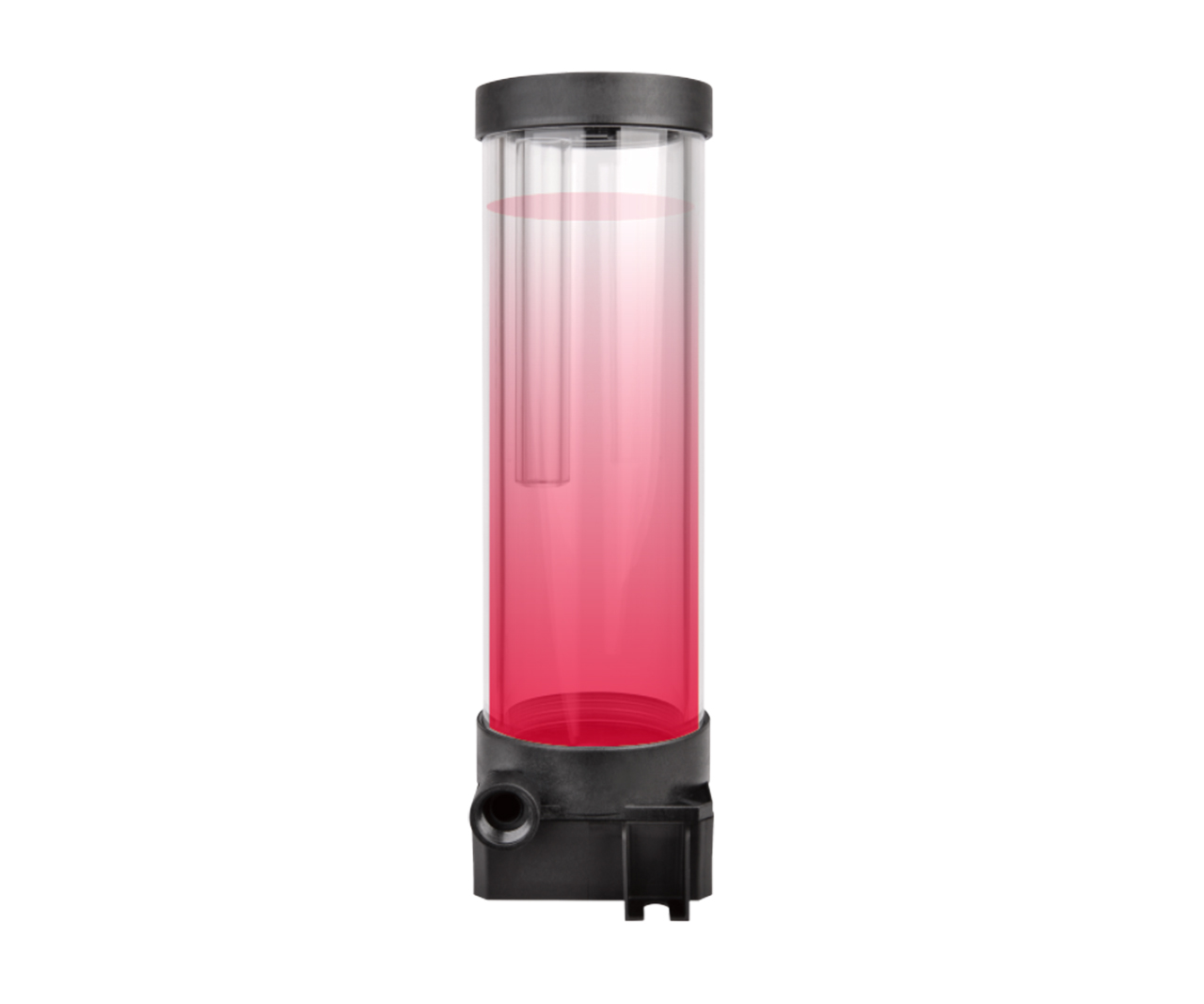

HEAT-RESISTANT ACRYLIC TANK
PR22-DDC is made of reliable, light weighted PPS and PMMA construction, which
is crystal clear and highly durable. High quality acrylic (PMMA) tube maximum
working temperature: 131 (55).
EASY AND FLEXIBLE APPLICATION
Along with two brackets connected to both ends, PR22-DDC is solid hold inside
the chassis and allows enthusiasts to build up superior water cooling system
from an aesthetic standpoint and incorporate externally-modular upgrades for
their chassis. The Pacific PR22-DDC can be installed either horizontally or
vertically, making the chassis out of the ordinary!
Specifications
|
P/N |
CL-W250-PL00BL-A |
|
DIMENSION
(S) |
86.5 (L) x 62 (W) x
210.1 (H) |
|
MATERIAL |
PPS +
PMMA |
|
CAPACITY |
300
ml |
|
PUMP
SPEED |
4600
RPM |
|
MAXIMUM
HEAD |
23 feet
(7m) |
|
MAXIMUM FLOW
RATE |
522.38
L/h |
|
MAXIMUM
PRESSURE |
21.75
PSI |
|
INPUT
VOLTAGE |
12
V |
|
CONNECTOR |
4
Pin |
|
POWER
INPUT |
20
W |
|
SCREW
THREAD |
G
1/4 |
|

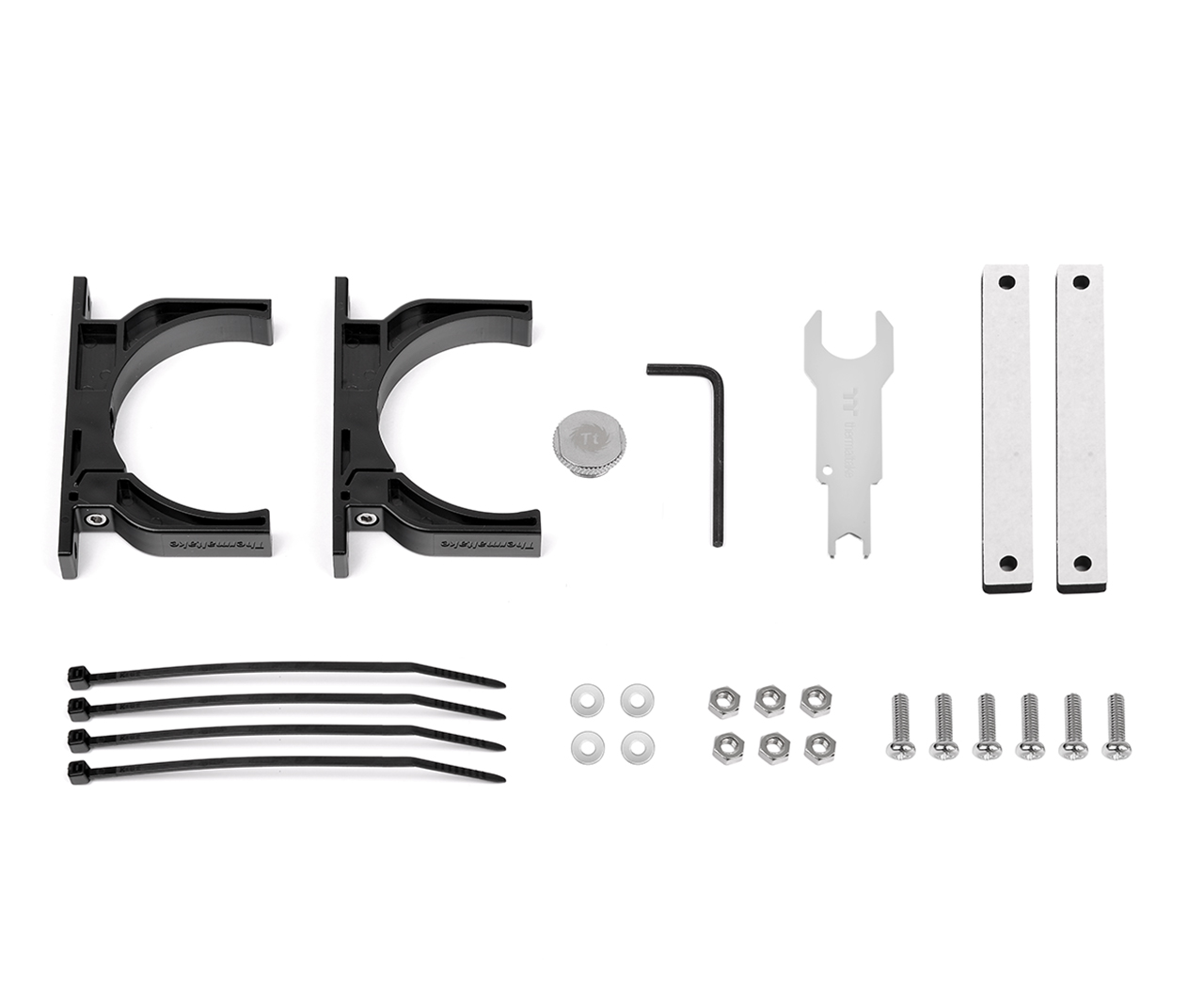

PARTS |
1. Stopper *1 (G 1/4
) |
|
2. Bracket
*2 |
