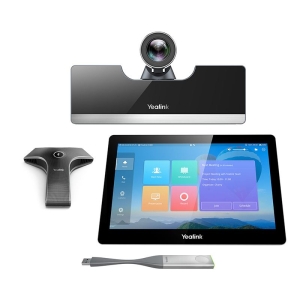

Yealink VC500 (VCM/CTP/WP) Video Conference Systems
Details
Yealink VC500 is ideally designed to ensure everyone to have an immervise
communication in the workspace. Equipped with the 5xoptical zoom PTZ camera, it
supports 1080P/60FPS video calls to make your business discussion be as
life-like and interactive as possible. It possesses an all-in-one design and the
first-class video and audio technology that create an easier and more effective
collaboration experience. As the newest generation of Yealink VC series video
conferencing endpoints, the VC500 adopts an intuitive user interface that makes
meeting control simpler. Featuring H.265/HEVC and Opus, this new release
facilitates more immersive audio-visual collaboration. By leveraging Yealink
Meeting Server (YMS), the VC500 seamlessly supports Meeting Scheduling and
One-touch Meeting Access. All combine to make VC500 one of the perfect solution
for the small-to-medium meeting rooms.
Features
Package Includes
- VC500 Pro Codec
- CTP20 collocation touch panel
- one VCM34 array microphone
- WPP20
- WF50 Wi-Fi dongle
- VCR11 remote control
- power adapter and cables
- 1080P/60FPS and 5x optical PTZ camera
- 83 horizontal field of view
- H.265/HEVC video codec, 1080P from 512Kbps bandwidth
- Super packet loss recovery technology (video resistant up to 30% and audio
resistant up to 80%)
- Two HDMI output and two HD content input (HDMI + Mini-DP)
- Supports wireless content sharing
- Two audio options: a pair of wireless microphones or one microphone
array
- Supports collaboration features (interoperable with whiteboard and
annotation on content sharing)
- Deeply integrate with leading cloud platforms: Yealink Cloud Management
Service (VCMS), Yealink Meeting Server, StarLeaf, Pexip, Zoom, BlueJeans,
EasyMeet, Videxio
Specifications
Full-HD PTZ Camera
- 1920 x 1080 video resolution
- 60 frame rate
- 5x optical zoom PTZ camera
- Horizontal field of view: 83
- Vertical field of view: 52
- Pan angel range: +/- 30
- Tilt angel range: +/- 20
- Beauty shot
Video Standard and Network Suitability
- Video codecs: H.265/HEVC, H.264 High Profile, H.264, H.263,
H.263+
- Forward Error Correction (FEC)
- Anti 30% video packet loss
- Bandwidth dynamic adaptive adjustment
- Shared content and audio preference strategy
- Bandwidth/protocol/ auto adaptive
Audio Features
- Audio codecs:
- - ARES
- - Opus, 8~48kHz sampling rate
- - 14kHz bandwidth with G.722.1C
- - 7kHz bandwidth with G.722.1
- - 3.4kHz bandwidth with G.711 (PCMA/PCMU)
- Audio technology:
- - Acoustic echo cancellation
- - Automatic gain control
- - Yealink Noise Proof Technology
- - CNG, PLC, AJB, De-Rerb
Collaboration Touch Panel CTP20
(VC500-VCM-CTP)
- 13.3 inch IPS FHD 1080P capacitive touch screen
- Supports active pressure capacitance touch pen
Video Conferencing Microphone Array VCM34
(VC500-VCM-CTP)
- Built-in 3-microphone array
- 20ft/360 voice pickup range
- Up to 4 VCM34 in one system
CPW90 Wireless Microphone KIT (VC500-Mic)
- DECT Technology
- 800mAh battery capacity
- 24-hour talking time
- 7-day standby time
- Indoor range: 50m
- Outdoor Range: 300m (in ideal conditions)
- 10-foot (3-meter) 360 voice pickup
- Mute the microphone with touchpad
Call Features
- 1080p60 people + 1080P30 content sharing video quality
- Video Layout: Picture-in-picture (PIP)
- Video/audio recording and playback
- Dual displays and focus feature
- Screenshots in USB flash drive
- Group dial
- YMS meeting control:
- - invite/remove
- - mute/unmute participates
- - lock
- DND (do not disturb), call statistics
- Auto answer, mute, and call waiting
- Virtual keyboard
- Local directory: 500 entries
- Call history: all/missed/received/dialed
- LDAP phonebook
- Multi-language support
- Additional five-way audio call
Standard Communication Protocol
- H.323/SIP
- Dual stream protocol: H.239 (H.323)/BFCP (SIP)
- FECC: H.224/H.281, Sony VISCA and PELCO D/P
- H.323 protocol suite: H.245, H.225, H.235, H.241
- Gatekeeper account and SIP account
Compatible Cloud Platforms
- Yealink Cloud Management Service
- Yealink Meeting Server
- StarLeaf/UC OpenCloud, supports QCP code
- Pexip/Zoom/BlueJeans/EasyMeet/Videxio
Network and Security Features
- IPv4 and IPv6, DHCP/static IP
- HTTP/HTTPS web server
- RS232/HTTP API for control system integration
- SRTP/TLS, AES 256-bit encryption
- QoS: 802.1p/q, Diff-serv
- VLAN, IEEE802.1X, LLDP-MED
- Anti-attack
- Network diagnosis: Ping, trace route
- Time and date synchronization using SNTP
- Built-in certificate
NAT and Firewall Traversal
- ICE/TURN/STUN
- H.460
- NAT (manual/auto mode)
- Yealink intelligent firewall traversal
- Open VPN
Configuration Management
- Configuration via browser/display/CTP20/auto-provisioning
- Virtual remote control
- Firmware upgrading, factory resetting
- Export or import configuration
- System log exporting
VC500 Codec Connections
- 2 x HDMI output
- 1 x Yealink extension port (RJ-45) connect to VCH50/VCM34
- 1 x 10/100/1000M Ethernet port
- 2 x USB 2.0
- 1 x Power port
- 1 x Security lock slot
- 1 x Reset slot
VCH50 Connections
- 1 x RJ45 port connect to VC500 codec
- 1 x RJ45 port connect to VCM34
- 1 x HDMI input for content sharing (with audio)
- 1 x Mini-DP input for content sharing (with audio)
- 1x USB 2.0 for recording
Other Physical Features
- Color: Space Silver
- External Yealink Power Adapter: AC 100~240V input and DC 48V/0.7A
Output
- Wall/TV mounted shelf with screws
- Power consumption (PSU): Idle7.8W, normal operating: 8W; MAX:
11.8W
- USB Output: 5V 1A
- Dimension (W.D.H):
- VC500 codec: 300 mm x 99 mm x 165.3 mm
- CTP20: 321.5 mm x 118 mm x 196 mm
- VCM34: 169 mm x 171.5 mm x 37.5 mm
- CPW90: 86 mm x 86 mm x 86 mm
- VCR11: 190 mm x 55 mm x 24 mm
- Operating humidity: 10~95%
- Operating temperature: 0~40C
- Storage temperature: -30~70C
Package Features
- N.W/CTN: 6.6 kg
- G.W/CTN: 7.8 kg
- Giftbox size: 385mm x 290mm x 245mm
