All stock codes associated to this product
CLW265CU00GDA, CL-W265-CU00GD-A
Thermaltake Pacific G1/4 PETG Tube 16mm OD Compression -
Gold
Design
The Pacific C-Pro Series is a revolution in fitment design. It simplifies the
process of setting up a liquid-cooling loop and provides a seal that outperforms
traditional compression fittings. By using 4 preinstalled O-rings and an
overhauled design, the C-Pro Series is the new standard in fitment technology
and it is exclusive to Thermaltake.
TT Premium
To continue achieving the corporate mission of delivering the perfect user
experience, Thermaltake developed TT Premium with the essence of combining
supreme quality products with a new logo design. TT Premium is far more than
just a guarantee of quality. Behind the name, it represents the passion in DIY,
Modding and Thermaltakes desire to be the most innovative brand in the PC
hardware market. To satisfy the demand of the high-end PC users, TT Premium
follows its core values of Excellent Quality, Unique Design, Diverse
Combinations and Boundless Creativity to provide a high-performance PC product
for every enthusiast.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied only to
products that pass the design and hardcore enthusiast standards that a true LCS
chassis should hold to. The Tt LCS certification was created so that we at
Thermaltake can indicate to all power users which chassis have been tested to be
best compatible with extreme liquid cooling configurations, ensuring you get the
best performance from the best features and fitment.
High-Flow and Leak-free Design
The C-Pro Series compression fittings are custom made for simplify the
installation of PETG tubing. They are designed to work in tight spaces without
compromising the compression seal or impacting the flow of coolant. The C-Pro
range also features four rubber O-rings instead of the traditional two, this
creates a more secure seal and more reliable performance.
For tubes:

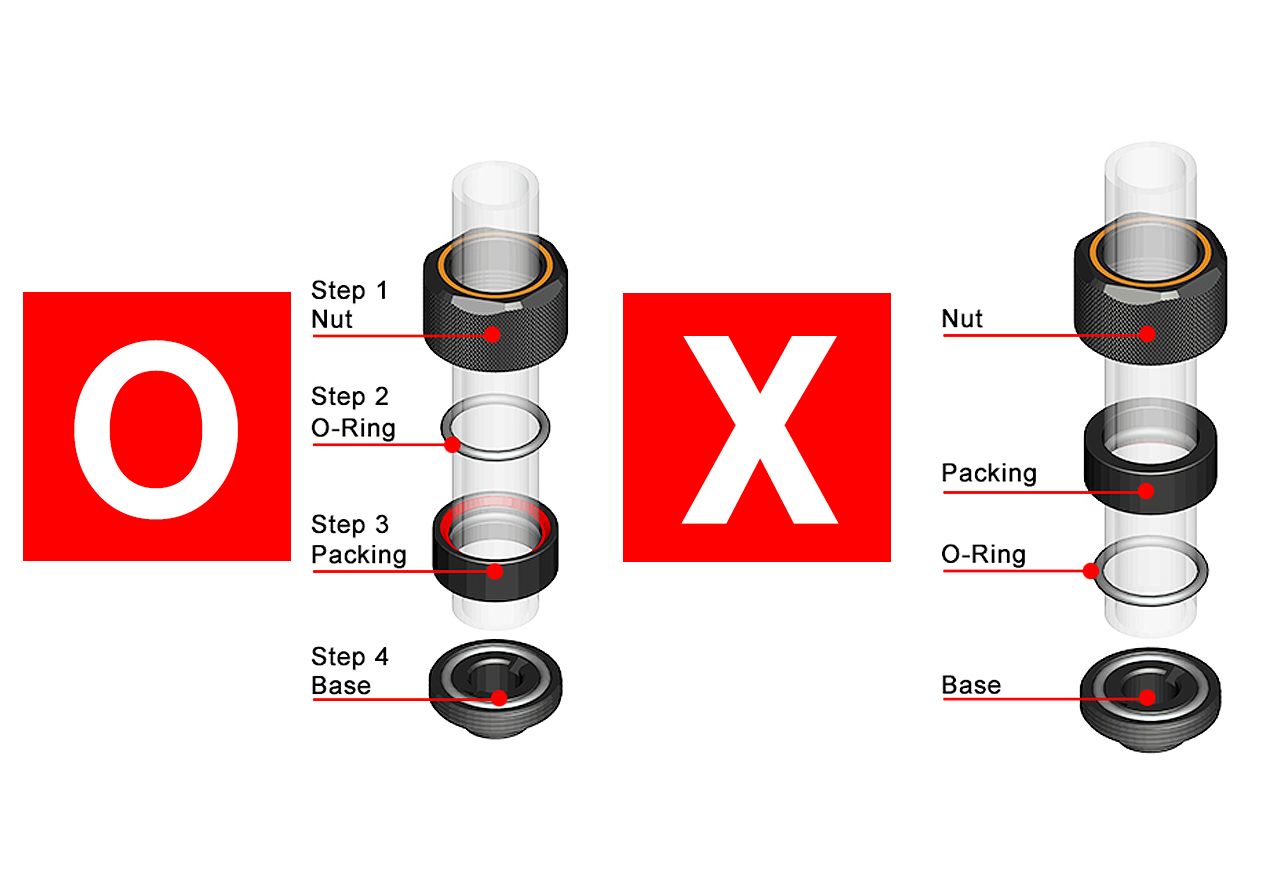

Thermaltake Pacific C-Pro PETG Fittings Installation
Guide
Step 1. Slide the compression nut over the tube
Step 2. Install the o-ring
Step 3. Install the packing
Step 4. Install the fitting base on your components
Step 5. Tighten the compression nut
Specifications
|
P/N |
CL-W265-CU00GD-A |
|
MODEL |
Pacific C-Pro G1/4 PETG
16mm OD Compression - Gold |
|
DIMENSION |
D26 x 21 (H)
(mm) |
|
WEIGHT |
30
g |
|
MATERIAL |
CU +
AL |
|
NOTE |
PETG Tube to
G1/4 |
|
APPLICABLE |
OD : 16
mm |
|
SCREW
THREAD |
G
1/4 |
