All stock codes associated to this product
SFB-Licence-key-EVC350-EVC950, SFBLicencekeyEVC350EVC950
Aver EVC350 4-site Embedded MCU License Upgrade to 6, 8 and 10
Points
Overview
Perfect for any budget, the EVC350 is AVers affordable, 4-site, high
performance MCU video conferencing system. This all-in-one video conferencing
solution allows organizations to start conferencing immediately, with no
installation fees or costly upgrades. Our patented, intelligent microphones can
be linked together to form a daisy chain so you can enjoy great audio reception
in any size of conference room. All your important meetings can be recorded
directly to a USB flash drive, even when you are offline. Moreover, you can use
the EVC350 with AVers EZDraw collaborative annotation app to access to an
impressive array of interactive tools. Users can also connect to the EVC350 from
PCs, laptops, tablets and smart phones via AVers EZMeetup software. All these
great features make the EVC350 the perfect communication solution.

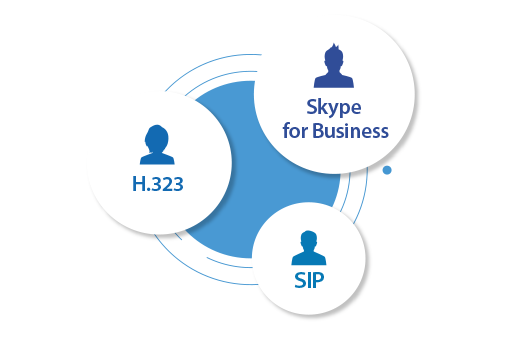

Break Your Communication Barriers with Simultaneous Skype for
Business, H.323, and SIP Support
Prepare your video conferencing experience for Tri-Protocol Integration for
the AVer EVC Series! Get exclusive Multipoint connections between three
protocols and expand your global communication capabilities. (License upgrade
required).
License upgrade to 6, 8 or 10 points
EVC350 users can take advantage of our new license upgrade program to expand
from up to 4 point communication to up to 10 points. By simply entering the
license key you can conveniently upgrade your EVC350 and meet your companys
growing communication requirements.
Full HD 1080p video & content sharing
Our EVC350 supports conferencing on up to 4 different sites at full HD 1080p
resolution. Its cost-effective embedded MCU offers smooth video along with
content sharing, and is the ideal solution for those who want to start video
conferencing today.
PTZ camera with 18X total zoom
The EVC350s powerful full HD PTZ camera offers 12X optical zoom plus 1.5X
digital zoom, as well as +/-130 pan and +90/-25 tilt, quick auto-focus and clear
close-ups of participants, making it ideal for any size of conference room.

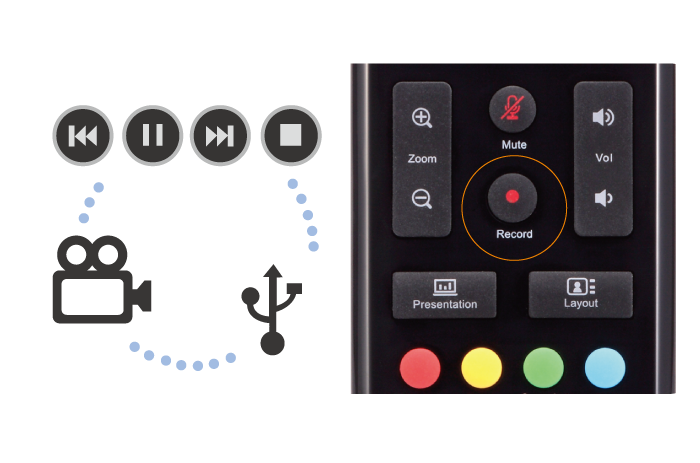

One-touch recording
Record your video conferences- including video, audio and shared content-
directly to a USB flash drive, creating video archives that help avoid
post-meeting information loss. Play back recorded meetings on your EVC350 or on
your PC using AVers VCPlayer software.

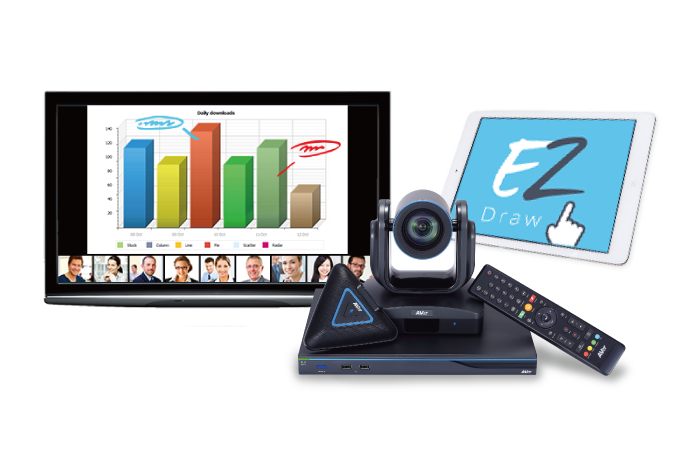

Annotate anytime & anyplace
Using the EVC350 with AVers EZDraw collaborative annotation app opens up
powerful business communication possibilities. Users at different sites can
write text, make highlights or draw on the same document, providing an ideal
solution for improving the flow of discussions and achieving better mutual
understanding.
Connect whenever & wherever you need
The EVC350 can connect up to 4 sites no matter where they are via AVers
EZMeetup mobility software. EZMeetup makes it possible to join video conferences
from PCs, laptops, mobile phones and tablets, so all participants can join in
important meetings with smooth video and clear audio from nearly any
location.
Specifications
Package Contents
- Main system unit (codec)
- The New eCam PTZ camera
- EVC microphone array
- IR remote control
- Power supply (12V/5A)
- VGA cable (3M)
- Power cord (1.8M)
- Camera cable (3M)
- Microphone cable (5M)
- Network cable (3M)
- HDMI cable (3M)
- Warranty card
- Quick guide
Communications
- H.323, SIP standards, SIP TLS
- 64Kbps~4Mbps
- RJ45 network LAN (10/100/1000)
- Manual bandwidth settings
Camera/New eCam PTZ:
- Pan/Tilt/Zoom camera
- 2-megapixel CMOS sensor
- 18X total zoom
- +/-130 pan; +90/-25 tilt
- Field of view (H): 72
- Field of view (V): 43
- Field of view (Diagonal): 82
People Video Resolutions
- HD1080p (1920 x 1080)
- HD720p (1280 x 720)
- 480p (848 x 480)
- 4CIF (704 x 576)
- CIF (352 x 288)
- SIF (352 x 240)
- All resolutions at 30fps
Content Video Resolutions
- Supported resolutions:
- HD1080p (1920 x 1080)
- WXGA+ (1680 x 1050)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD720p (1280 x 720)
- XGA (1024 x 768)
- SVGA (800 x 600)
- D1 (720 x 480)
- VGA (640 x 480)
- Output resolutions:
- HD1080p (1920 x 1080) up to 30fps
Video Standards
- H.264, H.264 HP, H.264 SVC, H.263+, H.263, H.261
- H.239 dual video streams
- BFCP content sharing
Video Features
Video Inputs
- EVC new eCam camera
- VGA
- DVI (HDMI)
Video Outputs
Audio Standards
- G.711, G.722, G.728, G.722.1, G.722.1C, AAC-LD
Audio Features
- Automatic gain control (AGC)
- Advanced noise reduction
- Acoustic echo cancellation (AEC)
Audio Inputs
- EVC microphone daisy chain up to 4
- DVI (HDMI)
- Line-in (3.5 mm)
Audio Outputs
Other Supported Standards
- H.224, H.225, H.245, H.281, H.323 Annex Q, H.460
- SRTP
User Interface
- Multiple layout styles
- User-friendly OSD (supports 23 languages: English, Traditional Chinese,
Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian,
Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Romanian,
Russian, Spanish, Swedish, Thai, Turkish, Vietnamese)
- Display/edit site name
Network
- 10/100/1000Mbps
- NAT/firewall traversal
- High Efficiency Lost Packet Recovery (HELPeR)
- API support via Telnet
- Wake-on-LAN (WOL) support
- IPv4 and IPv6 support
- Network Test
- QoS
Security
- AES (Advanced Encryption Standard) function (128-bit)
- Password protection for system settings
- Password protection for remote system management
Web Management Tool
- Remote management
- Live monitoring
- Firmware update
- Phonebook download/upload/edit
- Restore system settings
- Export call history
Value-Added Features
- Meeting recording
- In meeting and offline recording
- save directly to USB flash drive
- supports screen re-layout during playback
- playback and file conversion via VCPlayer software (.mov/.mp4
format)
- EZmeetup software/App
- 30-day for free trial
- Connect with H.264 video codec
- Receive resolution up to full HD 1080p 30fps
- Transmit resolution up to full HD 1080p 30fps
- Compatible with firmware later than 10.06
- Support content sharing, capture and recording
- EZDraw App
- Compatible with EVC multipoint systems
- Import .JPG, .PNG, .GIF, and .BMP files
- Export .PNG files
- Maximum of 10 tablets can be connected
- Speed dialing via hot keys (10 sets)
- Camera presets (100 positions)
- Network Time Protocol (NTP)
- License upgrade to 6, 8, 10 points
- ScreenShare support
- VCLink support
- SnapShot
- Group Calling
- Supports SIP voice calls
Power Supply
- AC 100V~240V, 50/60Hz
- Consumption: EIAJ 12V, 5A
Environmental Data
- Operation temperature: 0C~40C
- Operation humidity: 20%~80%
- Storage temperature: -20C~60C
- Storage humidity: 20%~80%
Physical Characteristics
- Package dimensions: 376 x 300 x 243 mm
- Package weight: 6.99kg (15.41lbs)
- Main system (codec): 320 x 262.7 x 37.2 mm
- New eCam PTZ camera: 180 x 144 x 184 mm
- EVC microphone array: 131.9 x 118.6 x 25.5 mm
Mobility software EZMeetup (optional)
Supported devices:
- Windows and Mac OS
- iOS, Android phones and tablets
- Windows 8 tablets
Other features:
- Connect with H.264 and H.263+
- Receive resolution up to full HD 1080p 30fps
- Transmit resolution up to full HD 1080p 30fps
- Compatible with EVC300/EVC900
- Support content sharing
Warranty
