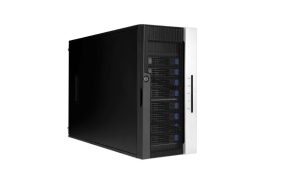

Inwin IW-MS08-A 8-Bay Mini Server Tower - Support 500W
  • 2.5"/3.5" hot-swap trays(8), 3.5" floppy drive, 2.5" drive trays(2), USB3.0(2), PWM FaN, SECC, 80Plus Gold, PCIe(4), m-ATX, mini-ITX

IMG 1 of 1
Our Price:
$884.25
or quickly purchase this product
Backorder
Part Number:
454965
(?) Brand:
Inwin
Manuf No:
MS08-A-300W REDUNDANT-SATA12G
MS08A300W REDUNDANTSATA12G
Shipping Weight:
12.25 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
MS08A300WREDUNDANTSATA12G, MS08-A-300W REDUNDANT-SATA12G, 4616872

Inwin IW-MS08-A 8-Bay Mini Server Tower - 300W



Overview

  • Compatible with the micro-ATX and mini-ITX motherboard
  • Supports maximum 10 x 2.5" hot-swap SSD drives (including 2 x 2.5" internal HDD)
  • File server and NAS devices usage
  • Supports 4 x full-height PCIe slots
  • High-efficiency 80 Plus Gold level redundant power supplies
  • Supports maximum 4 x 80mm fans for excellent thermal performance
  • Supports magnetic lock in the front bezel for hardware security

Specifications

M/B Form Factor

Micro-ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")

Drive Bay

External: Slim ODD x 1, 2.5"/3.5" hot-swap trays x 8, 3.5" floppy drive x 1

Internal: 2 x 2.5" drive trays

Power Supply

Supports:

1U redundant PSU, 80 Plus Gold 300W

Indicator

Power LED, LAN1/LAN2/LED, System LED, ID LED, HDD LED

Front Control Panel

Power on/off, Reset, USB3.0 x 2

Backplane

Mini-SAS HD, SFF-8643 (12Gb/s x 2 without expander)

Cooling Fan

Supports:

Middle: 80 x 25mm PWM fan x 2, 4500RPM

Rear: 80 x 25mm PWM fan x 2, 3800RPM

Expansion Slot

Full-height PCIe slots x 4

Material

Material: SECC

Thickness: 1.0mm

Product Dimensions (DxWxH; Chassis Only)

480.3 x 169.95 x 339.95

(18.91 x 6.69 x 13.38)

Package Dimensions (DxWxH)

630 x 450 x 310mm

Weight (Chassis Only)

Net weight: 10.08kg

Gross weight: 12.25kg

Cubic Feet

3.1

Container Information

Single packing with pallets:

20': 240pcs

40': 504pcs

40' HQ: 588pcs

12Gb/s Backplane Specifications

Backplane

3.5" HDD 4-bay backplane with SAS/SATA 4 port module

Dimension (W x H)

111.5mm x 111.5mm

Backplane Type

Passive

Host Interface

SFF-8643 x 2

HDD Interface

SAS/SATA 3.5" x 8
