All stock codes associated to this product
CAH510BW1, CA-H510B-W1, 4789916, 5060301695065

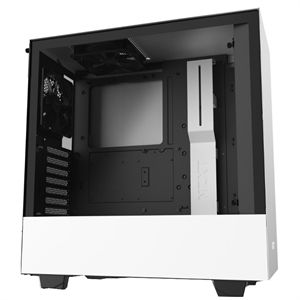

NZXT H510 Compact Mid-Tower Case with Tempered Glass - Matte
White
Overview
Weve made our iconic H Series PC cases even better. Our new lineup still
features the elements builders loved in the original H Series, including our
patented cable management system, removable fan/radiator mounting brackets, and
easy-to-use drive trays, alongside new updates like a front-panel USB-C
connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side
panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on
the H510i.
- With a USB 3.1 Gen2-compatible USB-C connector on the front panel, its
easier than ever to connect smartphones, high-speed external storage, or the
latest peripherals to your PC
- The clean, modern design, iconic cable management bar, and uninterrupted
tempered-glass side panel showcase your stunning build.
- Cable management can often take more time than assembly. We designed a
cable routing kit with pre-installed channels and straps, for intuitive and
easy wiring.
- Two Aer F120mm fans* are included for optimal internal airflow and the
front panel and PSU intakes include removable filters. Includes a removeable
bracket designed for radiators up to 280mm simplifies the installation of
either closed-loop or custom-loop water cooling.
*Case version fans and specs vary from retail version
Specifications
|
Dimensions |
W: 210mm H: 435mm D:
428mm (without feet) |
|
W: 210mm H: 460mm D:
428mm (with feet) |
|
Material(s) |
SGCC Steel, Tempered
Glass |
|
Weight |
6.6
kg |
|
Motherboard
Support |
Mini-ITX, MicroATX, and
ATX |
|
Front I/O
Ports |
H510: |
|
1x USB 3.1 Gen 2
Type-C |
|
1x USB 3.1 Gen 1
Type-A |
|
1x Headset audio
Jack |
|
H511 (*SI
only): |
|
2x USB 3.1 Gen 1
Type-A |
|
1x Headset audio
Jack |
|
Front I/O internal
header |
|
1x USB 3.1 Gen 2
Internal Header |
|
1x USB 3.1 Gen 1
Internal Header |
|
1x HD Audio
Header |
|
Filters |
All Air
Intakes |
|
Included
Accessories |
Installation
screws |
|
10x Cable
ties |
|
1x Headset Audio Jack
splitter (4 pole to 3 pole) |
|
Drive
Bays |
2.5:
2+1 |
|
3.5:
2+1 |
|
Expansion
Slots |
7 |
|
Radiator
Support |
Front: 2x 140 or 2x
120mm with Pull |
|
Rear: 1x
120mm |
|
Fan
Support |
Front: 2 x 120/ 2 x
140mm |
|
Top: 1x 120mm/ 1x 140mm
(1 Aer F120 Case Version included) |
|
Rear: 1x 120mm (1 Aer
F120 Case Version included) |
|
Fan
Specs |
Aer F120 (Case
Version) |
|
Speed: 1200 200
RPM |
|
Airflow: 50.42
CFM |
|
Noise: 28
dBA |
|
Bearing: Rifle
Bearing |
|
Clearance |
Cable Management:
19-23mm |
|
GPU Clearance: Up to
381mm w/o front watercooler installed, up to 325mm with front watercooler
installed |
|
CPU Cooler: Up to
165mm |
|
Front Radiator:
60mm |
|
Rear Radiator:
60mm |
|
Reservoir & Pump:
Up to 180mm (Along cable bar), Up to 86mm (Along bottom
panel) |
|
Warranty |
2
Years |
|
Model
Number |
CA-H510B-W1 |
|
EAN |
5060301695065 |
|
UPC |
815671014764 |
