All stock codes associated to this product
MCBB400LKGNNS00, MCB-B400L-KGNN-S00, 4833708, 4719512097656

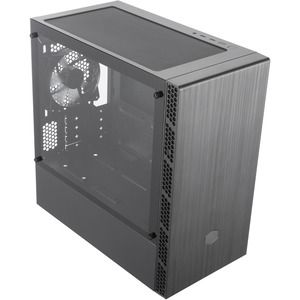

Coolermaster Masterbox MB400L Without ODD Case - Black
Overview
SENSIBLE BY DESIGN
- Brushed Front Panel
- Hexagon Gleam
- Mesh Intakes
- With/Without ODD Support
- Adaptable Drive Cage
- Versatile Cooling Options
- Room For Upgrades
BRUSHED FRONT PANEL
A brushed finish spans the entire front panel for an elegant and minimalistic
design.
HEXAGON GLEAM
If an optional, illuminated fan is installed, the Cooler Master hexagon logo
will capture light from the fan and emit a glow on the front
panel.
MESH INTAKES
Large, mesh intakes span each side of the front panel to provide additional
airflow to system.
WITH/WITHOUT ODD SUPPORT
Depending on preference, an ODD version of the chassis is available. If an
ODD is not preferred, a cleaner appearance and more cooling options on the top
and front panels are supported.
ADAPTABLE DRIVE CAGE
The drive cage is (re)movable, able to shift toward the front to accommodate
for PSU space, backwards to provide additional radiator space, or even
completely removed.
VERSATILE COOLING OPTIONS
Support for up to six fans and front, top, and rear radiator support ensure
that performance is not compromised.
ROOM FOR UPGRADES
Support for up to a 344mm graphics card, a 166mm CPU cooler, and up to a
325mm PSU in length provides room for upgrades to stay ahead of the
game.
Specifications
|
MODEL
NUMBER |
MCB-B400L-KGNN-S00 |
|
SERIES |
MasterBox
Series |
|
SIZE |
Mini
Tower |
|
AVAILABLE
COLOR(S) |
Black |
|
MATERIALS |
Steel,
Plastic |
|
DIMENSIONS (L X W X
H) |
411 x 218 x 410mm (TG
Incl. Protrusions), 396 x 210 x 400mm (Excl.
Protrusions) |
|
WEIGHT |
5.47kg |
|
MOTHERBOARD
SUPPORT |
Micro ATX, Mini
ITX |
|
EXPANSION
SLOTS |
4 |
|
5.25" DRIVE
BAYS |
0 |
|
3.5" DRIVE
BAYS |
2 |
|
2.5" DRIVE
BAYS |
2 |
|
I/O
PANEL |
2x USB 3.2 Gen 1
(formerly USB 3.0), 1x 3.5mm Headset Jack (Audio+Mic) |
|
PRE-INSTALLED FANS -
TOP |
N/A |
|
PRE-INSTALLED FANS -
FRONT |
N/A |
|
PRE-INSTALLED FANS -
REAR |
1x 120mm
(Black) |
|
FAN SUPPORT -
TOP |
2x
120/140mm |
|
FAN SUPPORT -
FRONT |
3x 120mm, 2x
140mm |
|
FAN SUPPORT -
REAR |
1x
120mm |
|
RADIATOR SUPPORT -
TOP |
120mm,
240mm |
|
RADIATOR SUPPORT -
FRONT |
120mm, 140mm, 240mm,
280mm |
|
RADIATOR SUPPORT -
REAR |
120mm |
|
CLEARANCE - CPU
COOLER |
TG:
166mm |
|
CLEARANCE -
PSU |
140mm (HDD cage in
backmost position), 325mm (w/o front radiator & HDD
cage) |
|
CLEARANCE -
GFX |
344mm |
|
CABLE
ROUTING |
18-22mm |
|
DUST
FILTERS |
Top, Front,
Bottom |
|
POWER SUPPLY
SUPPORT |
Bottom mount,
ATX |
|
WARRANTY |
2
years |
|
EAN
CODE |
4719512097656 |
|
UPC
CODE |
884102069956 |
