Yealink CP960-Skype for Business Edition
Overview
Optima HD IP Conference Phone Compatible with Microsoft Skype for
Business

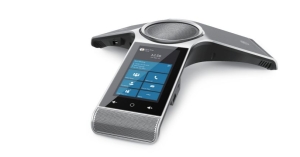

The Yealink CP960, compatible with Microsoft Skype for Business, is an
enterprise-grade conference phone, bringing the Skype for Business experience
and functionality from the desktop to the conference room. Based on Android OS,
the CP960 not only unceasingly boosts the user experience, but also strikes an
exquisite balance between simplicity and sophistication with Skype for Business
user-interface. Delivering unparalleled audio clarity, the CP960 is armed with
Yealinks Optima HD Voice technology and SILK speech codec, that phone users will
think they are sitting in the same room with one another. Besides, Pairing
Yealink CP960 with your smartphone via Bluetooth or with your PC/tablet via USB
Micro-B port allows you to turn the Yealink CP960 into a loudspeaker or
microphone with ease as well as enjoy the superb HD communication. Also, CP960
enhances your office productivity by supporting multi phone functions, including
Skype for Business conference, calendar, CAP, hot desking, Boss/Admin.
Key Features and Benefits
HD audio
The Yealink CP960 conference phone combines the hardware and software,
including the Yealink Noise Proof Technology, to fully improve its audio
quality. Thanks to its built-in 3-microphone array, CP960 owns a 20-foot
(6-meter) and 360-degree voice pickup range, regarding as an ideal solution for
any conference room that needs best audio experience, as if all participants are
sitting across the table from each other! In addition, through two add-on CP
Wireless Expansion Mic CPW90, the Yealink CP960 provides long audio-capture
distance at a radius of up to 20 meters without any wiring troubles without any
wiring troubles.
Easy to use
The 5-inch multi-touch screen and the Skype for Business interface provide
for a rich visual presentation and easy menu navigation. The CP960 is fully
compatible with Skype for Business and Office 365, making for a rich and capable
ecosystem for team environment. Simply sign in with your Skype for Business
account; your presence status and contacts immediately sync with the SFB client.
The CP960 even lets users synchronize Outlook Calendar meeting schedules in
real-time- join a meeting with just a tap.
Ease of deployment
Supporting Microsofts Skype for Business Server in-band provisioning and
in-band configuration management enables a carefree configuration and
easier-than-ever mass deployment. Automatically deployed on a variety of
servers- http, https, tftp and ftp, Yealink CP960 can even be pre-installed with
Yealinks premium software for Skype for Business prior to shipping, meaning
plug-and-play for customers immediately after unboxing.
- Optimal HD audio, full duplex technology
- Yealink Noise Proof Technology
- 20-foot (6-meter),
- 360-degree microphone pickup range
- Built-in Bluetooth 4.0
- 5 720x1280 multi-touch screen
- Compatible with Office 365
- Skype for Buisness Conference
- Presence status
- Calendar
- Boss/Admin
- Common Area Phone
- Hot desking
- SILK speech codec
- QoE (monitoring reports)
- Connect to PC via USB Micro-B port
Specifications
Audio features
- Optimal HD audio
- Yealink Noise Proof Technology
- 20-foot (6-meter) microphone pickup range
- Apply to medium to large conference room
- Built-in 3-microphone array, 360-degree voice pickup
- 56mm diameter and 10w speaker
- Full-duplex speakerphone with AEC
- Echo cancellation tail length is up to 320ms
- Background noise suppression
- Codecs: SILK, G.722, G.723, G.723, G.729, G.726, iLBC,
- G.711(A/)
- DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
Directory
- Contacts synchronize with client
- View SfB contacts and their current presence status
- Support local contacts
- Support global search, compatible with exchange
- Intelligent search
- Call history: placed/received/missed/forwarded
Signing into Skype for Business
- Sign in: User Credentials/PIN Authentication
- Signing in via phone user interface
- Web Sign-in
- Signing in via BToE
Phone features
- Presence status synchronize with client
- Reset presence status, Privacy mode
- Phone lock
- Call hold, call waiting, call merge, mute
- Call forward, call transfer, call park
- E911, branch office, response group, private line
- Dial plan, SfB conferencing (Microsoft CCCP)
- Group call pickup (GCP), Common Area Phone (CAP)
- Hotline, Boss/Admin function
- Calendar support
- Hot-desking, call recording
- Connect to PC via USB Micro-B port
- Bluetooth
Display
- 5" 720x1280 capacitive touch screen
- Volume key
- Home button
Interface
- 1 x RJ45 10/100M Ethernet port
- Built-in Wi-Fi (2.4GHz/5GHz, 802.11a/b/g/n/ac)
- Built-in Bluetooth 4.0
- Power over Ethernet (IEEE 802.3af ), class 4
- 2 x Wired MIC port
- 2 x USB 2.0 port
- 1 x 3.5mm audio-out port
- 1 x USB 2.0 Micro-B device port
- 1 x Security slot
Network and security
- SIP v1 (RFC2543), v2 (RFC3261)
- LLDP-MED VLAN management
- IPv4/IPv6
- Proxy mode and peer-to-peer SIP link mode
- IP Assignment: Static/DHCP/PPPoE
- DNS Assignment: Static/DHCP
- HTTP/HTTPS web server
- Time and date synchronization using SNTP
- UDP/TCP/DNS-SRV (RFC 3263)
- QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS, DSCP
- SRTP for voice
- Transport Layer Security (TLS)
- EWS authentication
- HTTPS certificate manager
- Digest authentication using MD5/MD5-sess
- IEEE802.1X
BToE features
- Click to call/Click to answer
- Audio device switch from Conference Phone to PC
- Wireless paring with PC client
- As a PC Audio device
Management
- Configuration: browser/phone/Auto provisioning
- Yealink RPS
- Auto Provisioning via Activation Code
- In-band provisioning
- In-Band Configuration Management
- QoE (Monitoring Reports)
- Single identity (active directory)
- Media Bypass
- Reset to factory, reboot
- Package tracing export, system log
- Screenshot via URL
- Phone log click to upload
- View license status
Other physical features
- Color: Space Silver
- External Yealink PoE adapter (optional)
- Power consumption (PoE): 5.25w-12.3w
- Dimension (W*D*H): 338mm*338mm*74mm
- Operating humidity: 10~90%
- Storage temperature: -10~50C (+14~122F)
