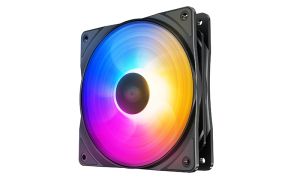

Deepcool RF 120 FS Case Fan
Design
Convenient Lighting
6 built-in high brightness LEDs. With the all-new purple/blue/orange lighting
combination, you wont need complicated control settings. Simply plug in the
power on and enjoy the mesmerizing visual experience.
PWM Control
PWM smart adjustment allows precise speed control. Equipped with shock pads,
the fan undergoes optimal operation, effectively reducing noise
generation.
Powerful Performance
Optimized 9 fan blades design, balancing air flow and wind pressure,
providing strong cooling performance.
Long-lasting Bearing
Adopts hydraulic self-oiling bearing, long lasting and
low-noise.
Convenient Installation
Standard screw sizes, fuss-free convenient installation.
4-pin Connector
Adopts mainstream 4-pin power interface, offers continuous and effective
output.
Features
- Dazzling preset lighting effect (purple/blue/orange) from 6
high-brightness, long-lasting LEDs.
- Optimized 9 fan blades design, balancing air flow and wind
pressure.
- PWM smart adjustment technology, effectively reducing wind
noise.
- 4-pin power connector for high-performance and stability.
- 4 standard-sized screws, keeping the frame stable and the installation
simple.
- Improved hydraulic self-oiling bearing, yielding enhanced product
life-span.
Specifications
|
Specification |
RF120
FS |
|
Overall
Dimensions |
120X120X25mm |
|
Net
Weight |
143g |
|
Bearing
Type |
Hydro
Bearing |
|
Rated
Voltage |
12VDC |
|
Rated
Current |
0.17 A |
|
Power
Input |
2.04
W |
|
Fan
Speed |
500~1500
RPM10% |
|
Max. Air
Flow |
56.5
CFM |
|
Fan Air
Pressure |
1.66
mmAq |
|
Noise |
27 dB(A) |
|
Fan
Connector |
4-pin
PWM |
|
LED
Type |
LED |
|
EAN |
6933412710516 |
|
P/N |
DP-FLED3-RF120-FS |

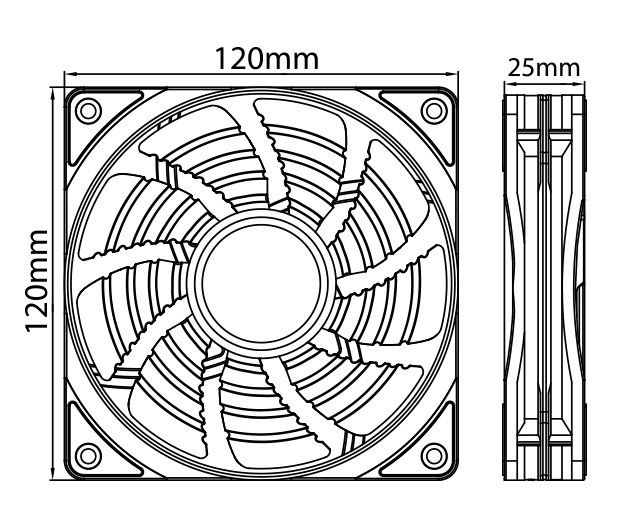

Dimension
