Coolermaster Masterbox MB511 ARGB Mid-Tower Case - Black
Overview
READY, SET, GAME.
- Fine Mesh Front Panel
- ARGB Lighting System
- Tempered Glass Side Panel

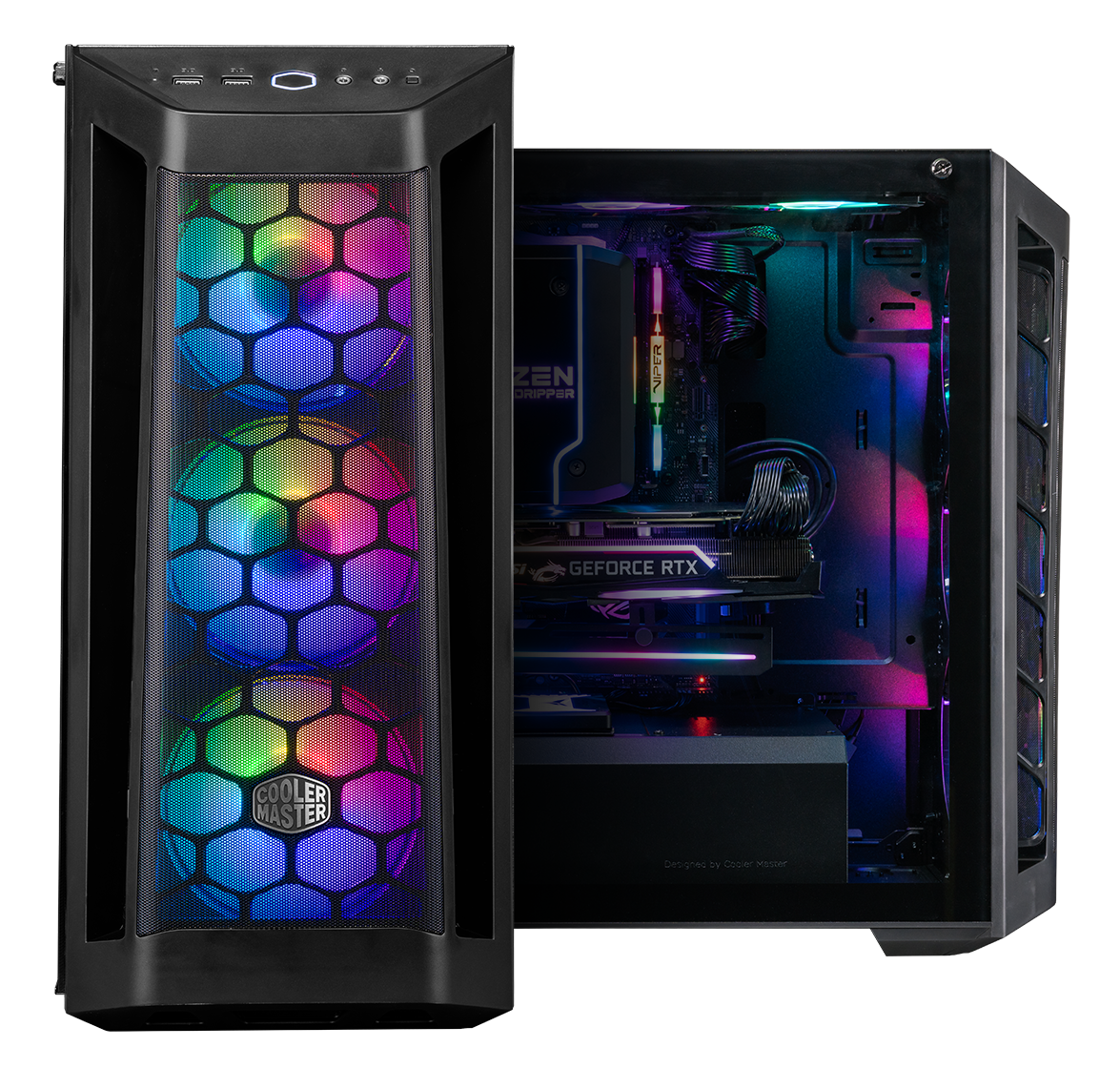

YOUR SEARCH FOR AIRFLOW ENDS HERE.
By employing Cooler Masters Fine Mesh technology, the MasterBox MB511 ARGB
demonstrates a prowess for thermal performance and pairs it with premium
lighting. Three ARGB fans are included in the box to complement hardware
lighting while mesh ventilation on the front and top panel keeps gaming systems
cool under pressure.
With airflow potential and aesthetic customization maximized, high-demand
gaming rigs can breathe easy in the MasterBox MB511 ARGB.
FINE MESH FRONT PANEL
The Fine Mesh design on the front panel is proven, by reviewers and critics
alike, to provide considerable airflow while simultaneously filtering out dust.
Light also refracts and behaves uniquely to the Fine Mesh, creating a halo
effect against the included ARGB fans.

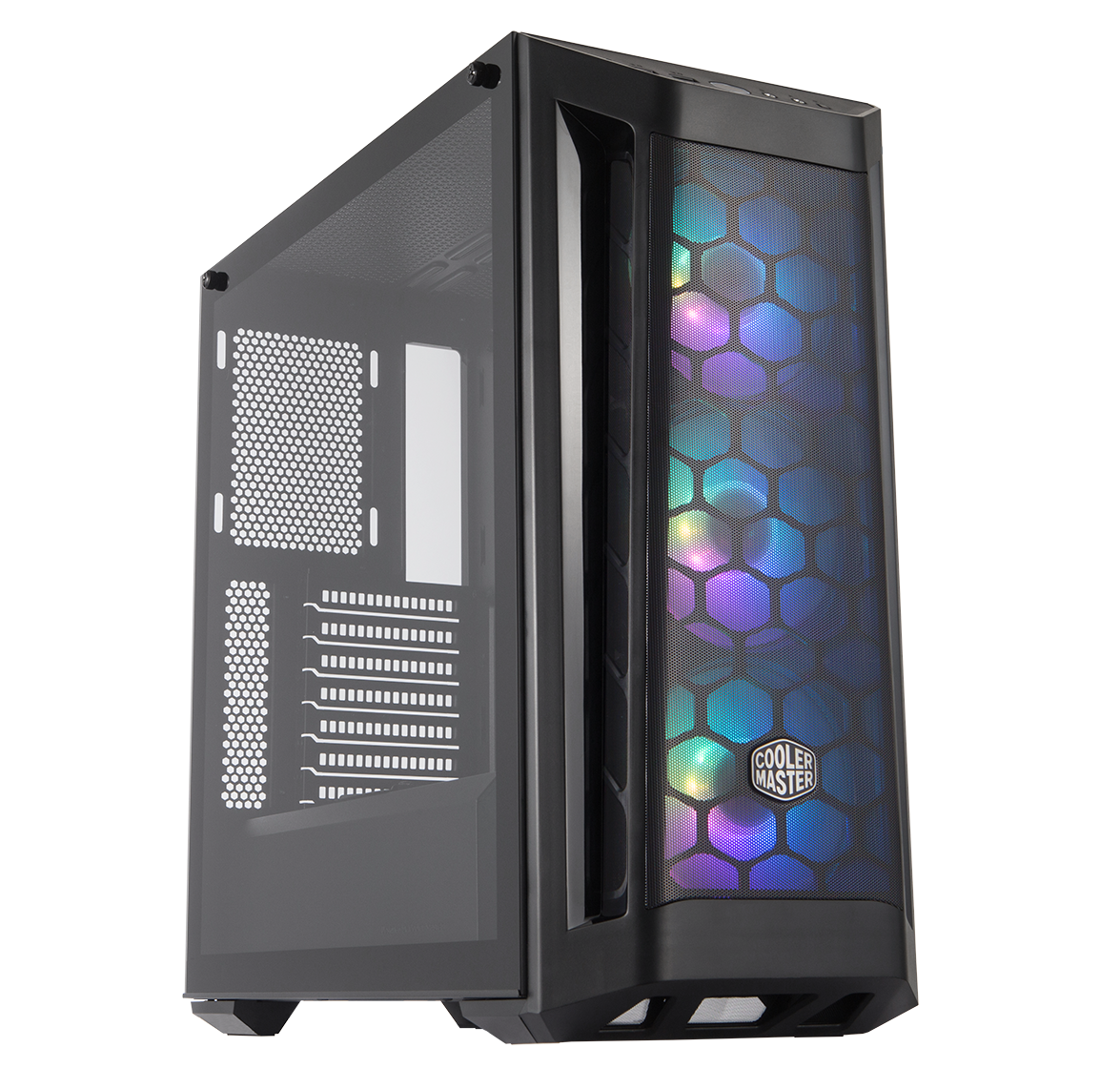

ARGB LIGHTING SYSTEM
Three pre-installed ARGB fans can be managed by either the motherboard or an
included controller, connected by the included splitter, to create a
comprehensive ARGB lighting system.
TEMPERED GLASS SIDE PANEL
Gaming hardware, cooling components, and the pure pride of the builder is
shown in panoramic view through an edge-to-edge tempered glass side panel.
VERSATILE COOLING OPTIONS
Support for up to seven 120mm fans and dual 360mm radiators on the top and
front panel ensure that even the most extreme systems stay cool.
ARGB CONTROLLER
The small ARGB Controller is a mini-sized controller that allows your
Addressable RGB such as fans and LED strips to be powered and controlled even in
PC systems without an A-RGB capable motherboard.
The controller comes with 14 lighting presets to make full use of the
Addressable LEDs in the system and also allows to be completely switched off by
long pressing its button.
It is also possible to attach any external 2pin button to it to be able to
switch presets without having to open the system. For ease of use, Cooler Master
allows the RESET button to be optionally connected to the controller and used as
an external ARGB preset switch button.
Specifications
|
MODEL
NUMBER |
MCB-B511D-KGNN-RGA |
|
SERIES |
MasterBox
Series |
|
SIZE |
Mid
Tower |
|
AVAILABLE
COLOR(S) |
Black |
|
MATERIALS |
Steel,
Plastic, Tempered Glass |
|
DIMENSIONS
(L X W X H) |
496
x 217 x 469 mm |
|
WEIGHT |
6.59
kg |
|
MOTHERBOARD
SUPPORT |
Mini
ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*support for up to 12" x 10.7",
will limit cable management features) |
|
EXPANSION
SLOTS |
7 |
|
5.25"
DRIVE BAYS |
N/A |
|
2.5"
/ 3.5" DRIVE BAYS (COMBO) |
2
(Max.2) |
|
2.5"
DRIVE BAYS |
5
(Max.6) |
|
I/O
PANEL |
2x
USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack,
1x ARGB Controller, 1x ARGB 2-to-3 splitter |
|
PRE-INSTALLED
FANS - FRONT |
3x
120mm ARGB Fans |
|
FAN
SUPPORT - TOP |
3x
120mm, 2x 140mm |
|
FAN
SUPPORT - FRONT |
3x
120mm, 2x 140mm |
|
FAN
SUPPORT - REAR |
1x
120mm |
|
RADIATOR
SUPPORT - TOP |
120mm,
240mm, 360mm, (44mm max motherboard component
height) |
|
RADIATOR
SUPPORT - FRONT |
120mm,
140mm, 240mm, 280mm, 360mm, (75mm clearance) |
|
RADIATOR
SUPPORT - REAR |
120mm |
|
CLEARANCE
- CPU COOLER |
165mm/6.49" |
|
CLEARANCE
- PSU |
180mm/7.08" |
|
CLEARANCE
- GFX |
410mm/16.1" |
|
DUST
FILTERS |
Front,
Top, Bottom |
|
POWER
SUPPLY SUPPORT |
Bottom
mount, ATX |
|
WARRANTY |
2
years |
|
EAN
CODE |
4719512095102 |
|
UPC
CODE |
884102047299 |
