All stock codes associated to this product
MC330L-GE4EG4RW, MC330LGE4EG4RW, 4895206

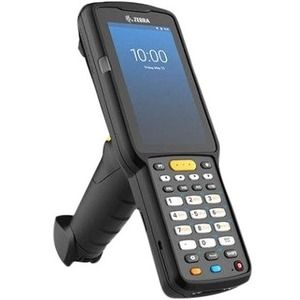

THE ULTIMATE VERSATILE, LIGHTWEIGHT-YET-RUGGED KEY-BASED TOUCH MOBILE COMPUTER
Introducing the next evolution of our highly successful MC3000 family of keypad/touch mobile computers, packed with new features to tackle the ever increasing requirements of today's on-demand, e-commerce driven economy. You get the same proven fit-for-purpose ergonomic design, now with Zebra's latest, most powerful and secure Android architecture, including an extended range scanning option that captures barcodes on the top of your warehouse racks with ease, and a 35% larger capacity battery packs power for up to three shifts. All rugged specifications are higher for increased reliability - drop, tumble and sealing. And with the bright touch display, multiple keypad options and four form factor options, you can give your workers a device that will make on-the-job data capture easier than ever. Improve workforce productivity and efficiency from the manufacturing shop floor to the warehouse in your facility with the MC3300x - only from Zebra.
POWERFUL FEATURES TO BOOST PRODUCTIVITY
More rugged and ready for all-day business
You get reliable operation and peace of mind with an increased 6 ft./1.8 m drop specification across the operating temperature, triple the tumble specification (3,000 3.3 ft./1 m); and now IP64 dustproof sealing. With Corning Gorilla Glass on the touch panel and scan window, your investment will be protected from regular wear and tear.
Superior performance on all your voice and data apps
Power even the most demanding apps of today and tomorrow with the most powerful processor and most memory in this class - every model offers an ultra-powerful 2.2 GHz octa-core processor and 4 GB RAM/ 32 GB Flash.
Power three shifts with the class-leading 7000 mAh battery
The new 7000 mAh extended capacity battery is standard with every MC3300x. More power means fewer battery changes, easier battery management, and a smaller battery pool with fewer batteries to purchase and manage, saving time and money on your deployment.
Maximum WiFi range and speed - with less power
2x2 Multiple-User Multiple Input Multiple Output (MU-MIMO) technology allows access points to communicate with multiple devices simultaneously via pinpoint beamforming, boosting WiFi network capacity, speed and range. And the processing is shifted from the mobile device to the access point, extending battery life.
The perfect combination: touchscreen and keypad
Whether your application requires touch or physical keypad input, we've got you covered. Your application can utilize the entire display, while the physical keypad provides the same familiar user input experience your workers have today. In addition, the touchscreen paves the way to migrate to intuitive touch-based interfaces. And with three different options, you can choose the right keypad for your data entry needs -alphanumeric, numeric and functional numeric.
Bluetooth 5.0 - twice the speed, four times the range, less power
Speeds up to 2 Mbps improve the performance of Bluetooth peripherals, such as ring scanners, printers and headsets. The result? Faster application response times, faster printing and better voice quality. And battery runtime is also extended, since Bluetooth Low Energy reduces power consumption.
Integrated NFC for simple, split-second pairing
With a quick tap, workers can pair the MC3300x with Zebra's family of ring scanners, mobile printers, and Bluetooth headsets - your pairing possibilities are endless.
Software
Keyboard/Keypad
Number of Keys | 47 |
Keyboard Type | Alphanumeric |
Touchscreen Information
Touchscreen Type | Capacitive |
Touchscreen | Yes |
Display &Graphics
Screen Resolution | 800 x 480 |
Screen Size | 4" |
Screen Mode | WVGA |
Backlight Technology | LED |
Battery Information
Battery Chemistry | Lithium Ion (Li-Ion) |
Battery Capacity | 7000 mAh |
Battery Included | Yes |
Battery Voltage | 3.60 V |
Removable Battery | Yes |
Network &Communication
Bluetooth | Yes |
Wireless LAN | Yes |
Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
Bluetooth Standard | Bluetooth 5.0 + LE |
Near Field Communication (NFC) | Yes |
Technical Information
Barcode Symbology Supported | 1D:
- Chinese 2 of 5
- Codabar
- Code 11
- Code 128
- Code 39
- Code 93
- Discrete 2 of 5
- EAN-8
- EAN-13
- GS1 DataBar
- GS1 DataBar Expanded
- GS1 DataBar Limited
- Interleaved 2 of 5
- Korean 2 of 5
- MSI
- TLC 39
- Matrix 2 of 5
- Trioptic
- UPCA
- UPCE
- UPCE1
- Web Code
2D:
- Australian Postal
- Aztec
- Canadian Postal
- Composite AB
- Composite C
- Data Matrix
- Dutch Postal
- Japan Postal
- Maxicode
- Micro PDF
- Micro QR
- PDF
- QR Code
- UK Postal
- US Planet
- US Postnet
- US4State
- US4State FICS
|
Connectivity Technology | Wireless |
Features | Gorilla Glass |
Sensor Type | Gyroscope |
Accelerometer |
Scanning Distance | 21.34 m |
Scanner Range | Long Range |
Image Sensor Type | Imager |
Google Mobile Services (GMS) | Yes |
Scan Engine Model | SE4850 |
Scanning Capability | 2D |
1D |
Drop Specification (To Concrete) | 1828.80 mm |
Air Electrostatic Discharge (+/-) | 15kV AC |
Indirect Electrostatic Discharge (+/-) | 8kV AC |
Contact Electrostatic Discharge (+/-) | 8kV AC |
Processor &Chipset
Processor Speed | 2.20 GHz |
Processor Type | Snapdragon |
Processor Model | 660 |
Processor Core | Octa-core (8 Core) |
Processor Manufacturer | Qualcomm |
Physical Characteristics
Weight (Approximate) | 521.6 g |
Form Factor | Gun |
Height | 202.6 mm |
Width | 74.7 mm |
Depth | 163.9 mm |
Rugged | Yes |
Memory
Flash Memory | 32 GB |
Standard Memory | 4 GB |
Memory Card Supported | microSD |
SDHC |
SDXC |
Maximum Memory Card Size Supported | 512 GB |
Memory Card Slot | Yes |
Miscellaneous
Application/Usage | Distribution |
Industrial |
Manufacturing |
Warehouse |
Retail |
Environmentally Friendly | Yes |
Ingress Protection (IP) Rating | IP64 |
General Information
Product Type | Handheld Terminal |
Manufacturer Part Number | MC330L-GE4EG4RW |
Manufacturer Website Address | https://www.zebra.com/ap/en.html |
Manufacturer | Zebra Technologies Corporation |
Product Model | MC3300x |
Product Name | MC3300x Mobile Computer |
Product Series | MC3000 |
Brand Name | Zebra |
