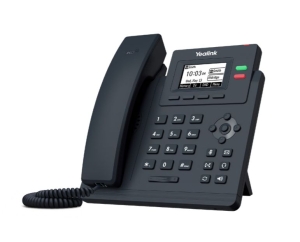

Yealink SIP-T31P Dual-line Entry Level IP Phone - Grey
Overview
Entry-level IP Phone with 2 Lines & HD voice
As a very fashionable and friendly entry-level IP phone, Yealink SIP-T31P has
an extra-large 132x64-pixel graphical LCD with backlight that brings clear
visual experience for users. The T31P offers support for two VoIP accounts and
includes local 5-way conferencing to maximize productivity. Working with the
adjustable multi-angle stand, the T31P IP phone ensures you to work in different
situation. Meanwhile, the T31P features built-in Power over Ethernet (PoE) and
superb high definition (HD) sound quality. Easy-to-use and powerful features
together with reasonable price deliver excellent voice communications
solution.
- Unified Firmware
- Elegant Industrial Design
- EHS
- Device Management
- HD
- Opus
- 5-way
- Conferencing
Key Features and Benefits
Stronger Performance, More Possibilities
Equipped with powerful chip, the T3 series owns a stronger computing ability
and more upgraded functions, which ensures a higher productivity and smoother
office experience. Due to great performance, T3 series is capable to extend more
services for different business demands.
Superior HD Audio, Better Communication
The Yealink T3 series provides distraction-free communications with industry
leading Smart Noise Filtering Technology, which delivers excellent sound quality
without extraneous noises and allows fluent conversations.
Classic Design, Practical Details
Designed by Yealink original team, T3 series inherits the design concept of
Yealink IP phone family. The advanced design including modern appearances and
ergonomic details enables easier and friendly operation experience to users.
All in One Platform, Convenient Management
Proven reliability and integrations for Yealink Device Management Platform,
installed the unified firmware, T3 series is simple to deploy and manage, which
allows a significant reduction in the operation and maintenance
cost.
- Yealink HD Voice
- 2.3 132x64-pixel graphical LCD with back-light
- Two-port 10/100M Ethernet Switch
- PoE support
- Opus codec support
- Up to 2 SIP accounts
- Local 5-way conferencing
- Support EHS Wireless Headset
- Unified Firmware
- Support YDMP/YMCS
- Stand with 2 adjustable angles
- Wall mountable
Specifications
Audio Features
- HD voice: HD handset, HD speaker
- Smart Noise Filtering
- Wideband codec: Opus, G.722
- Narrowband codec: G.711(A/), G.723.1, G.729, G.729A, G.726,
iLBC
- DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
- Full-duplex hands-free speakerphone with AEC
- VAD, CNG, AEC, PLC, AJB, AGC
Phone Features
- 2 VoIP accounts
- Call hold, mute, DND
- One-touch speed dial, hotline
- Call forward, call waiting, call transfer
- Group listening, SMS, emergency call
- Redial, call return, auto answer
- Local 5-way conferencing
- Direct IP call without SIP proxy
- Ring tone selection/import/delete
- Set date time manually or automatically
- Dial plan
- XML Browser, action URL/URI
- Integrated screenshots
- RTCP-XR, VQ-RTCPXR
- Enhanced DSS Key
Directory
- Loal phonebook up to 1000 entries
- Black list
- XML/LDAP remote phonebook
- Smart dialing
- Phonebook search/import/export
- Call history: dialed/received/missed/forwarded
IP-PBX Features
- Busy Lamp Field (BLF), Bridged Line Apperance (BLA)
- Anonymous call, anonymous call rejection
- Hot-desking, voice mail
- Flexible seating
- Call park, call pickup
- Executive and Assistant
- Centralized call recording
- Visual voice mail
- Call recording
Display and Indicator
- 2.3 132x64-pixel graphical LCD with backlight
- LED for call and message waiting indication
- Dual-color (red or green) illuminated LEDs for line status
information
- Intuitive user interface with icons and soft keys
- Multilingual user interface
- Caller ID with name and number
- Power saving
Feature keys
- 2 line keys with LED
- 6 features keys: transfer, message, headset, redial, mute, hands-free
speakerphone
- 5 navigation keys
- Volume control keys
Interface
- 2 x RJ45 10/100M Ethernet ports
- Power over Ethernet (IEEE 802.3af), class 2
- 1 x RJ9 (4P4C) handset port
- 1 x RJ9 (4P4C) headset port
Other Physical Features
- Color: Classic Grey
- Wall mountable
- External Yealink AC adapter
- AC 100~240V input and DC 5V/600mA output
- Power consumption (PSU): 2-3W
- Power consumption (PoE): 3-4W
- Dimension (W*D*H*T): 188mm*189mm*162mm*50mm
- Operating humidity: 10~95%
- Operating temperature: -10~50C (+14~122F)
Management
- Configuration: browser/phone/auto-provision
- Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
- Auto-provision with PnP
- Zero-sp-touch, TR-069
- Phone lock for personal privacy protection
- Reset to factory, reboot
- Package tracing export, system log
Network and Security
- SIP v1 (RFC2543), v2 (RFC3261)
- Call server redundancy supported
- NAT traversal: STUN mode
- Proxy mode and peer-to-peer SIP link mode
- IP assignment: static/DHCP
- HTTP/HTTPS web server
- Time and date synchronization using SNTP
- UDP/TCP/DNS-SRV (RFC 3263)
- QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
- SRTP for voice
- Transport Layer Security (TLS)
- HTTPS certificate manager
- AES encryption for configuration file
- Digest authentication
- OpenVPN, IEEE802.1X
- IPv6
- LLDP/CDP/DHCP VLAN
- ICE
Package Features
- Package content:
- Yealink SIP-T31P IP phone
- Handset with handset cord
- Ethernet Cable (1.5m CAT5E UTP Cable)
- Stand
- Quick Start Guide
- Power Adapter (Optional)
- Qty/CTN: 10 PCS
- N.W/CTN: 9.79 kg
- G.W/CTN: 10.83 kg
- Giftbox size: 213 mm*210 mm*103 mm
- Carton Meas: 535 mm*443 mm*227 mm
