All stock codes associated to this product
SR24AIOCPU, SR24 AIO CPU, 4801816
Patented Integrated Twin Turbines
The patented twin-turbine function runs parallel with one another and
functions simultaneously to push both currents toward the copper cold-plate to
significantly reduce the temperature and keep hardware cool.
Cautionary LEDs
The pump illuminates a white LED logo under normal circumstances. If it
detects an unusual current or excessive heat, the LEDs will flash red and blue
to prevent damaging components.

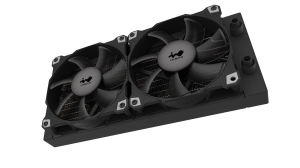

Radiator Fans that Flow!
The Jupiter series AJF120 case fans are specially designed for
liquid-cooling. The fans feature high airflow (101.5 CFM), high static pressure
(4.22mm H2O) and possesses a high-speed mode that ramp up the RPMs to 2500.
Approach to Noise Reduction
The noise of an All-In-One liquid cooling radiator is difficult to control.
The main reason is because of the way the high airflow sounds when it runs
through the traditional radiator fins. To combat this, the SR series feature the
AJF120 fans to provide the best operation performance, while reducing noise
pollution.
Array of Microchannel Fins
The SR series possesses a high waterflow pump, which enhances cooling
performance directly on the copper plate to cool the CPU. The copper plate hosts
an array of microchannel fins that dissipates heat.
Syncs with Addressable Motherboards
There are about 16.8 million ARGB color possibilities, which means the AJF120
case fans allow the customization to meet your builds standards. Users can
choose to control lighting independently by using the One-Click controller
included or to sync with an addressable motherboard (3-pin, 5V).
Specifications
| Model |
SR24 |
| Model Number |
IW-LC-SR24 |
| CPU Socket Support |
Intel LGA 2066/2011-V3/2011/1366/1156/1155/1151/1150/1200
AMD
AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1/TR4 |
| Radiator |
Dimensions |
277 x 120 x 27 mm (10.9 x 4.7 x 1.1") |
| Material |
Aluminium |
| Tube Length |
400 mm |
| Tube Material |
Rubber with Nylon Braided Sleeve |
| Water Block & Pump |
Dimensions |
68 x 68 x 100 mm |
| Materials |
Copper, Plastic |
| Pump Speed |
240010%RPM |
| Fan |
Model |
Jupiter Series AJF120 |
| Quantity Included |
2 PCS |
| Dimensions |
120 x 120 x 26 mm |
| Speed Mode (PWM) |
PWM 500-2500 RPM +/- 10% |
| Noise Level |
23 dBA (normal) |
| Airflow |
101.5 CFM (max) |
| Static Pressure |
4.22 mm-H2O |
| Connectors |
4-pin (12V, PWM) , 3-pin (5V, ARGB) |
| Bearing Type |
Double Ball Bearing |
| Package Contents |
InWin SR series 240mm CPU Liquid Cooler *1 |
| InWin AJF120 Addressable Fan * 2 |
| ARGB One-Click Controller |
| Fan and Radiator Mounting Screws Pack |
| Mounting Kit for CPU Sockets |
| Cable Pack |
| Package Dimensions (H x W x D) |
136 x 265 x 331 mm (5.4" x 10.4" x
13") |
