Thermaltake Core V1 Snow Edition - White
Overview
Small and cute ITX based chassis with a 200mm fan in the front panel as well
as interchangeable side panels.

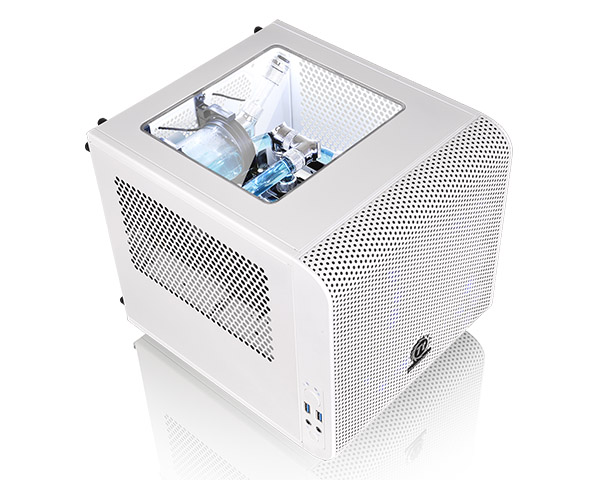

The new Core V1 Snow is a small and cute ITX based chassis with a 200mm fan
in the front panel. Smart interchangeable side panels allow users to flip it
accordingly to showcase either for superior liquid cooling or superb airflow,
which allows you to make your own personal setup. You not only grant to have a
really powerful mini system, it also has the ability to house various
overclocking components to keep it really cool!
Tt LCS Certified is a Thermaltake exclusive certification applied to only
products that pass the design and hardcore enthusiasts standards that a true LCS
chassis should be held to. The Tt LCS certification was created so that we at
Thermaltake can designate to all power users which chassis have been tested to
be best compatible with extreme liquid cooling configurations to ensure you get
the best performance from the best features and fitment.
Chambers Concept
Core V1 Snow has divided into two main chambers: the upper chamber is made
for cooling performance and efficiency, and the lower chamber is made for PSU
and cable management. With the aid of the removable 2.5/3.5 drive device racks,
users can enjoy to the freedom of gain the maximum interior space for advance
cooling performance or liquid system build.
Advanced Ventilation

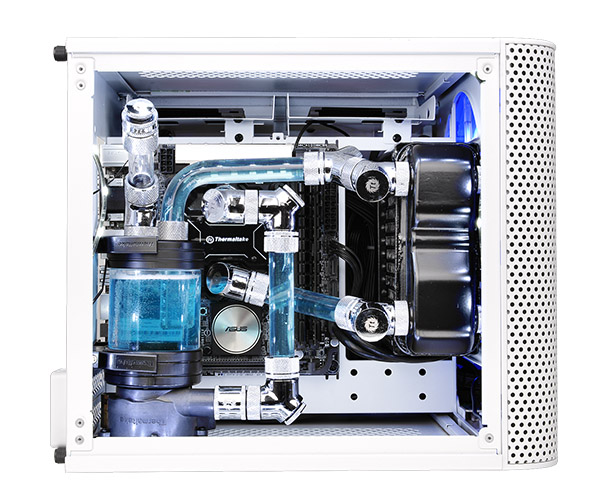

With a promising cooling ability, Core V1 Snow has various mounting points to
supports all types of cooling systems that includes DIY/AIO liquid cooling

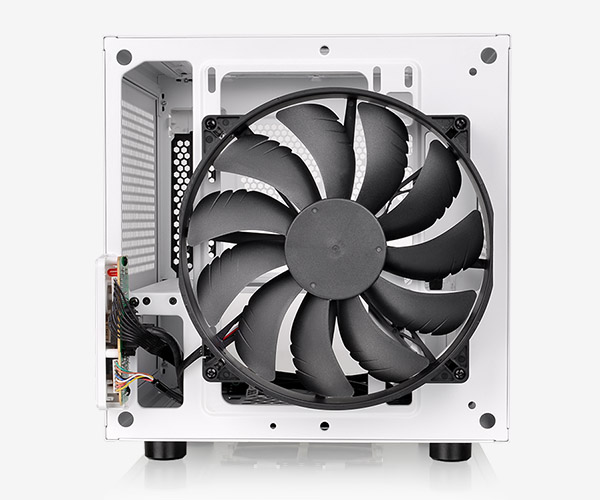

systems and air cooling units. A large 200mm fan is preinstalled in the front,
along with two optional 80mm turbo fans at the rear, guarantee to hold up any
type of gaming system.
Interchangeable Side Panel
Symmetrical panels allow users to build the system with personality. Play
around the panels accordingly for either the best viewing presentation or
cooling performance. A removable PSU dust filter and adjustable shockproof
rubbers is built with the bottom panel of the chassis to prolong the PSU
usage.

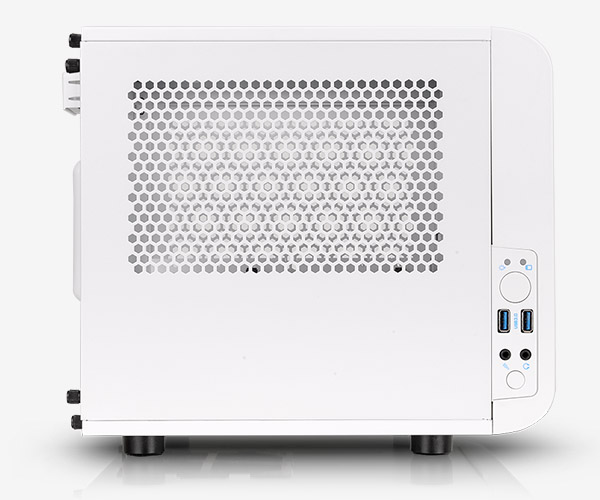

Handy I/O Ports
Design with convenience and cleanness in mind, Core V1 Snow has built in dual
USB 3.0 and HD audio connectors together with the Power and Reset Button on the
side of front panel, which not only keep the panel clean and simple, it also
grants a direct and easy access for external devices.
Great Expansion in Compact Size
Core V1 Snow is designed with high-end gaming system compatibility, gamers
can easily install up to 4 data storage devices with the modular drive racks, a
dual expansion slot VGA with the length up to 260mm, a tower CPU cooler with
height up to 140mm, together with a high wattage PSU of length up to 180mm, and
still offers a 80mm cable management space.
Specifications
|
P/N |
CA-1B8-00S6WN-01 |
|
SERIES |
Core |
|
MODEL |
Core
V1 Snow |
|
CASE
TYPE |
Mini
Case |
|
DIMENSION
(H x W x D) |
276
x 260 x 316 mm |
|
(10.9
x 10.2 x 12.4 inch) |
|
SIDE
PANEL |
Transparent
Window (Interchangeable) |
|
COLOR |
Exterior
& Interior : White |
|
MATERIAL |
SPCC |
|
COOLING
SYSTEM |
Front
(intake) : |
|
200
x 200 x 30 mm fan (800rpm, 13dBA) |
|
DRIVE
BAYS |
-Hidden
: 2 x 3.5 , 2 x 2.5 |
|
-ACCESSIBLE |
|
-HIDDEN |
|
ExPANSION
SLOTS |
2 |
|
MOTHERBOARDS |
6.7"
x 6.7" (Mini ITx) |
|
I/O
PORT |
USB
3.0 x 2, HD Audio x 1 |
|
PSU |
Standard
PS2 PSU (optional) |
|

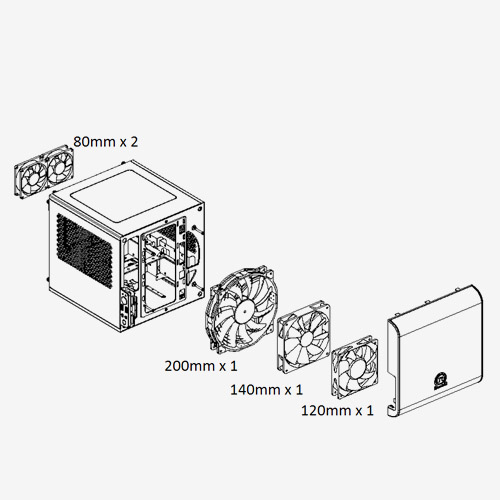

FAN
SUPPORT |
Front:
|
|
1
x 120mm or |
|
1
x 140mm or |
|
1
x 200mm
|
|
Rear:
|
|
2
x 80mm |
|
RADIATOR
SUPPORT |
Front:
|
|
1
x 120mm or |
|
1
x 140mm |
|
CLEARANCE |
CPU
cooler height limitation: |
|
140mm
|
|
VGA
length limitation: |
|
255mm
(Inner chassis) |
|
285mm
(Outer chassis) |
|
PSU
length limitation: |
|
200mm |
