All stock codes associated to this product
CA1R500M1WN00, CA-1R5-00M1WN-00
Thermaltake Versa T25 Tempered Glass Mid-Tower Chassis
Overview

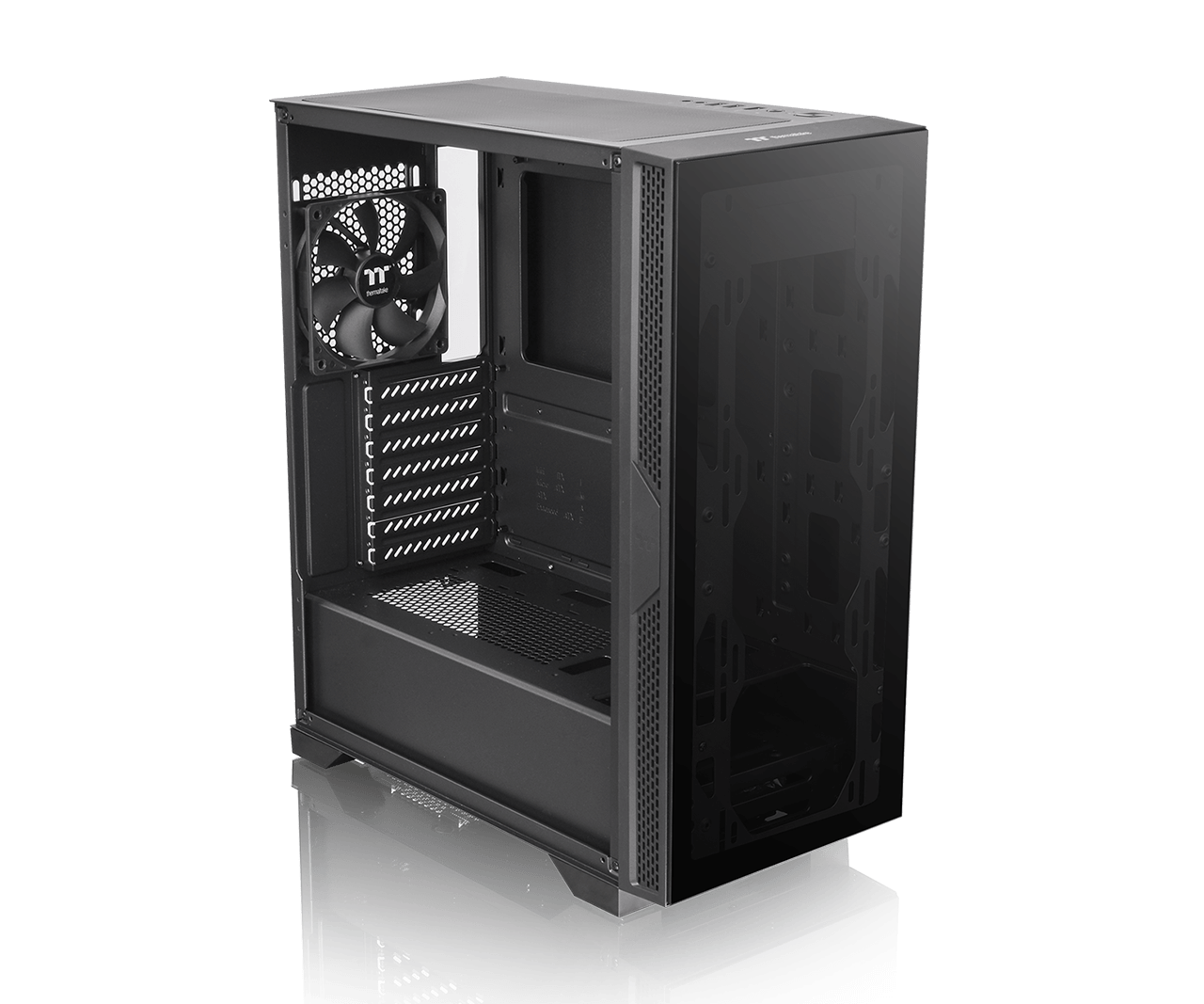

Versa T25 TG comes with two tempered glass panels at the front and on the
left, one preinstalled 120mm standard rear fan and supports motherboards up to
ATX.
Designed for PC builders who want a sleek, liquid-looking supported case with
great airflow and a crystal-clear tempered glass panel the Versa T25 Tempered
Glass Mid Tower Chassis is the ultimate and budget friendly PC. Beautifully
constructed with two tempered glass panels at the front and on the side allow
you to display your interior hardware. Moreover, the Versa T25 TG is the first
case from the Versa Series that can fit 200mm fans at the front for a greater
intake. It supports a huge range of air and liquid cooling hardware, high-end
GPUs and even a handy PSU cover in the base.
To continue achieving the corporate mission of delivering the perfect user
experience, Thermaltake developed TT Premium with the essence of combining
supreme quality products with a new logo design. TT Premium is far more than
just a guarantee of quality. Behind the name, it represents the passion in DIY,
Modding and Thermaltakes desire to be the most innovative brand in the PC
hardware market. To satisfy the demand of the high-end PC users, TT Premium
follows its core values of Excellent Quality, Unique Design, Diverse
Combinations and Boundless Creativity to provide a high performance PC product
for every enthusiast.
Built-in PSU Cover
Comes with a full-length PSU cover with a ventilated design to enhance
airflow and hide those unsightly cables.
Tempered Glass Window
The two 4mm tempered glass windows at the front and on the side of the Versa
T25 TG are built to be more durable, scratch resistant, and transparent for
viewing the hardware.
Dust Reduction
A handy magnetic fan filter on the top simply attaches for easy dust
filtration and particulate protection. At the base of the chassis, additional
fan filters can provide excellent protection against both dirt and
dust.
Hardware and Liquid Cooling Support
Versa T25 TG has excellent expandability. It can support a CPU cooler with a
maximum height of 150mm, VGA length up to 300mm in length, 60mm RAM height
limitation (with radiator series), and a power supply with a length of up to
200mm (without HDD Rack). Optimized for excellent cooling capability, the case
comes with one 120mm exhaust rear fan preinstalled, and is able to house up to
two 200mm front fans, and up to two 140mm fans on top, a radiator of up to 360mm
at the front and 240mm on the top to allow users to build their desired high-end
system.
Handy I/O Ports
One 3.0 USB and two 2.0 USB ports on the top to grant direct access when
needed.
Specifications
|
P/N |
CA-1R5-00M1WN-00 |
|
SERIES |
Versa |
|
MODEL |
Versa
T25 TG |
|
CASE
TYPE |
Middle
tower |
|
DIMENSION
(H X W X D) |
416
x 210 x 480 mm |
|
(16.38
x 8.27 x 18.9 inch) |
|
NET
WEIGHT |
6.65
kg / 14.66 lb |
|
SIDE
PANEL |
4mm
Tempered Glass x2(Left & Front) |
|
COLOR |
Exterior
& Interior : Black |
|
MATERIAL |
SPCC |
|
COOLING
SYSTEM |
Rear
(exhaust) : |
|
1
x 120 x 120 x 25 mm fan |
|
(1000rpm,
16 dBA) |
|
DRIVE
BAYS |
2
x 3.5 or 2.5" (HDD Rack); 2 x 2.5" (HDD
Bracket) |
|
-ACCESSIBLE |
|
-HIDDEN |
|
EXPANSION
SLOTS |
7 |
|
MOTHERBOARDS |
6.7"
x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6"
(ATX) |
|
I/O
PORT |
1
x USB 3.0, 2 x USB 2.0, 1 x HD Audio, |
|
PSU |
Standard
PS2 PSU (optional) |
|
FAN
SUPPORT |
Front: |
|
3
x 120mm or 2 x 120mm or 1 x 120mm |
|
2
x 140mm or 1 x 140mm |
|
2
x 200mm or 1 x 200mm |
|
Top: |
|
2
x 120mm or 1 x 120mm |
|
2
x 140mm or 1 x 140mm |
|
Rear: |
|
1
x 120mm, |
|
RADIATOR
SUPPORT |
Front:
1 x 360mm or 1 x 240mm or 1 x 120mm |
|
1x
280mm or 1 x 140mm |
|
Top:
1 x 240mm or 1 x 120mm |
|
Rear:
1 x 120mm |
|
CLEARANCE |
CPU
cooler height limitation: 150mm |
|
PSU
length limitation: 160mm(With HDD Rack) |
|
200mm(Without
HDD Rack) |
|
VGA
length limitation: 300mm |
|
RAM
height limitation: 60mm(With radiator
series) |
