All stock codes associated to this product
CLF082PL12BLA, CL-F082-PL12BL-A

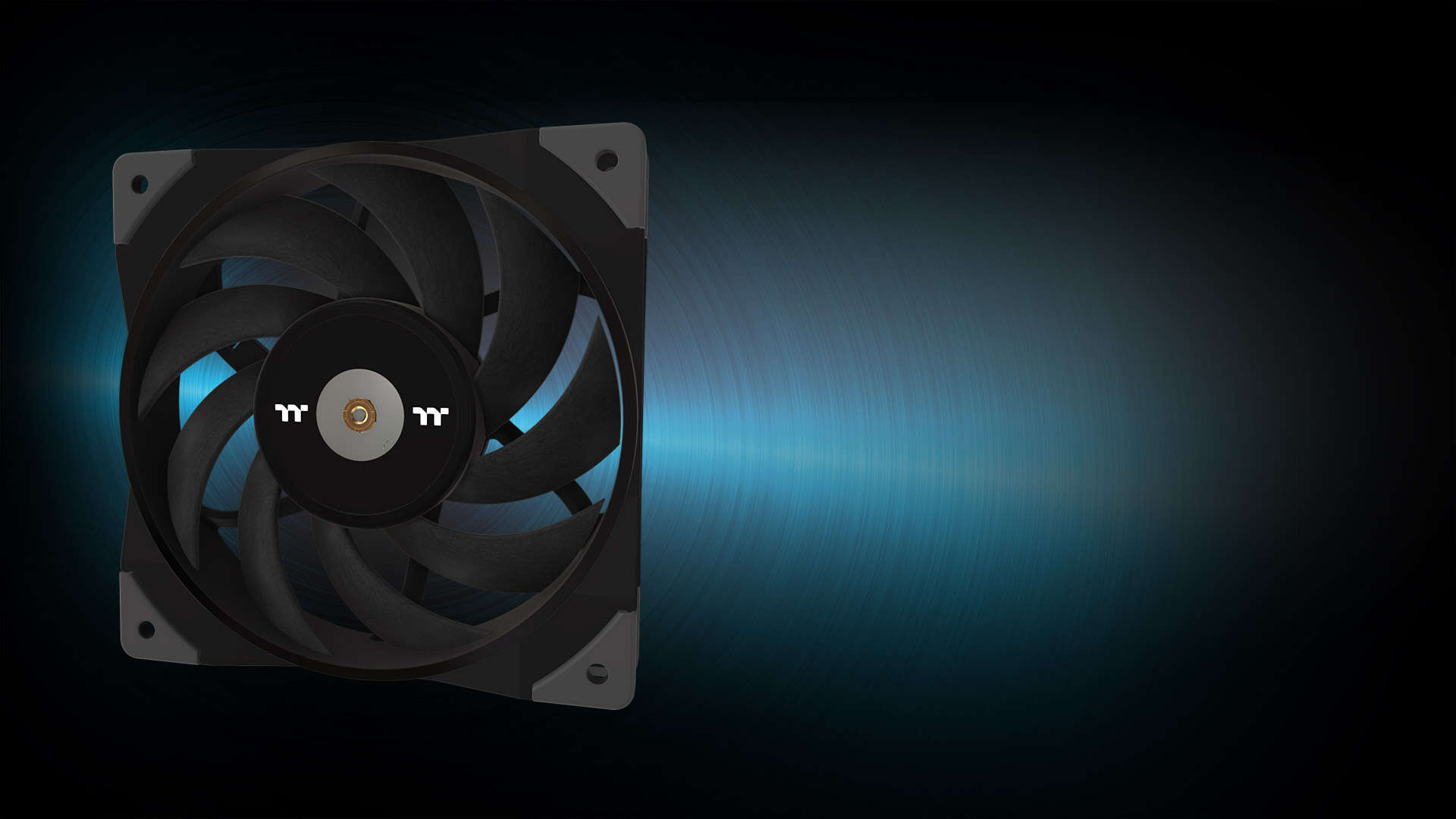

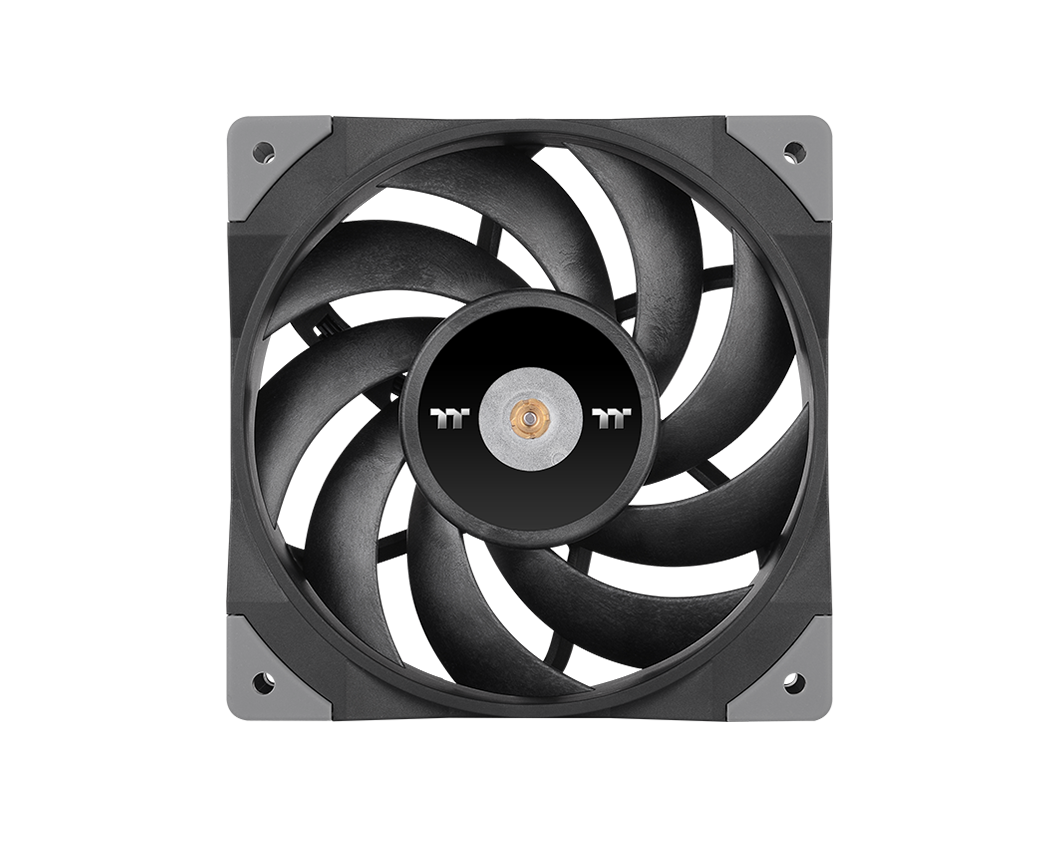

Thermaltake TOUGHFAN 12 High Static Pressure Radiator Fan (2 Fan
PACK)
Overview
Thermaltake TOUGHFAN PWM-controlled high static pressure fan features an
optimized structure to maximize high-end cooling needs.
Unparalleled Cooling Performance
The TOUGHFAN is a PWM controlled fan which is designed to perform at a
maximum operating speed of up to 2000 RPM allowing unparalleled cooling
performance.
Exceptional Blade Design
Featuring high tensile strength and low thermal expansion coefficient
materials, the fan blade is built with special liquid crystal polymer (LCP), a
compound which minimizes vibration when the fan is operating at full
speed.
Metal-Reinforced Motor Hub
The TOUGHFANs center is constructed with a full steel motor hub providing
enhanced stability and durability.
The 2nd Generation Hydraulic Bearing
The 2nd generation hydraulic bearing incorporates a new shaft design with
inside etches allowing preservation of lubricant on both sides whilst reducing
noise during operation. Lowering audible levels and extending lifespan.
Built for Superior Cooling
The TOUGHFAN is designed for all cooling applications. Its your perfect go to
solution whether your using it as radiator fan or on a air cooler. Level up with
the TOUGHFAN for superior cooling performance.
Anti-Vibration Mounting System
The in-mold injection anti-vibration rubber pads dampen the vibration of the
fan allowing the fan to spin at higher levels without compromising noise levels.
The fan is designed with 80% coverage for all corners, maintaining low noise
levels when in operation.
Specifications
|
P/N |
CL-F082-PL12BL-A |
|
FAN
DIMENSION |
120
x 120 x 25 mm |
|
FAN
STARTED VOLTAGE |
9.0
V |
|
FAN
RATED VOLTAGE |
12
V |
|
RATED
CURRENT |
0.12
A (Fan x1) |
|
POWER
INPUT |
1.44
W (Fan x1) |
|
FAN
SPEED |
500
~ 2000 R.P.M |
|
With
L.N.C PWM 500~1500 R.P.M |
|
MAX.
STATIC PRESSURE |
2.
41mm-H2O |
|
MAX
AIR FLOW |
58.35
CFM |
|
NOISE
LEVEL |
22.3
db-a (without L.N.C) |
|
19.2
db-a (with L.N.C) |
|
BEARING
TYPE |
Hydraulic
Bearing Gen. 2 |
|
LIFE
EXPECTATION |
40,000
hrs, 25 |
|
CONNECTOR |
4
PIN PWM |
|
WEIGHT |
212.5
g (Fan*1) |
