All stock codes associated to this product
CAM540, 26AVCAM540, 26AV-CAM540, 848090006270

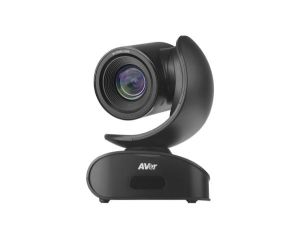

Aver CAM540 4K Conference Camera
Overview
4K Conference Camera
The CAM540 brings AVers new SmartFrame auto-framing technology to 4K high
definition video conferencing. With a wide field of view, the CAM540 is
guaranteed to provide an incredible communication experience in your meeting
room.
AVer SmartFrame Gets Your Meeting Started
Fast
The CAM540 delivers AVers latest camera technology to your meeting room with
AVer SmartFrame. SmartFrame maximizes the viewable field with auto-framing
solution that effortlessly puts everyone in your meeting into frame fast and
with no hassle. No more complex settings or time wasting controls simply click a
single button and find the most comfortable distance for your meeting with the
CAM540 and SmartFrame.
4K Ultra HD
The CAM540 supports a high-end Sony 4K CMOS that allows for 4K video to be
captured at 30 frames per second, providing users with an unbelievably lifelike
meeting experience.
High Detail 16X Total Zoom
The CAM540 is built with cutting edge 16X total zoom capability. Bringing an
unseen level of clarity to video conferencing, the CAM540 maximizes your teams
collaboration with simple, easy, and efficient video communication.

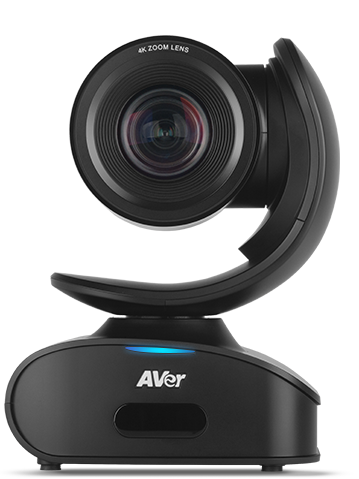

Make an Impression with the CAM540s Stylish New
Design
The CAM540 offers a new sleek and fluid design for conferencing rooms.
Compared to traditional designs, the CAM540 is elegant and compact to save you
space. The CAM540 easily fits your modern meeting room and provides an
experience that both novices and experts can enjoy in style.
Just Plug-and-Play
The CAM540 provides a simple, easy to use experience. With a USB3.1 Gen1
Type-C cable, the CAM540 allows for simple plug-and-play functionality that
means no more complicated settings. Plug in the camera and within seconds youre
ready to experience video collaboration with any video conferencing application
and cloud service youre familiar with.
Analytics for Efficient Meeting Rooms
The CAM540 provides an analytics API so enterprises and third-party software
providers can obtain people-counting data for better understanding of
meeting-space usage.
Reliable Video and Outstanding Quality
AVer's quality manufacturing process ensures that the CAM540 is always ready
for use. Designed for durability, the CAM540 camera is built to be durable and
reliable. With AVers industry leading 3+2 years warranty program, we make sure
that AVer is always there with the support you deserve.
Specifications
|
Camera |
Ultra-crystal
clear image support up to 4K; CMOS Sony 4K |
|
Frame
rate: 4K 30fps, 1080p , 720p , 640x480, 320x240 at 60, 30,
15fps |
|
SmartFrame:
Automatic FOV adjustment to fit all
participants |
|
16X
Zoom |
|
Auto
focus: minimum working distance 1 meter |
|
86
Wide field of view |
|
Back
light compensation and 2D noise reduction technology for optimizing light
balance in different conditions |
|
Standard
tripod screw holes |
|
Analytics
API: Enterprises and third-party software providers can obtain
people-counting data for better understanding of meeting-space
usage |
|
Motorized
Pan and Tilt Movement |
Pan:
160 |
|
Tilt:
+90 (up) -30 (down) |
|
10
camera presets (through remote control) |
|
Quiet
and smooth pan and Tilt movement |
|
Connectivity |
12V
power adaptor |
|
Mini
DIN6 for RS232 connection |
|
USB
Type C connector |
|
Video
format |
YUV,
MJPEG |
|
USB |
2.0,
3.1 Gen1 |
|
UVC
(USB Video Class) 1.1 |
|
Control |
IR
remote control |
|
VISCA/pelco
P/pelco D via RS232 |
|
UVC/
plug-and play |
|
PTZapp |
|
Security
and mount |
Camera
mount included for wall or ceiling |
|
Kensington
slot |
|
System
requirement* |
Windows
7/8/8.1/10 |
|
Mac
OS X 10.7 or higher |
|
Google
Chromebook version 29.0.1547.70, Platform
4319.79.0 |
|
Hardware
Spec* |
2.4GHz
Intel Core 2 Duo processor |
|
2GB
RAM or more |
|
USB
3.1 Gen1 port |
|
PTZapp
applicationpp |
Compatible
with SkypeTM Plugin for answering and hanging up via remote
control |
|
Upgrade
firmware automatically or manually |
|
Control
camera |
|
Set
parameters and adjust camera ima |
|
Diagnose
operating status |
|
View
live video |
|
Free
download on Windows and Mac computer |
|
Power
supply |
AC
100V ~240V, 50/60Hz, 3 meters |
|
Consumption:
12V, 2A |
|
Environmental
data |
Operation
temperature: 0 ~40C |
|
Operation
humidity: 20% ~80% |
|
Storage
temperature: -20 ~60C |
|
Storage
humidity: 20% ~80% |
|
Dimension |
Package
dimensions: 227*189*261mm |
|
Package
weight: 2.54 kg |
|
Camera:
97.8 x 130.7 x 171.1 mm/1.5kg |
|
Remote
control: 200 x 50 x 21 mm/0.09kg |
|
Package
contents |
Camera |
|
Remote
control |
|
Power
adapter |
|
USB3.1
type-C to type-A (6ft) |
|
USB3.1
type-A to type-C adapter |
|
Quick-start
guide |
|
Metal
mount, tripod screw |
|
Battery |
|
Optional
accessories |
Mini
DIN6 to RS232 adapter |
|
16ft
USB 2.0 cable |
|
Warranty** |
Camera
: 3+2 year |
|
Accessories:
1 year |
|
Compatible
Applications |
Adobe
Connect, Blue Jeans, CyberLink U Meeting, Cisco WebEx, Google Hangout,
GoToMeeting, Intel Unite, Microsoft Lync, Skype,Skype for
Business, V-Cube, vMix, WebRTC, Wirecast, XSplit,
ZOOM |
