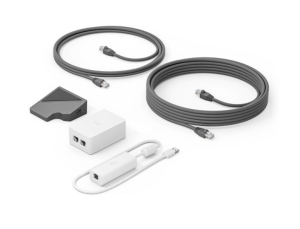

Logitech Cat5e Kit for Logitech Tap - White
Overview
Cat5e cabling kit to supply USB data and power to Logitech Tap for cleaner
and simpler cable routing
SIMPLIFIED CABLING FOR LOGITECH TAP
Now, you can locate Logitech Tap nearly anywhere in your meeting rooms. With
the Cat5e Kit, connect Tap up to 40 meters away from the meeting room computer
with data and power carried over category cable.
DATA MEETS POWER
When connected to the meeting room computer with a USB cable, Tap needs its
own power supply. But since the Cat5e Kit delivers both power and data over
category cable, there's no need to find an outlet at the table.
FLEXIBLE CABLING
Use the 10 meters of cable included with the Cat5e Kit or supply your own
cabling for runs of up to 40 meters. Cat5e allows for precise cable lengths,
reducing clutter beneath tables.
COMPATIBLE WITH ALL TAP MOUNTS
Designed specifically for Logitech Tap, the Cat5e Kit works with the Table,
Riser, and Wall Mounts, keeping cables out of the way and hidden from view.
Specifications
|
DIMENSIONS |
|
|
Logitech
Tap Receiver |
Height:
29 mm |
|
Width:
83 mm |
|
Depth:
85 mm |
|
Dongle
Transceiver (Dongle) |
Height:
22.5 mm |
|
Width:
31.0 mm |
|
Depth:
83.7 mm |
|
Cable
length: 500 mm |
|
Power
supply |
Height:
91.0 mm |
|
Width:
60.2 mm |
|
Depth:
36.3 mm 1Without Plug |
|
Included
Cabling (Two Cables) |
|
Length:
2.97 m |
|
Length:
7.0 m |
|
SYSTEM
REQUIREMENTS |
|
|
Meeting
Room Equipment |
Touch
Controller: Logitech Tap |
|
Meeting
Room Computer: Windows 10 64-bit or Chrome OS 80 or higher with USB 2.0
port or higher |
|
Customer-Supplied
Cabling |
Cable
Type: Cat5e or higher (up to 40 meters in total
length) |
|
TECHNICAL
SPECIFICATIONS |
|
|
General |
Cable
Type: Cat5e SF/UTP AWG26 or higher |
|
Power
supply: 100-240V auto-switching power supply with international adaptor
set |
|
Compatibility |
Touch
Controller: Logitech Tap |
|
Meeting
Room Computer: USB 2.0 port or higher |
|
Logitech
Tap Receiver |
|
Dongle
Transceiver |
|
100-240v
Power Supply with International |
|
International
Adaptor Set |
|
2.97
m Cat5e Cable |
|
7.0
m Cat5e Cable |
|
Documentation |
|
WARRANTY
INFORMATION |
2-Year
Limited Hardware Warranty |
|
PART
NUMBER |
952-000019 |
