All stock codes associated to this product
960-001315, 960001315, 5131355

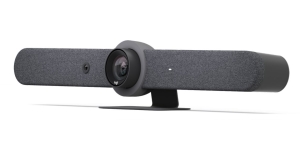

Logitech Rally Bar - Graphite
Overview
SIMPLE TO USE
Start your meeting with just one touch, seamlessly connecting Rally Bar to
your preconfigured room solution.
LOOKS BRILLIANT
Upgrade the meeting experience with cinema-quality video, outstanding color,
and exceptional optical accuracy.
STAYS FOCUSED
Using AI, human perception, and motorized PTZ, Rally Bar adapts to meeting
dynamics and keeps the camera on the action.
SOUNDS AWESOME
Rally Bars advanced audio engineering delivers powerful, room-filling sound
and makes sure every voice is clearly heard.
EXPAND THE CONVERSATION
Easily accommodate larger groups and spaces, starting with a 4.57 m mic
pickup range and the option to extend up to three Rally mic pods (varies by
environment).
SUPER SMART
Keep the focus on meeting participants with AI Viewfinder, which uses scene
awareness to optimize RightSight auto-framing and camera control.
AI-DRIVEN INSIGHTS
Track room usage data from the Logitech Sync Dashboard, captured by AI
Viewfinders people count function.
SIMPLE TO MANAGE
Monitor and manage your meeting room devices from one single platform with
Logitech Sync. Plus, get business insights into how your rooms are being
used.
DEVICE MANAGEMENT TECHNOLOGY PARTNERS
Our integration with partner solutions and
dashboards means you can easily manage your devices in other
platforms.
REDUCE YOUR CARBON FOOTPRINT
Support remote workers and reduce business travel by replacing in-person
meetings with video meetings that are as natural as face-to-face.
WELCOME TO THE FAMILY
Explore Logitechs beautifully simple, next generation of small, medium, and
large room solutions that can be deployed in PC or appliance mode.
Specifications
|
DIMENSIONS |
Height:
164 mm |
|
Width:
910 mm |
|
Depth:
130.5 mm 2Camera adds 28.8mm to the
depth. |
|
Weight:
7.08 kg |
|
TECHNICAL
SPECIFICATIONS |
|
|
Camera |
Resolution:
4K, 1440p, 1080p, 900p, 720p, and SD at 30fps |
|
Pan:
Motorized 25 |
|
Tilt:
Motorized 15 |
|
Zoom:
15X HD zoom (5X optical, 3X digital available with upcoming software
update) |
|
Diagonal
field of view (dFoV): 90 |
|
Horizontal
Field of View: 82.1 |
|
Vertical
Field of View: 52.2 |
|
Total
Room Coverage: 132.1 Horizontal x 82.2
Vertical |
|
Speakers |
Drivers:
2x 70 mm |
|
Output:
90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at
meter |
|
Sensitivity:
90+/-3dB SPL at 1W, meter |
|
THD:
1kHz < 2% |
|
Speaker
Sampling Rate: 48 kHz |
|
Microphones |
Frequency
response: 90Hz 16kHz |
|
Sensitivity:
>-36dBFS +/-1 dB @ 1Pa |
|
Microphone
data rate output: 48 kHz |
|
Pickup
Range: 4.5 m |
|
Beamforming
Elements: Six omnidirectional digital MEMS microphones forming five
adaptive acoustic broadside beams |
|
Audio
processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity
Detector) |
|
Noise
suppression: AI filter |
|
Add-on
Mics: Supports up to 3 additional Rally Mic Pods for larger conference
rooms |
|
RightSense
Technologies |
RightLight:
Renders natural skin tones for each
participant. |
|
RightSight:
Maintains persistent room awareness and detects human figures to
auto-frame participants. |
|
RightSound:
Distinguishes speech from other sounds to auto-level voices while
suppressing background noise and echo |
|
Interfaces |
HDMI
Out: 2 |
|
HDMI
In: 1 |
|
USB
3.0: 3x Type A, 1x Type C |
|
Network:
10/100/1G Ethernet |
|
WiFi:
802.11a/b/g/n/ac (MIMO) |
|
External
Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally
Mic Pod Hub, and Rally Mic Pod Extension
Cable) |
|
Remote
Control: Bluetooth Low Energy |
|
Power
& Cables |
Power
supply: Auto-sensing |
|
Operating
Voltage/Power: 100-240V, 19V, 4.74A |
|
Power
Supply Dimensions: 127 mm x 51 mm x 30 mm |
|
DC
Cable: 1.5 m |
|
AC
Cable: 1 m |
|
HDMI
1.4 Cable: 2 m |
|
USB
A to USB C 3.0 Cable: 2.2 m |
|
Environmental |
Operating
Temperature: 0 to 40C |
|
Storage
Temperature: -40 to 70 C |
|
Humidity:
10 to 95% |
|
BTU/hr:
57 idle, 64 in meeting |
|
Security |
Full
Disk Encryption: AES-128 |
|
Data
Encryption: Symmetric Keys, PKI |
|
Device
Identity: Protected by device attestation |
|
Device
Access: Authenticated using API |
|
Key
Protection: Arm TrustZone, RPMP |
|
Certifications
& Compatibility |
Certifications:
Zoom Certified, Certified for Microsoft Teams as a USB device. Contact the
manufacturer for additional information on pending and granted
certifications. |
|
Compatibility:
Plug and play USB connectivity with virtually any video conferencing
application |
|
Appliance
mode: Supports compatible video conferencing software in appliance mode
(no PC required), including Zoom Rooms
Appliances. |
|
Certification
pending for Microsoft Teams Rooms on Android and additional video
conferencing platforms. |
|
GENERAL
SPECIFICATIONS |
Built-in
Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI
Viewfinder, cable management & retention system, table stand, Logitech
CollabOS platform |
|
Enclosure:
All-in-one enclosure with integrated table stand and patented speaker
suspension system to eliminate vibration-induced camera shake and audio
interference |
|
Device
Management: Logitech Sync |
|
Displays
Supported: 2 |
|
Display
Resolution: Up to 4K |
|
Accessories |
Mounts:
Wall Mount for Video Bars, TV Mount for Video
Bars |
|
Audio:
Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod
Extension Cable |
|
Connectivity:
Logitech Strong USB (10 m, 25 m, 45 m) |
|
Touch
Controller: Logitech Tap |
|
Rally
Bar |
|
Power
supply |
|
AC
power cord |
|
HDMI
cable |
|
USB
cable |
|
Remote
control |
|
Lens
caps for main camera and AI Viewfinder |
|
User
documentation |
|
WARRANTY
INFORMATION |
Standard:
2-year limited hardware warranty included Extended: Additional one-year
extended warranty available at the time of hardware purchase. Contact your
reseller for availability. |
|
PART
NUMBER |
960-001315 |
