All stock codes associated to this product
CA1Q200M1WN00, CA-1Q2-00M1WN-00

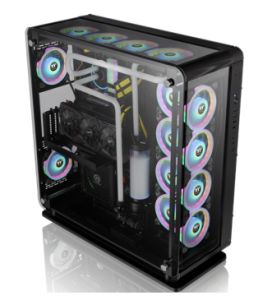

Thermaltake Core P8 Tempered Glass Full Tower Chassis
Overview
The Core P8 TG is a transformable E-ATX Full Tower Chassis that can be either
used as a closed or open styled case with Tt LCS Certification.
All combine in one, the Core P8 Tempered Glass Full Tower Chassis can be
transformed between the two forms effortlessly and is the newest member to the
Thermaltake iconic open frame Core Series. The Core P8 TG features a fully
modular design, Rotational PCI-E Slots, support for 120mm or 140mm fans, and
removable filters, remarkable expansion for high-end PC components. The Pacific
Core P5 DP-D5 Plus Distro-Plate with pump combo is also installable with this
case, giving you plenty of options to display your liquid cooling. The Core P8
TG is a great fit for users who are looking for a unique PC case.
TT Premium
To continue achieving the corporate mission of delivering the perfect user
experience, Thermaltake developed TT Premium with the essence of combining
supreme quality products with a new logo design. TT Premium is far more than
just a guarantee of quality. Behind the name, it represents the passion in DIY,
Modding and Thermaltakes desire to be the most innovative brand in the PC
hardware market. To satisfy the demand of the high-end PC users, TT Premium
follows its core values of Excellent Quality, Unique Design, Diverse
Combinations and Boundless Creativity to provide a high performance PC product
for every enthusiast.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only
products that pass the design and hardcore enthusiasts standards that a true LCS
chassis should be held to. The Tt LCS certification was created so that we at
Thermaltake can designate to all power users which chassis have been tested to
be best compatible with extreme liquid cooling configurations to ensure you get
the best performance from the best features and fitment.
Built for Makers
By practicing and incorporating the idea of the maker movement as well as 3D
printing, Thermaltake designs the open frame panoramic viewing chassis as anyone
can access and do his/her own mods as well as print out his/her own ideas using
available liquid cooling components and manuals without boundaries. Users can
download 3D printing accessory files on 3D Makers Microsite, printing them out
to do a special mod.
Transformable Full Tower Chassis
The Core P8 TG can be transformed into an open frame chassis once the front
and top tempered glass panels are removed.
4mm Thick Tempered Glass Window with Stunning
Viewing
The Core P8 TG features three 4mm thick tempered glass panels which are
designed to meet the highest standards in the industry. The enlarged glass
windows permit users to fully display every RGB component in the system, and
show off their dedication and skill sets.
Two-Way Placement Layout
The Core P8 TG is designed for use in two different ways: Wall-mount and
vertical placement. Built for customization that reflects the makers
personality, it allows for adjustments to the chassis for the best viewing
presentation while ensuring outstanding cooling performance. Users can hang it
on the wall as decoration, take it to wherever they want and display the nice
builds vertically.
Rotational PCI-E Slots
Rotational PCI-E slots give you the option to display your graphics card
either horizontally or vertically, creating plenty of flexible space for your
system.
Thermaltake TT Premium PCI-E 3.0 Extender (Optional) Supports a wide range of
GPU solutions with ultra-excellent quality. Features like, extreme high-speed
cable with highly-routable design, EMI shielding with conducting polymer are
crafted for meeting the most demanding system. Available in 300mm, 600mm and
1000mm length.
Dust Reduction
Three super fine magnetic filters on the right, top, and at the bottom are
designed to provide excellent protection against dirt and dust from the outside
of the case and is easily removable for cleaning.
Expansion and Liquid-Cooling Solution
The Core P8 TG has excellent expandability which helps users build a complete
thermal solution. It can support up to an E-ATX motherboard, a CPU cooler with a
maximum height of 180mm, two-way VGA placement of up to 320mm in length (without
reservoir), a power supply with a length of up to 200mm, and up to six 2.5 SSD
or three 3.5 HDD. When it comes to cooling solution, the Core P8 TG is optimized
for air cooling and advanced AIO/DIY liquid cooling components as well. For
example, you can either house up to 18 x 120mm radiator fans in total or have
our Pacific Core P5 DP-D5 Plus Distro-Plate with Pump Combo to build an
eye-catching and advanced liquid-cooled PC. With the remarkable hardware
expansion and liquid cooling support, the Core P8 TG has endless possibilities
for users to build their dream machine.
Handy I/O Ports
Two 3.0 USB, two 2.0 USB, and one USB 3.1 (Gen 2) Type C port placed at the
front-right panel to grant direct access when needed.
DMD Dismantlable Modular Design
The Core P8 TG enables user to freely build the system from the ground up
with given modular panels, racks, brackets, and pre-design mounting arrays. No
more unreachable screw corners or gaps and enjoys installation in a breeze with
Dismantlable Modular Design.
Specifications
P/N |
CA-1Q2-00M1WN-00 |
SERIES |
Core |
MODEL |
Core
P8 TG |
CASE
TYPE |
Full
Tower |
DIMENSION
(H x W x D) |
660
x 260 x 626 mm |
(26
x 10.24 x 24.65 inch) |
NET
WEIGHT |
22.6
kg / 49.8 lbs |
SIDE
PANEL |
Tempered
Glass x 3 (4mm thickness) |
COLOR |
Black |
MATERIAL |
SPCC |
DRIVE
BAYS |
|
-ACCESSIBLE |
1
x 2.5" (with Pump Bracket) |
-HIDDEN |
3
x 3.5" or 6 x 2.5" (With HDD Bracket) |
ExPANSION
SLOTS |
8 |
MOTHERBOARDS |
6.7"
x 6.7" (Mini ITx), 9.6" x 9.6" (Micro ATx), |
12"
x 9.6" (ATx), 12" x 13"(E-ATx) |
I/O
PORT |
1
x USB 3.1 (Gen 2) Type C, 2 x USB 3.0, x 2 USB 2.0, 1 x HD
Audio |
PSU |
Standard
PS2 PSU (optional) |
FAN
SUPPORT |
Front:
4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x
120mm |
3
x 140mm or 2 x 140mm or 1 x 140mm |
Top:
4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x
120mm |
3
x 140mm or 2 x 140mm or 1 x 140mm |
Rear:
1 x 120mm or 2 x 120mm , |
Right:
4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x
120mm |
3
x 140mm or 2 x 140mm or 1 x 140mm |
Bottom:
4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x
120mm |
3
x 140mm or 2 x 140mm or 1 x 140mm |
RADIATOR
SUPPORT |
Front:
1 x 480mm or 1 x 360mm or 1 x 240mm or 1 x
120mm |
1
x 420mm or 1 x 280mm or 1 x 140mm |
Top:
1 x 360mm or 1 x 240mm or 1 x 120mm |
1
x 280mm or 1 x 140mm |
Right:
1 x 480mm or 1 x 360mm or 1 x 240mm or 1 x
120mm |
1
x 420mm or 1 x 280mm or 1 x 140mm |
Bottom:
1 x 240mm or 1 x 120mm (With P5 DP-D5 ) , |
CLEARANCE |
CPU
cooler height limitation: 180mm |
VGA
length limitation: 280mm (With Reservoir) |
320mm
(Without Reservoir) |
PSU
length limitation: 200mm |
