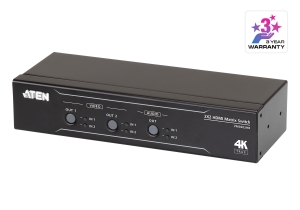

Aten VM0202HB 2 x 2 True 4K HDMI Matrix Switch with Audio
De-Embedder
Overview
- Connects 2 HDMI sources to any 2 HDMI displays
- Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and
HDR
- Audio de-embedder HDMI audio can be extracted to stereo or Lineout
audio
- Auto switching automatically detects and switches to a new source once
connected (Default: off)
Specifications
|
Video
Input |
|
Interfaces |
2
x HDMI Type A Female (Black) |
|
Impedance |
100
|
|
Max.
Distance |
5.0
m |
|
Video
Output |
|
Interfaces |
2
x HDMI Type A Female (Black) |
|
Impedance |
100
|
|
Max.
Distance |
5.0
m |
|
Video |
|
Max.
Data Rate |
18.0
Gbps (6.0 Gbps Per Lane) |
|
Max.
Pixel Clock |
600
MHz |
|
Compliance |
HDMI
(3D, 4K, Deep Color) |
|
HDCP
2.2 Compatible |
|
Consumer
Electronics Control (CEC) |
|
Max.
Resolution |
Up
to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
|
Max.
Distance |
Up
to 5.0 m |
|
Audio |
|
Output |
1x
Mini Stereo Jack Female; 1x Captive Screw Connector, 3
pole |
|
Control |
|
USB |
1
x Micro USB |
|
F/W
upgrade |
|
RS-232 |
Connector:
1 x DB-9 Female (Black) |
|
Baud
rate and protocol: |
|
Baud
Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control:
No |
|
IR |
1
x Mini Stereo Jack Female (Black) |
|
EDID
Settings |
EDID
Mode: Default / Port1 / Remix |
|
Connectors |
|
Power |
1
x DC Jack (Black) |
|
Power
Consumption |
DC5V:2.47W:11BTU |
|
Environmental |
|
Operating
Temperature |
0-40C |
|
Storage
Temperature |
-20
- 60C |
|
Humidity |
0
- 80% RH, Non-Condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.60
kg ( 1.32 lb ) |
|
Dimensions
(L x W x H) |
20.00
x 7.60 x 4.20 cm |
|
(7.87
x 2.99 x 1.65 in.) |
|
Carton
Lot |
5
pcs |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
