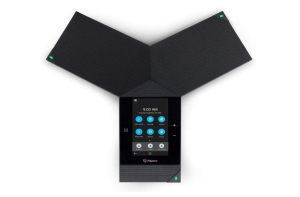

2200-66070-001 | Poly Trio 8800 IP Conference Phone

Poly Trio 8800 IP Conference Phone

Overview

• Legendary voice quality for the clearest and richest audio experience in a conference phone
• Accelerate user adoption by pairing your own portable devices (BYOD) via USB, Bluetooth/NFC or IP
• Intuitive icon-based interface is familiar, minimizes mistakes, and speeds connection with onetouchjoin
• Conveniently manage and provision using Polycom RealPresence Resource Manager
• Hybrid registration support for connecting up to three platformssimultaneously
• Easily adapts to content and business-grade video conferencingsolution

Specifications

User interface features

• Gesture-based, multitouch-capable capacitive touch screen
• 5-inch color LCD (720 x 1280 pixel), 9:16 aspect ratio
• On-screen virtual keyboard
• 1 USB 2.0 Type A-compliant port USB battery charging BC1.2 compliant (requires full Class 4 power input on LAN IN for operation)
• 1x USB 2.0 Micro-B device port for use as USB audio device
• Integrated Bluetooth 4.0 and NFC
• 3 multicolored capacitive-touch mute indicators
• Unicode UTF-8-character support
• User interface localized in Arabic, Chinese, Danish, Dutch, English (Canada/ US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish and Swedish

Audio features

• 3 cardioid microphones
• Loudspeaker
  • Frequency: 100-22,000 Hz
  • Volume: 92 dB at 0.5-m peak volume
• 6-m/20-foot microphone pickup range
• Supported codecs:
  • G.711 (A-law and -law)
  • G.719
  • G.722, G722.1, G722.1C
  • G.729AB
  • Polycom Siren 7, Siren 14
  • iLBC (3.33Kbps and 15.2Kbps)
  • Opus (8Kbps - 24Kbps)
  • SILK
  • Polycom Acoustic Clarity technology provides full-duplex conversations, acoustic echo cancellation and background noise suppression Type 1 compliant (IEEE 1329 full duplex)
• Polycom NoiseBlock
• Voice activity detection
• Comfort noise generation
• DTMF tone generation (RFC 2833 and in-band)
• Bluetooth device pairing for wideband speech and multimedia streaming (HFP/AD2P)
• Low-delay audio packet transmission
• Adaptive jitter buffers
• Packet loss concealment

Call handling features

• Up to 3 lines (max. one Skype forBusiness)
• Shared call/bridged line appearance
• Distinctive incoming call treatment/call waiting
• Call timer and call waiting
• Call transfer, hold, divert (forward), pickup
• Called, calling, connected-party information
• One-touch speed dial and meetingjoin
• Local 5-way audio conferencing
• Do-not-disturb function
• Local configurable digit map/dial plan
• Corporate directory access using LDAP
• Visual conference management

Network and provisioning

• Open SIP and Skype for Business
• IETF SIP (RFC 3261 and companion RFCs)
• Two-port gigabit Ethernet switch
  • 10/100/1000Base-TX across LAN and 2nd port
  • 2nd port supports IEEE 802.3af PSE
• Wi-Fi network connectivity
  • 2.4 2.4835 GHz (802.11b, 802.11g, 802.11n HT-20)
  • 5.15 5.825 GHz (802.11a, 802.11n, HT-20, 802.11n HT-40)
• Manual or dynamic host configuration protocol (DHCP) network setup
• Time and date synchronization using SNTP
• FTP/TFTP/HTTP/HTTPS server-based central provisioning
• RealPresence Resource Manager (v. 10.1 or above) based provisioning
• Polycom Zero Touch Provisioning
• Provisioning and call server redundancy support
• QoS support
  • IEEE 802.1p/Q tagging (VLAN), layer 3 TOS, and DSCP
  • WMM (Wi-Fi multimedia)
• VLAN CDP, DHCP VLAN discovery
• LLDP-MED for VLAN discovery

Security

• 802.1X authentication and EAPOL
• Media encryption via SRTP
• Transport layer security (TLS) v 1.2
• Encrypted configuration files
• Digest authentication
• Password login
• Support for URL syntax with password for boot server address
• HTTPS secure provisioning
• Support for signed software executables
• Wi-Fi encryption: WEP, WPA-Personal, WPA2-Personal, WPA2-Enterprise with 802.1X (EAP-TLS, PEAP-MSCHAPv2)

Power

• LAN IN: Built-in auto-sensing IEEE 802.3at. PoE Device (Class 4) (requires full Class 4 power input on LAN IN for operation). Backward compatibility with IEEE 802.3af
• LAN OUT: Built-in auto-sensing IEEE 802.3af power sourcing equipment (requires full Class 4 power input on LAN IN for operation)
