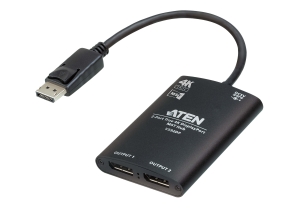

Aten VS92DP 2-Port True 4K DisplayPort MST Hub
Overview
- Distributes one True 4K source to two DisplayPort displays at the same
time
- Allows Multi-Stream Transport (MST) Mode for multitasking
- DisplayPort 1.2; HDCP 1.3 compliant
High quality and durable aluminum enclosure
Designed with a cost effective, yet advanced DisplayPort MST solution in
mind, the ATEN VS92DP 2-Port True 4K DisplayPort MST Hub allows the high-defi
nition video to be transmitted to two different locations without losing
quality. Productivity is enhanced with its feature that permits up to two
displays to be connected to a Windows-based laptop / PC. Meanwhile, users can
mirror the same image onto two displays or display independent content to each
display for multitasking.
The VS92DP supports up to 4K@60Hz (4:4:4) video resolution, HDR Dolby TrueHD
and DTS-HD Master Audio 7.1, ensuring distortionless and superb video / audio
quality. It is ideal for home theater systems, commercial settings, educational
centers, conference rooms, or any scenarios where high video quality is
needed.
Features
- Distributes one True 4K source to two DisplayPort displays at the same
time
- Allows for Single Stream Transport (SST) or Multi-Stream Transport (MST)
Mode
- Supports 4K resolution for dual output up to 3840 x 2160@30Hz
(4:4:4)
- DisplayPort 1.2; HDCP 1.3 compliant
- Provides Dolby TrueHD and DTS-HD Master 7.1 Audio channel
- High quality and durable aluminum enclosure
Diagram
Specifications
|
LEDs |
|
Status |
DisplayPort
Output x 2 (Blue) |
|
Power
Input x 1 (Blue) |
|
Video
Input |
|
Interfaces |
1
x DisplayPort Male (Black) |
|
Max.
Distance |
15cm |
|
Video
Output |
|
Interfaces |
2
x DisplayPort Female (Black) |
|
Max.
Distance |
Max
3m at 3840x2160@60Hz (4:4:4) - Single output |
|
Max
3m at 3840x2160@30Hz (4:4:4) - Dual output (MST/SST
mode) |
|
Video |
|
Max.
Data Rate |
21.6Gbps
(5.4Gbps per lane) |
|
Compliance |
DisplayPort
1.2 / HDCP 1.3 |
|
Max.
Resolution |
Up
to 3840x2160@60Hz (4:4:4, 8 bits) |
|
Power
Consumption |
2WATT(MAX)BTU |
|
Connectors |
|
USB
Port |
USB
Type Micro B x 1 (Firmware upgrade & power
source) |
|
Environmental |
|
Operating
Temperature |
0-40
C |
|
Storage
Temperature |
-20
- 60 C |
|
Humidity |
0
- 80% RH, Non-Condensing |
|
Physical
Properties |
|
Housing |
Metal
(aluminum) |
|
Weight |
0.09
kg ( 0.2 lb ) |
|
Dimensions
(L x W x H) |
8.80
x 6.00 x 15.00 cm |
|
(3.46
x 2.36 x 5.91 in.) |
|
Carton
Lot |
10
pcs |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
