All stock codes associated to this product
5HB12A, HP5HB12A

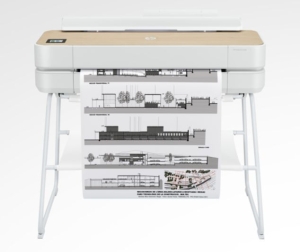

HP DesignJet Studio Wood Large Format Wireless Plotter Printer - 24",
with High-Tech Wood Design (5HB12A)
Overview
- 26 sec/page on D, 81 D prints per hour
- Dye-based (C, M, Y); pigment-based (K)
- Sheet feed, roll feed, automatic sheet feeder, media bin, automatic
horizontal cutter
- Compliant with Class B requirements, including: USA (FCC
rules)
Featuring a modern office design that compliments its environment and
performance to match. Print multi-size jobs easily with auto switching between
roll and tray. Enjoy high-speed printing as fast as 25 sec per A1/D plot.[5] 1
GB memory.AEC, GIS, and MCAD professionals who want to print maps, technical
drawings, posters, and renders with precise, accurate line quality and crisp
textThis is design that meets performance in the worlds easiest large-format
plotters.[1] Extreme simplicity helps you save time and print with confidence.
Send multiple files in one click.[4] Save time from job prep to final
print.Dynamic security enabled printer. Only intended to be used with cartridges
using an HP original chip. Cartridges using a non-HP chip may not work, and
those that work today may not work in the
future.https://www.hp.com/go/learnaboutsupplies
Fits the way you live
Design that performs, technology that stands out.Easily set up your plotter
using your smartphone.First net carbon neutral HP DesignJet
plotter.[2]
Extreme simplicity
Print multi-size A3/B and A1/D or A0/E projects automatically, without
manually switching the media source.Save time with the world's easiest job
submission[3]send multiple files in one click with HP Click.[4]Print with
confidence you'll get the results you expect with an intuitive driver and true
print preview.
Fits the way you work
Avoid waiting by the printer with high-speed printing as fast as 25 seconds
per A1/D plot.[5]Be more productivesave time from job prep to final print by
printing your projects up to 2X faster.[3]Print your jobs and manage your
plotter from virtually anywhere, anytime with the HP Smart app.Get high-quality
resultsHP Bright Office Inks plot up to 31% more line accuracy and up to 65%
more gamut.
Specifications
|
Functions |
Print |
|
Print
speed, maximum |
26
sec/page on D, 81 D prints per hour |
|
Resolution
(color) |
Up
to 2400 x 1200 optimized dpi |
|
Print
Technology |
HP
Thermal Inkjet |
|
Number
of print cartridges |
4
(C, M, Y, K) |
|
Product
disclaimer |
Dynamic
security enabled printer. Only intended to be used with cartridges using
an HP original chip. Cartridges using a non-HP chip may not work, and
those that work today may not work in the
future. |
|
Compatible
ink types |
Dye-based
(C, M, Y); pigment-based (K) |
|
Print
languages |
HP-GL/2,
HP-RTL, CALS G4, JPEG, URF |
|
Connectivity,
standard |
Gigabit
Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi
Direct |
|
Memory,
standard |
1
GB |
|
Hard
disk |
None |
|
Non-printable
area (cut-sheet) |
0.2
x 0.2 x 0.2 x 0.2 in |
|
Line
accuracy |
0.1%
|
|
Maximum
optical density (black) |
8
L* min/2.10 D |
|
Finished
output handling |
Sheet
feed, roll feed, automatic sheet feeder, media bin, automatic horizontal
cutter |
|
Media
sizes supported |
Auto
sheet feeder: A4, A3; manual feed: A4, A3, A2,
A1 |
|
Media
sizes, custom |
Auto
sheet feeder: 8.3 x 11 to 13 x 19 in; manual feed: 8.3 x 11 to 24 x 74.7
in |
|
Media
types |
Bond
and coated paper (bond, coated, heavyweight coated, plain, bright white,
blueprint), technical paper (natural tracing), film (clear, matte),
photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive
(adhesive, polypropylene) |
|
Media
sizes, standard |
11
to 24 in |
|
Roll
external diameter |
3.9
in |
|
Media
thickness |
Up
to 11.8 mil |
|
Power |
Input
voltage (auto ranging): 100-240 V (10%), 50/60 Hz (3 Hz), 1200 mA max. Not
dual voltage, power supply varies by part number with # Option code
identifier. |
|
Power
consumption |
<35
W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W
(standby) |
|
Operating
temperature range |
41
to 104F |
|
Warranty |
One-year
limited hardware warranty |
|
Software
included |
HP
Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP
DesignJet Utility for Windows, HP Support
Assistant |
|
Dimensions
(W X D X H) |
39.9
x 21.9 x 36.7 in |
|
Weight |
74.1
lb |
|
Package
weight |
94.8
lb |
|
What's
in the box |
HP
DesignJet Studio 24-in Printer, printer stand, automatic sheet feeder,
roll cover, printhead, introductory ink cartridges, spindle, quick
reference guide, setup poster, power
cord |
