Product
number |
5HB14A |
|
Functions |
Print |
|
PRINT
SPECIFICATIONS |
|
Print
technology |
HP
Thermal Inkjet |
|
Print
languages |
HP-GL/2,
HP-RTL, CALS G4, JPEG, URF |
|
Model
size |
914
mm |
|
Theoretical
minimum line width |
0.02
mm |
|
Line
accuracy |
0.1%[3] |
|
Print
speed |
25
sec/page on A1, 82 A1 prints per hour[1] |
|
Maximum
optical density (black) |
8
L* min/2.10 D[4] |
|
Print
quality color (best) |
Up
to 2400 x 1200 optimized dpi |
|
Non-printable
area (cut-sheet) |
5
x 5 x 5 x 5 mm |
|
Non-printable
area (roll media) |
5
x 5 x 5 x 5 mm |
|
Printer
drivers included |
Raster
driver for Windows and macOS |
|
Internal
Storage |
None |
|
Memory |
1
GB |
|
CONNECTIVITY
AND COMMUNICATIONS |
|
Connectivity,
standard |
Gigabit
Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi
802.11a/b/g/n |
|
POWER |
|
Power
Consumption Description |
<35
W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W
(standby) |
|
Power |
Input
voltage (auto ranging): 100-240 V (10%), 50/60 Hz (3 Hz), 1200 mA
max |
|
CARTRIDGES
AND PRINTHEADS |
|
Number
of print cartridges |
4
(C, M, Y, K) |
|
Print
cartridge volume delivered |
80
ml (K); 38 ml (K); 29 ml (C, M, Y) |
|
Print
heads |
1
(cyan, magenta, yellow, black) |
|
Print
head nozzles |
1376 |
|
Ink
drop |
5.5
pl (C, M, Y); 12 pl (K) |
|
Ink
types |
Dye-based
(C, M, Y); pigment-based (K) |
|
SUPPORTED
PRINTING MEDIA |
|
Finished
output handling |
Sheet
feed, roll feed, automatic sheet feeder, media bin, automatic horizontal
cutter |
|
Media
types |
Bond
and coated paper (bond, coated, heavyweight coated, plain, bright white,
blueprint), technical paper (natural tracing), film (clear, matte),
photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive
(adhesive, polypropylene) |
|
Media
sizes supported |
Auto
sheet feeder: A4, A3; manual feed: A4, A3, A2, A1,
A0 |
|
Media
sizes, custom |
Auto
sheet feeder: 210 x 279 to 330 x 482 mm; manual feed: 210 x 279 to 914 x
1897 mm |
|
Media
sizes standard (metric rolls) |
279
to 914 mm |
|
Media
width, maximum |
914
mm |
|
Media
weight, recommended |
60
to 280 g/m (roll/manual feed); 60 to 220 g/m (auto sheet
feeder) |
|
Media
thickness |
Up
to 11.8 mil |
|
Roll
external diameter |
100
mm |
|
Roll
maximum input |
1 |
|
Roll
maximum weight |
6.2
kg |
|
Recommended
media |
[5]
BMG trademark license code FSC-C115319, see https://www.fsc.org. HP
trademark license code FSC-C017543, see
https://www.fsc.org. |
|
Supported
Primary Applications |
CAD
rendering, Accurate line drawings for architects, Wide format printing,
Construction blueprint printing |
|
ENVIRONMENTAL |
|
Operating
temperature range |
5
to 40C |
|
Storage
temperature range |
-25
to 55C |
|
Operating
humidity range |
20
to 80% RH |
|
Non-Operating
Humidity Range |
0
to 95% RH |
|
Acoustic
power emissions |
5.8
B(A) (operating), <3.4 B(A) (idle) |
|
Acoustic
pressure emissions |
42
dB(A) (operating), <16 dB(A) (idle) |
|
DIMENSIONS
AND WEIGHT |
|
Dimensions
without stand (W x D x H) |
1317
x 555 x 932 mm |
|
Package
dimensions (W x D x H) |
1470
x 575 x 646 mm |
|
Weight |
41.7
kg |
|
Package
weight |
62
kg |
|
BOX
CONTENTS |
|
What's
in the box |

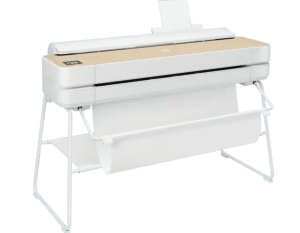

HP
DesignJet Studio 36-in Printer, printer stand, automatic sheet feeder,
roll cover, printhead, introductory ink cartridges, spindle, quick
reference guide, setup poster, power cord |
|
Software
included |
HP
Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP
DesignJet Utility for Windows, HP Support
Assistant |
|
WARRANTY |
|
Warranty |
3
Years Spare parts warranty, and 1 year onsite
services |
|
CERTIFICATION
AND COMPLIANCE |
|
ENERGY
STAR certified |
Yes |
|
Electromagnetic
Emission Standard |
Compliant
with Class B requirements, including: USA (FCC rules), Canada (ICES), EU
(EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC),
Japan (VCCI); Certified as Class B product: Korea
(KCC) |
|
Environmental
Certifications |
ENERGY
STAR; WEEE; EU RoHS; EAEU RoHS; REACH; ErP |
|
Safety
Approvals and Requirements |
USA
and Canada (CSA certified); EU (LVD, EN 60950-1 and EN 62368-1 compliant);
Russia, Belarus, Khazakstan (EAC); Ukraine (UA); Singapore (PSB); China
(CCC); Argentina (IRAM); India (BIS); Mexico
(NYCE) |
|
OTHER |
|
Web
address for additional information |
https://www.hp.com/go/designjetstudio |
|
Accessories |
B3Q37A
HP DesignJet 36-in Spindle |
|
Services
(Care Pack) |
UD5M4E
HP 2 year NBD Onsite Support;UD5M5E HP 3 year NBD Onsite Support;UD5M6E HP
4 year NBD Onsite Support;UD5M7E HP 5 year NBD Onsite Support;UD5M8PE HP 1
year Post Warranty NBD Onsite Support;UD5M9PE HP 2 year Post Warranty NBD
Onsite
Support |
