All stock codes associated to this product
W3Z71A, HPW3Z71A

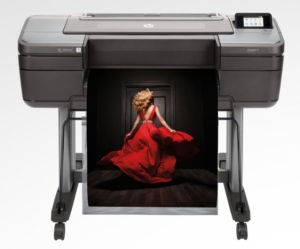

HP DesignJet Z9+ Large Format PostScript Photo Printer - 24", with
Spectrophotometer (W3Z71A)
Overview
- Color images: maximum print speed: 228 ft/hr
- HP Thermal Inkjet; 9 ink system
- Automatic roll feed, cut sheet feeder, 500 GB HDD, touchscreen
display
- FCC Class A emissions - for use in commercial environment
Specifications
|
Functions |
Print |
|
Print
speed, maximum |
Fast:
600 ft/hr on plain media; Normal: 144 ft/hr on coated media; Best: 38
ft/hr on glossy media |
|
Resolution
(color) |
Up
to 2400 x 1200 optimized dpi |
|
Print
Technology |
HP
Thermal Inkjet |
|
Number
of print cartridges |
9
(cyan, magenta, yellow, matte black, photo black, chromatic red, chromatic
green, chromatic blue, gray), optional gloss
enhancer |
|
Product
disclaimer |
Dynamic
security enabled printer. Only intended to be used with cartridges using
an HP original chip. Cartridges using a non-HP chip may not work, and
those that work today may not work in the
future. |
|
Compatible
ink types |
Pigment-based |
|
Print
languages |
Adobe
PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP-GL/2,
HP-RTL |
|
Mobile
Printing Capability |
Direct
print from mobile apps on iOS, Android and Chrome OS; email printing with
HP ePrint and HP Smart app for iOS and
Android. |
|
Connectivity,
standard |
Ethernet,
Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3,
802.3u, 802.3ab); Hi-Speed USB 2.0 certified interface for direct printing
from USB flash drive |
|
Network
ready |
Standard |
|
Memory,
standard |
128
GB (virtual) |
|
Hard
disk |
500
GB self-encrypting |
|
Non-printable
area (cut-sheet) |
0.2
x 0.67 x 0.2 x 0.2 in |
|
Guaranteed
minimum line width |
0.0031
in (ISO/IEC 13660:2001(E)) |
|
Line
accuracy |
0.1%
|
|
Color
stability |
<
1 dE2000 in less than 5 minutes |
|
Print
repeatability |
Average
< 0.5 dE2000, 95% of colors < 1.4 dE2000
|
|
Maximum
optical density (black) |
4
L* min/2.5 D |
|
Finished
output handling |
Roll
feed, top sheet feed, rear sheet feed for rigid media, media output bin,
automatic horizontal cutter |
|
Media
sizes supported |
A4,
A3, A2, A1 |
|
Media
sizes, custom |
8.3
x 11 to 24 x 66 in |
|
Media
types |
Photographic,
fine art printing material, self-adhesive, banner and sign, bond and
coated, backlit |
|
Media
sizes, standard |
8.3
to 24-in wide sheets; 11 to 24-in rolls |
|
Roll
external diameter |
5.3
in |
|
Media
thickness |
Up
to 31.5 mil |
|
Power |
Input
voltage (auto ranging): 100-240 V (10%), 50/60 Hz (3 Hz), 2 A
max |
|
Power
consumption |
<
100 W (printing); < 32 W (ready); < 0.3 W (< 6.5 W with embedded
Digital Front End) (sleep); 0.1 W (off) |
|
Operating
temperature range |
41
to 104F |
|
Mechanical
print time, US D color image, best mode,
glossy |
8.1
min/page |
|
Mechanical
print time, US D color image, normal mode,
glossy |
4.4
min/page |
|
Warranty |
1
year limited hardware warranty |
|
Software
included |
Printer
drivers, HP Click, HP Web Jetadmin, HP JetAdvantage Security Manager, HP
DesignJet Utility including HP Color Center, HP Partner Link Pay-per-use,
HP MPS |
|
Dimensions
(W X D X H) |
50.9
x 27.4 x 39.3 in |
|
Weight |
159
lb |
|
Package
weight |
225
lb |
|
What's
in the box |
HP
DesignJet Z9+ PostScript Printer; printheads; introductory ink cartridges;
printer stand and media bin; spindle; quick reference guide; setup poster;
power cord |
