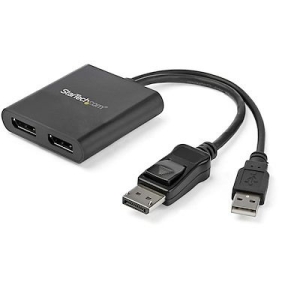

Startech 2-Port Multi Monitor Adapter - DisplayPort 1.2 MST Hub - Dual 4K 30Hz or 1080p - USB Bus Powered - Video Splitter for Extended Desktop Mode on Windows PCs Only - DP to 2x DP

Our Price:

$108.55

RRP:

~~$183.69~~

You Save:

$75.14

Qty:

Add To Cart

or quickly purchase this product

Buy Now

Backorder

Part Number:

498100

(?) Brand:

Startech

Manuf No:

MSTDP122DP

Shipping Weight:

0.3 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

Enter email address to be notified when this item is available again

Join waiting list

All stock codes associated to this product

MSTDP122DP, 2962704

Startech 2-Port Multi Monitor Adapter - DisplayPort 1.2 MST Hub - Dual 4K 30Hz or 1080p - USB Bus Powered - Video Splitter for Extended Desktop Mode on Windows PCs Only - DP to 2x DP

Overview

MULTI MONITOR ADAPTER FOR WINDOWS: Dual DisplayPort MST hub drives up to two DP displays in extended or duplicate mode using a DP port on Windows desktop PCs or laptops | Not compatible with macOS
DISPLAY RESOLUTION: Dual monitor DisplayPort MST hub supports resolutions up to 4K 30Hz (UHD) or 1080p 60Hz on both monitors, or can support two ultrawide displays up to 3440x1440
COMPATIBILITY: 2-Port DisplayPort MST video splitter works with laptops, computers or desktop graphics cards |Requires host system with DP 1.2/HBR2/MST or later from HP, Dell & Lenovo and AMD, Nvidia & Intel video cards
INCREASE PRODUCTIVITY: Increase productivity by extending your desktop at your workstation in the office/home office | MST technology uses your GPU/video card performance to deliver uncompressed video and use minimal system resources
EASY TO USE: Dual monitor adapter natively supports 2x DP monitors; Works w/Windows only and provides an easy driverless setup | Latching DisplayPort connector ensures a reliable connection and prevents accidental disconnection
CONVENIENCE: MST (multi-stream transport) hub is equipped with a built-in 7.5" (19cm) cable for video (DisplayPort) and 9.8" (25cm) USB-A cable for power (USB bus-powered) | Supports LPCM digital audio

Specifications

Compatibility	Windows 10 (32/64)
	Windows 8/8.1 (32/64)
	Windows 7(32/64)
Warranty Information
Warranty	3 Years
Connector(s)
1 - Connector A	DisplayPort (20 pin)
2 - Connector B	DisplayPort (20 pin)
Environmental
Operating Temperature	0C to 40C (32F to 104F)
Storage Temperature	-20C to 60C (-4F to 140F)
Humidity	50-90%
Hardware
Active or Passive Adapter	Active
AV Input	DisplayPort - 1.2
Ports	2
AV Output	DisplayPort - 1.2
Audio	Yes
Chipset ID	MegaChips - STDP4320
Packaging Information
Package Height	1.2 in [30.0 mm]
Package Length	6.8 in [17.2 cm]
Shipping (Package) Weight	4.7 oz [134.0 g]
Package Width	5.6 in [14.1 cm]
Performance
Audio Specifications	DisplayPort - 5.1 Channel Audio
Maximum Cable Distance To Display	6.6 ft [2 m]
Maximum Digital Resolutions	3840 x 2160 @30hz
Supported Resolutions	1024x768
	1280x720 (High-definition 720p)
	1920x1080 (High-definition 1080p)
	1920x1200
	2560x1440
	2560x1600
	3840 x 2160 (Ultra HD 4K) @30hz
Wide Screen Supported	Yes
Physical Characteristics
Weight of Product	1.8 oz [52.0 g]
Color	Black
Material	Plastic
Cable Length	7.5 in [19 cm]
Product Length	9.8 in [25.0 cm]
Product Width	2.3 in [58.0 mm]
Product Height	0.5 in [13.6 mm]
Power
Power Source	USB-Powered
Software
OS Compatibility	Windows 10 (32/64)
	Windows 8/8.1 (32/64)
	Windows 7(32/64)
Special Notes / Requirements
Note	DisplayPort 1.2 with MST+HBR2 support from the GPU is required for independent display output
What's in the Box
1 - Included in Package	2-port DP MST Hub
	Quick install guide

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
