All stock codes associated to this product
CDP2VGAUACP, 3494761

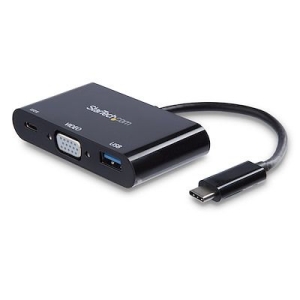

Startech USB-C VGA Multiport Adapter - USB 3.0 Port - 60W
PD
Overview
This USB-C VGA multiport adapter combines the capability of two
single-function adapters, a USB-C video adapter and USB-C to USB adapter, into a
portable docking station for your laptop. You can instantly connect to a VGA
display and a USB 3.0 (Type-A) device, while also powering and charging your
laptop using the same adapter.
Mobile Multitasking
With a secondary display connected to your laptop, you can multitask faster
and easier. The USB-C adapters VGA video output lets you create a dual-screen
workstation comprised of your laptops display and an additional VGA monitor or
projector, in a boardroom or other professional environment.
Powers and Charges Your Laptop
With USB Power Delivery, you can power and charge your laptop by simply
connecting the multiport adapter to your laptops USB Type-C port, then
connecting a USB Type-C power adapter.
Universal Compatibility
The USB-C multiport adapter features a built-in USB-C cable and works with
USB-C equipped MacBook, Chromebook and Windows laptops that support DisplayPort
(DP) Alt Mode and USB Power Delivery.
Rugged and Portable
Compact, lightweight design and rugged construction lets you take this USB-C
video adapter anywhere you take your laptop.
The StarTech.com Advantage for Docking
Stations
- Maximum compatibility - StarTech.com has a docking station to fit every
operating system, laptop brand, and connectivity need
- Get more done faster - More ports and more displays maximize end user
connectivity and productivity
- Quick installation - eliminate deployment headaches that waste time and
frustrate end users
- IT Grade quality - trusted by IT pros around the world for our rigorous
in-house product testing, robust compliance, and lifetime multilingual
technical support
The CDP2VGAUACP is backed by a StarTech.com 3-year warranty and free lifetime
technical support.
Specifications
|
Warranty
Information |
Warranty |
3
Years |
|
Connector(s) |
1
- Connector Type(s) |
USB
Type-C (24 pin) USB 3.0 (5Gbps) |
|
1
- Connector A |
USB-C
(24 pin) DisplayPort Alt Mode |
|
1
- Connector Type(s) |
VGA
(15 pin, High Density D-Sub) |
|
1
- Connector B |
VGA
(15 pin, High Density D-Sub) |
|
1
- Connector Type(s) |
USB
Type-A (9 pin) USB 3.0 (5 Gbps) |
|
1
- Connector B |
USB
Type-A (9 pin) USB 3.0 (5 Gbps) |
|
1
- Connector Type(s) |
USB-C
(24 pin) USB Power Delivery only |
|
1
- Connector B |
USB-C
(24 pin) USB Power Delivery only |
|
Environmental |
Operating
Temperature |
0C
to 45C (32F to 113F) |
|
Storage
Temperature |
-10C
to 70C (14F to 158F) |
|
Humidity |
5~90%
RH (Non-condensing) |
|
Hardware |
4K
Support |
No |
|
Fast-Charge
Port(s) |
No |
|
Displays
Supported |
1 |
|
Bus
Type |
USB-C |
|
Chipset
ID |
VIA/VLI
- VL100 |
|
VIA/VLI
- VL210 |
|
NXP
- PTN3355 |
|
Packaging
Information |
Package
Height |
1.3
in [34 mm] |
|
Package
Length |
6.7
in [17.1 cm] |
|
Shipping
(Package) Weight |
3.8
oz [109 g] |
|
Package
Width |
5.7
in [14.5 cm] |
|
Performance |
Maximum
Data Transfer Rate |
5
Gbps (USB 3.0) |
|
Maximum
Analog Resolutions |
2048
x 1280p @ 60Hz |
|
Lower
resolutions are also supported. |
|
Type
and Rate |
USB
3.0 - 5 Gbit/s |
|
UASP
Support |
Yes |
|
Physical
Characteristics |
Weight
of Product |
1.4
oz [39 g] |
|
Color |
Black |
|
Material |
Plastic |
|
Cable
Length |
5.5
in [14 cm] |
|
Product
Length |
3.1
in [80 mm] |
|
Product
Width |
1.6
in [40 mm] |
|
Product
Height |
0.6
in [15 mm] |
|
Power |
Power
Source |
USB-Powered |
|
Power
Delivery |
60W |
|
Special
Notes / Requirements |
System
and Cable Requirements |
A
host laptop with an available USB-C port (to ensure full adapter
functionality, the host USB-C port must support USB Power Delivery 2.0 and
DP alt mode). |
|
Note |
Not
all USB-C ports support the full functionality of the USB Type-C standard.
Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP
alt mode. |
|
System
and Cable Requirements |
The
multifunction adapter does not include a USB-C power
adapter. |
|
Optional:
the multifunction adapter can be used with a separate USB-C power adapter
(for example, your laptops USB-C based power
adapter). |
|
Note |
The
adapter can connect to a host laptops USB-C port that doesnt support USB
Power Delivery 2.0. However, in this configuration if a power adapter is
connected to the multifunction adapter, it will not pass power through to
your host laptop. |
|
|
USB
3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers
speeds up to 5Gbps. |
|
What's
in the Box |
1
- Included in Package |
USB-C
to VGA multifunction
adapter |
