All stock codes associated to this product
MDP2HD4K60S, 3493574
Startech Mini DisplayPort to HDMI Adapter - Active mDP 1.4 to HDMI
2.0 Video Converter - 4K 60Hz - Mini DP or Thunderbolt 1/2 Mac/PC to HDMI
Monitor/TV/Display - mDP to HDMI Dongle
Overview

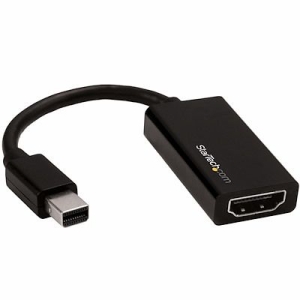

This Mini DisplayPort to HDMI adapter lets you output HDMI video and audio
from an mDP device, with support for Ultra HD 4K at 60Hz. The Mini DisplayPort
adapter is the perfect accessory for any of your Microsoft Surface Pro devices
with mDP.
Astonishing picture quality with support for Ultra HD 4K at 60 Hz
The adapter lets you harness the video capabilities that are built into your
Mini DisplayPort connection, to deliver the astonishing quality of UHD to your
4K 60Hz display. This makes it easier for you to multitask while using multiple
monitors to work on resource-demanding applications.
Unlike many 4K Mini DisplayPort to HDMI adapters that only support a 30Hz
refresh rate, this adapter works with HDMI 2.0 displays that can deliver output
resolutions of up to 3840 x 2160p at 60Hz. Support for HDMI 2.0 means this
adapter can support bandwidth up to 18Gbps, making it an ideal solution for
performing high-resolution tasks such as editing 4K video.
The adapter is backward compatible with 1080p displays, which ensures
compatibility with lower resolution displays such as TVs or projectors around
your home or office.
Ultimate portability with a compact, lightweight
design
The compact video adapter is highly portable and lightweight. Its the perfect
accessory for your portable mDP devices, fitting easily into your laptop bag or
carrying case.
The portable adapter is the perfect accessory for deployment with company
computers, enabling your employees to interface with BYOD (Bring Your Own
Device) HDMI applications around the office, such as working at a hot-desk with
an HDMI display or sharing your laptops screen on a boardroom
projector.
Hassle-free setup with an active adapter that features plug-and-play
installation
To ensure compatibility with any Mini DisplayPort output, the mDP adapter
offers active conversion. Active video conversion is required to maintain 4K
resolutions when converting Mini DisplayPort to HDMI. An active mDP adapter is
also ideal for outputting 1080p resolutions by ensuring compatibility with
graphics cards that are not capable of outputting multi-mode DP++ signals, such
as ATI Eyefinity cards.
For a hassle-free setup, the Mini DisplayPort to HDMI adapter allows for
plug-and-play installation without any additional software or
drivers.
Note: To achieve 4K resolution at 60 Hz a DisplayPort 1.2 output and an HDMI
2.0 display are required.
The MDP2HD4K60S is backed by a 3-year StarTech.com warranty and free lifetime
technical support.
Specifications
|
Warranty
Information |
Warranty |
3
Years |
|
Connector(s) |
1
- Connector A |
Mini-DisplayPort
(20 pin) |
|
1
- Connector B |
HDMI
(19 pin) |
|
Environmental |
Operating
Temperature |
5C
to 35C (41F to 95F) |
|
Storage
Temperature |
-25C
to 70C (13F to 149F) |
|
Humidity |
-25C
to 85C (77F to 185F) at 80% - 95% |
|
Hardware |
Active
or Passive Adapter |
Active |
|
AV
Input |
Mini
DisplayPort - 1.4 |
|
Ports |
1 |
|
AV
Output |
HDMI
- 2.0 |
|
Audio |
Yes |
|
Industry
Standards |
DPCP
(DisplayPort Content Protection) |
|
HDCP
2.2 (High Definition Content Protection) |
|
DisplayPort
1.2 |
|
HDMI
2.0 |
|
Chipset
ID |
Parade
- PS176 |
|
Package
Length |
8.7
in [22 cm] |
|
Shipping
(Package) Weight |
0.7
oz [20 g] |
|
Package
Width |
7.9
in [20 cm] |
|
Performance |
Audio
Specifications |
HDMI
- 7.1 Channel Audio |
|
Maximum
Cable Distance To Display |
23.0
ft [7 m] |
|
Maximum
Digital Resolutions |
4K
x 2K @ 60 Hz |
|
Supported
Resolutions |
4k
x 2K (Ultra HD) @ 60 Hz |
|
1920x1200 |
|
1920x1080
(1080p) |
|
1280x720
(720p) |
|
Wide
Screen Supported |
Yes |
|
Physical
Characteristics |
Weight
of Product |
0.4
oz [11 g] |
|
Color |
Black |
|
Cable
Length |
5.8
in [14.8 cm] |
|
Product
Length |
6.0
in [15.2 cm] |
|
Product
Width |
0.9
in [22 mm] |
|
Product
Height |
0.4
in [10 mm] |
|
Special
Notes / Requirements |
Note |
This
video adapter is not compatible with cables that use RedMere
technology. |
|
What's
in the Box |
1
- Included in Package |
Mini
DisplayPort to HDMI
adapter |
