All stock codes associated to this product
ARMQUAD, 3587611

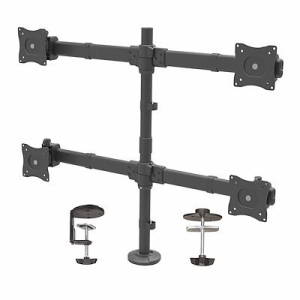

Startech Desk Mount Quad Monitor Arm - Ergonomic VESA 4 Monitor Mount
2x2 up to 27" - Articulating & Height Adjustable Pole Mount -
Tilt/Swivel/Rotate LCD/LED Screen - Desk Clamp/Grommet
Overview
Free up valuable space by mounting four monitors on one base, to suspend your
monitors above the surface of your desk, workstation or table. This sturdy
desk-mount quad-monitor arm is constructed of heavy-duty steel and will hold all
four displays securely in place to create an impressive and productive
workspace.
Enhance your productivity while saving space
Create the ultimate workstation by mounting four monitors on one base that
attaches securely to your desk, table or other surface. You can view multiple
screens at the same time to work more efficiently while freeing up space.
The quad-monitor arm offers enhanced productivity in numerous office and
commercial applications, such as banking and finance, letting you compare
documents and analyze data more effectively. Its also ideal for software
developers, programmers, CAD designers, and many other professionals. You can
also create engaging digital signage displays to communicate with your clients
or employees.
Rugged Steel Design
With its heavy-duty solid steel construction, the quad-monitor mount securely
holds your monitors and helps to ensure long-lasting performance. Each monitor
arm supports a flat-panel display from 13 to 27 (330 to 686 mm) in size and up
to 17.6 lb. (8 kg) in weight.
Adjust your monitors for ideal viewing
You can adjust the position and angle of your monitors for comfortable
viewing, with +30 to -30 swivel and tilt. The quad-monitor mount enables smooth
and effortless tilting, which makes it easy to reduce glare and find the ideal
viewing angle. For precise alignment, the monitor arm offers micro adjustments
that enable you to perfectly line up your displays.
Easy installation
The monitor mount supports four VESA mount compliant monitors and it's easy
to install using the desk clamp or grommet mount. To keep your cables neatly
tucked away, the quad-monitor arm features cable management clips that help to
keep your workstation tidy.
The ARMQUAD is backed by a StarTech.com 5-year warranty and free lifetime
technical support.
Specifications
|
Warranty
Information |
Warranty |
5
Years |
|
Hardware |
Articulating |
No |
|
Cable
Management |
Yes |
|
#
of Displays Supported |
4 |
|
Mounting
Options |
Desk
& Grommet Clamp |
|
Wallmountable |
No |
|
VESA
Hole Pattern(s) |
75x75
mm |
|
|
100x100
mm |
|
Mounting
Surface Thickness |
Desk
Clamp: Table Thickness 0.39 - 3.14 in. (10 - 80
mm) |
|
Grommet
Clamp: Table Thickness 0.39 - 3.14 in. (10 - 80
mm) |
|
Table
Hole for Grommet Mount: 0.41 - 1.96 in. (10.5 - 50
mm) |
|
Packaging
Information |
Package
Height |
5.0
in [12.7 cm] |
|
Package
Length |
15.0
in [38.2 cm] |
|
Shipping
(Package) Weight |
20.4
lb [9.2 kg] |
|
Package
Width |
18.9
in [47.9 cm] |
|
Performance |
Weight
Capacity (Per Display) |
17.7
lb [8 kg] |
|
Minimum
Display Size |
13" |
|
Maximum
Display Size |
27in |
|
Maximum
Height |
28.5
in [72.3 cm] |
|
Display
Tilt |
+
30 / - 30 |
|
Swivel
/ Pivot |
+30
/ -30 |
|
Display
Rotation |
360 |
|
Physical
Characteristics |
Weight
of Product |
16.7
lb [7.6 kg] |
|
Color |
Black |
|
Material |
Steel |
|
Product
Length |
32.9
in [83.5 cm] |
|
Product
Width |
4.5
in [11.5 cm] |
|
Product
Height |
32.6
in [82.8 cm] |
|
What's
in the Box |
4
- Included in Package |
monitor
arms |
|
|
VESA
monitor mounts |
|
1
- Included in Package |
lower
pole |
|
|
upper
pole |
|
|
pole
connector |
|
4
- Included in Package |
cable-management
clips |
|
|
end
caps |
|
|
thumbscrews |
|
1
- Included in Package |
desk
clamp |
|
|
3
mm hex key |
|
|
5
mm hex key |
|
16
- Included in Package |
M4x14
mm screws |
|
|
M5x14
mm screws |
|
|
washers |
|
1
- Included in Package |
grommet
collar |
|
|
grommet
plate |
|
5
- Included in Package |
rubber
pads |
|
1
- Included in Package |
instruction
manual |
