All stock codes associated to this product
CDP2DP, 3587613
Startech USB C to DisplayPort Adapter - 4K 60Hz/8K 30Hz - USB Type-C
to DP 1.4 HBR2 Adapter Dongle - Compact USB-C (DP Alt Mode) Monitor Video
Converter - Thunderbolt 3 Compatible
Overview

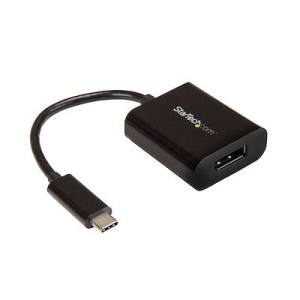

This USB-C to DisplayPort adapter enables you to output DP video and audio
from the USB Type-C port on your laptop or other device. The DP 1.4 adapter
works with USB-C devices that pass a DisplayPort (DP) video signal, such as your
MacBook Pro, Chromebook or 2018 iPad Pro. This enables you to connect your
DisplayPort display to your USB-C computer using a DisplayPort
cable.
Ultra HD 4K & 8K Resolution
The adapter lets you harness the video capabilities that are built into your
computer's USB Type-C connection, to deliver the astonishing quality of UHD to
your 4K 60Hz display. This makes it easier for you to multitask while working on
the most resource-demanding applications imaginable.
With this adapter, you can also achieve an output resolution of up to
7680x4320 at 30Hz, which is perfect for performing high-resolution tasks such as
viewing 8K video. Plus, the DP 1.4 adapter is backward compatible with 1080p
displays, which makes it a great accessory for home, office or other workspace
applications while future-proofing for 8K implementation.
Ultimate Portability
This USB Type-C video adapter is highly portable with a small footprint and
lightweight design that's easy to tuck into your laptop bag. The adapter is the
perfect accessory for connecting your MacBook Pro or Dell XPS to a DisplayPort
monitor or display in BYOD (Bring Your Own Device) applications at the
office.
Hassle-Free Connection with USB Type-C
This adapter lets you utilize the versatile USB Type-C port on your portable
device. USB Type-C is a reversible connector, so it doesn't matter which way you
plug it in, the adapter will always work, saving you the hassle and
embarrassment of adjusting your device when you're trying to deliver a
presentation.
The CDP2DP is backed by a 3-year StarTech.com warranty and free lifetime
technical support.
Notes
Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work
with this adapter
This adapter outputs a single-mode DisplayPort signal and will not work with
additional video adapters such as DisplayPort to HDMI, DisplayPort to VGA or
DisplayPort to DVI adapters
Specifications
|
Warranty
Information |
Warranty |
3
Years |
|
Connector(s) |
1
- Connector A |
USB-C
(24 pin) DisplayPort Alt Mode |
|
1
- Connector B |
DisplayPort
(20 pin) |
|
Environmental |
Operating
Temperature |
0C
to 45C (32F to 113F) |
|
Storage
Temperature |
-10C
to 70C (14F to 158F) |
|
Humidity |
10%-85%
RH |
|
Hardware |
AV
Input |
USB-C |
|
Ports |
1 |
|
AV
Output |
DisplayPort
- 1.4 |
|
Chipset
ID |
PERICOM
- PI3DPX1203 |
|
NXP
- PTN5100 |
|
Packaging
Information |
Package
Height |
0.6
in [16.0 mm] |
|
Package
Length |
8.9
in [22.5 cm] |
|
Shipping
(Package) Weight |
0.9
oz [26.0 g] |
|
Package
Width |
4.9
in [12.5 cm] |
|
Performance |
Audio
Specifications |
DisplayPort
- 7.1 Channel Audio |
|
Maximum
Cable Distance To Display |
6.6
ft [2 m] |
|
Video
Revision |
DisplayPort
1.4 |
|
Supported
Resolutions |
DisplayPort:
7680x4320 (8K) / 30Hz |
|
Wide
Screen Supported |
Yes |
|
Physical
Characteristics |
Weight
of Product |
0.6
oz [17.0 g] |
|
Color |
Black |
|
Cable
Length |
5.5
in [14 cm] |
|
Product
Length |
7.1
in [18.0 cm] |
|
Product
Width |
1.5
in [37.0 mm] |
|
Product
Height |
0.6
in [14.0 mm] |
|
Special
Notes / Requirements |
System
and Cable Requirements |
Your
USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to
work with this adapter. |
|
What's
in the Box |
1
- Included in Package |
USB-C
to DisplayPort adapter |
