All stock codes associated to this product
DP2DVI2MM6, 1617284, II33981

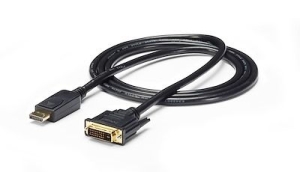

Startech 6ft (1.8m) DisplayPort to DVI Cable - 1080p Video -
DisplayPort to DVI Adapter Cable - DP to DVI-D Converter Single Link - DP to DVI
Monitor Cable - Latching DP Connector
Overview
The DP2DVI2MM6 6 ft DisplayPort to DVI Adapter Cable lets you connect a DVI
Display or Projector to a DisplayPort video card/source. Providing a connection
distance of 6ft, the cable features male DVI and DisplayPort connectors,
allowing you to make a direct video card-to-display connection, as opposed to
having to use an adapter with a separate cable.
The DP to DVI cable is a convenient, cost-effective solution for taking full
advantage of your DVI display, without the expense of upgrading to a DisplayPort
monitor. The cable offers high quality construction and supports high bandwidth
video resolutions up to 1920x1200 or HDTV resolutions up to
1080p.
DP2DVI2MM6 is a passive adapter that requires a DP++ port (DisplayPort++),
meaning that DVI and HDMI signals can also be passed through the port. Backed by
a StarTech.com 3-year warranty and free lifetime technical support.
Specifications
|
Warranty
Information |
Warranty |
3
Years |
|
Connector(s) |
1
- Connector A |
DisplayPort
(20 pin) |
|
1
- Connector B |
DVI-D
(25 pin) |
|
Environmental |
Operating
Temperature |
0C
to 45C (32F to 113F) |
|
Storage
Temperature |
-10C
to 80C (14F to 176F) |
|
Humidity |
10%-85%RH |
|
Hardware |
Active
or Passive Adapter |
Passive |
|
AV
Input |
DisplayPort
- 1.2 |
|
AV
Output |
DVI-D
- Single-Link |
|
Audio |
No |
|
Connector
Plating |
Gold |
|
Cable
Jacket Material |
PVC
- Polyvinyl Chloride |
|
Packaging
Information |
Package
Height |
1.2
in [31.0 mm] |
|
Package
Length |
8.7
in [22.0 cm] |
|
Shipping
(Package) Weight |
5.4
oz [152.0 g] |
|
Package
Width |
7.9
in [20.0 cm] |
|
Performance |
Audio
Specifications |
DVI
- No Audio Support |
|
Maximum
Digital Resolutions |
1920x1200
/ 1080p |
|
Physical
Characteristics |
Weight
of Product |
5.0
oz [143.0 g] |
|
Color |
Black |
|
Cable
Length |
6.0
ft [1.8 m] |
|
Product
Length |
6.0
ft [1.8 m] |
|
Product
Width |
1.6
in [40.0 mm] |
|
Product
Height |
0.6
in [15.0 mm] |
|
Special
Notes / Requirements |
Note |
DP++
(DisplayPort++) port is required on video card or video source for DVI and
HDMI pass-through. |
|
What's
in the Box |
1
- Included in Package |
6
ft DisplayPort to DVI Cable -
M/M |
