Simplecom CAH410 High Speed HDMI Cable with Ethernet - 1m

Simplecom CAH410 1M High Speed HDMI Cable with Ethernet (3.3ft)

Overview

• 4K@50/60, (2160p), which is 4 times the clarity of 1080p/60 video resolution
• Supports HDMI features including 4k resolution and 3D video, Deep Color and x.v. Color
• Dolby True HD, DTS-HD Master Audio and up to 32 audio channels for a multi-dimensional immersive audio experience
• Up to 1536kHz audio sample frequency for the highest audio fidelity
• Simultaneous delivery of dual video streams to multiple users on the same screen
• Simultaneous delivery of multi-stream audio to multiple users (up to 4)
• Support for the wide angle theatrical 21:9 video aspect ratio
• Dynamic synchronization of video and audio streams
• CEC extensions for control of consumer electronics devices through a single control point
• Gold plated connectors

The Simplecom High Speed HDMI with Ethernet Cable is perfect for home theatre or desktop audio video applications requiring high speed HDMI features and video resolutions up to 4k (2160p). The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection for accessing interactive online content or updating device firmware.

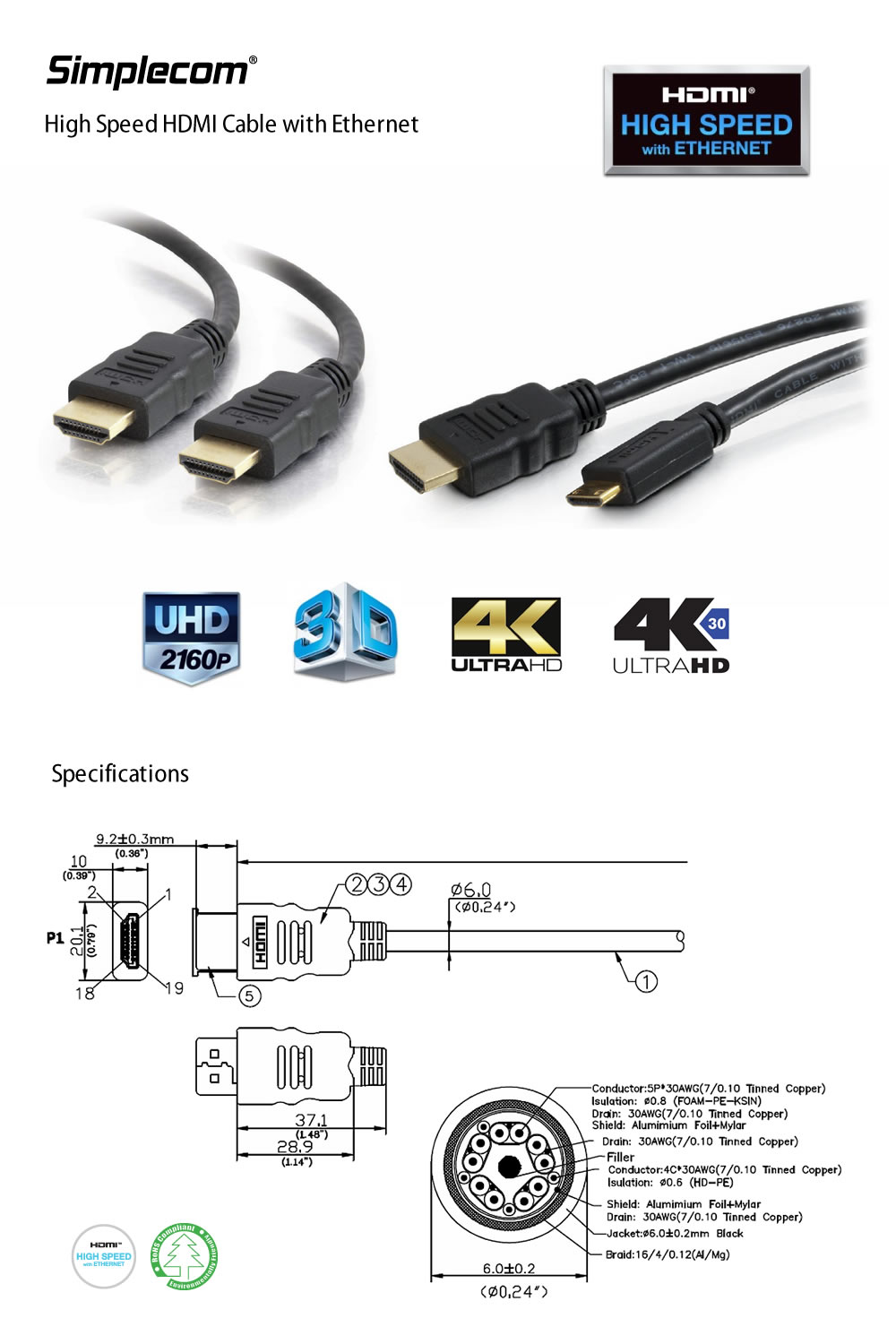

Specifications

• Nominal Velocity of Propagation - 10.2Gbps
• DC Resistance - 300V
• Dielectric Strength - AC 500V/minute
• Insulation Resistance - 100
• Nominal Attenuation - 300kHz-825MHz - <5dB, 825MHz-2.475GHz - <5dB, 2.475GHz-4.125GHz - <12dB, 4.125GHz-5.1GHz - <20dB
• HDMI (3D, Deep Color, x.v.Color, Dolby True HD, and DTS-HD Master Audio), Full 1080p resolution
• 4K@50/60, (2160p), which is 4 times the clarity of 1080p/60 video resolution
• 3D video, Deep Color and x.v. Color
• Dolby True HD, DTS-HD Master Audio and up to 32 audio channels for a multi-dimensional immersive audio experience
• Up to 1536kHz audio sample frequency for the highest audio fidelity
• High bandwidth (340 MHz/10.2 Gbps) for high speed data transfer
• HDMI-CEC system control compatibility
• HDMI Ethernet Channel (when used with HDMI Ethernet channel supported source and sync equipment).

Physical Characteristics

• Length - 1 Meter
• Drain Wire - 30AWG (07/0.10), Tinned Copper
• Foil Shield - Aluminum Foil, 100% Coverage
• Braided Shield - 16/4/0.12, Al/Mg
• Jacket - PVC, Black, O.D. - 6.0 0.2mm
• Connector Type - HDMI - Type A
• Pin Construction - Phosphor Copper
• Plating - 1m Gold
• Voltage Rating - 30V
• Minimum Bend Radius - 60
• Temperature Rating - 80C
• Operating Temperature Range - -20 - 80C
• Storage Temperature Range - -25 - 85C
• Approvals - RoHS Compliant
• Package Type Polybag
