All stock codes associated to this product
DPH12RFGL120TB, DP-H12RF-GL120TB, II41996

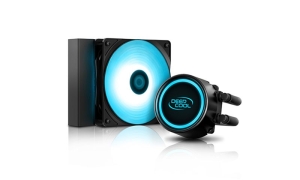

Deepcool Gammax L120T CPU Liquid Cooler
Overview
GAMMAXX L series AIO coolers are known for their powerful performance, neat
appearance, and tempting cost efficiency. The GAMMAXX L120T BLUE upgraded its
reliability with Anti-leak Tech Inside system, so users can enjoy extreme
processor performance without any leakage concerns.
After 3 years of R&D, DEEPCOOL launched the new standard of liquid
cooling system - The Anti-leak Tech.
The
technology helps the system achieve an automated pressure balance, which will
significantly improve operation safety of AIO liquid cooling systems. With this
technology, Deepcool is setting a new standard for liquid cooling systems.
Optimized Micro Water-channel
E-shaped micro water-channel design can effectively enhance the heat
circulation efficiency and enlarge the thermal contact area.
Blue LED Lighting
The brand new water block and fans are illuminated by static blue LEDs that
powered by a 4pin PWM header.
Support Mainstream Intel & AMD Socket
Ready for easy mounting and unrestricted direction installation on mainstream
sockets of Intel/AMD.
Features
- Anti-leak Tech Inside system equipped.
- E-shaped micro water-channel design can effectively enhance the heat
circulation efficiency and enlarge the thermal contact area.
- The brand new water block and 120mm PWM fans are illuminated by static
blue LEDs and powered by 4pin PWM headers.
- Ultra-large, pure copper CPU block provides effective coverage and heat
dissipation for CPUs of any size.
- The ceramic axle bearings and axle cores guarantee an ultra-long service
life.
- Support Mainstream Intel & AMD
Socket.
Specifications
Application For
- Intel LGA2066/2011-v3/2011/1200/1151/1150/1155/1366
- AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
|
Net
Weight |
945
g |
|
Radiator
Dimensions |
159x120x27
mm |
|
Radiator
Material |
Aluminum |
|
Tube
Length |
315
mm |
|
Pump
Dimensions |
91x79x47
mm |
|
Pump
Speed |
2400
RPM10% |
|
Pump
Noise |
17.8
dB(A) |
|
Pump
Connector |
3-pin |
|
Pump
Rated Voltage |
12
VDC |
|
Pump
Rated Current |
0.21
A10% |
|
Pump
Power Consumption |
2.52
W |
|
Fan
Dimension |
120x120x25
mm |
|
Fan
Speed |
500-1800
RPM10% |
|
Fan
Airflow |
69.34
CFM |
|
Fan
Air Pressure |
2.42
mmAq |
|
Fan
Noise |
30
dB(A) |
|
Fan
Connector |
4-pin |
|
Bearing
Type |
Hydro
Bearing |
|
Fan
Rated Voltage |
12
VDC |
|
Fan
Rated Current |
0.22
A10% |
|
Fan
Power Consumption |
2.64
W |
|
LED
Type |
BLUE
LED |
|
EAN |
6933412726722 |
|
P/N |
DP-H12RF-GL120TB |
