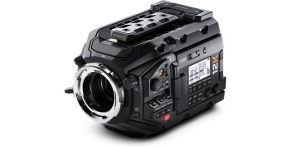

Blackmagic URSA Mini Pro 12K - Black

Overview

URSA Mini Pro 12K is arevolution in digital film with a12,288 x6480 12K Super35 sensor and 14stops of dynamic range. Thethird generation URSA Mini Pro features new color science and shoots 80megapixels per frame in Blackmagic RAW. Youalso get built in NDfilters, user changeable lens mount and recording to dual CFast or SDcards. URSA Mini Pro 12K even supports recording direct to aflash disk or SSD using its built in SuperSpeed USBCconnection!

Camera Features

Effective Sensor Size

• 27.03mm x 14.25mm (Super35)

Lens Mount

• PL mount included. Interchangeable with optional EF and F lens mounts.

Lens Control

• 12pin broadcast connector for compatible lenses and electronic control via EF mount pins on optional EF lens mount.

Dynamic Range

• 14 Stops

Shooting Resolutions

• 12,288 x 6480 (12K DCI)
• 11,520 x 6480 (12K 16:9)
• 12,288 x 5112 (12K 2.4:1)
• 7680 x 6408 (12K Anamorphic)
• 8192 x 4320 (8K DCI)
• 7680 x 4320 (8K 16:9)
• 8192 x 3408 (8K 2.4:1)
• 5120 x 4272 (8K Anamorphic)
• 6144 x 3240 (6K Super16)
• 4096 x 2160 (4K Super16)
• 4096 x 2160 (4K DCI)
• 3840 x 2160 (4K 16:9)
• 4096 x 1704 (4K 2.4:1)
• 2560 x 2136 (4K Anamorphic)

Frame Rates

• Maximum sensor frame rate dependent on resolution selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.

High Speed Frame Rates

• 12K 17:9 full sensor up to 60 fps
• 12K 2.4:1 up to 75 fps
• 8K DCI full sensor up to 120 fps
• 4K DCI full sensor up to 120 fps
• 8K 2.4:1 and 4K 2.4:1 up to 160 fps
• 6K Super 16 up to 120 fps
• 4K Super 16 up to 240 fps

Built in ND Filters

• Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop IR ND filters.

Focus

• Focus button turns on peaking, auto focus available using compatible lenses.

Iris Control

• Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.

Screen Dimensions

• 4 inch

Screen Type

• LCD capacitive touchscreen.

Metadata Support

• Automatically populated lens data from i/Technology with compatible PL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.

Controls

• Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys.

Timecode Clock

• Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

Connections

Total Video Inputs

• 1 x 12G-SDI

Total Video Outputs

• 1 x 12G-SDI, 1 x 3G-SDI Monitoring.

SDI Rates

• 1.5G, 3G, 6G, 12G.

Analog Audio Inputs

• 2 x XLR analog switchable between mic, line and AES audio. Phantom power support.

Analog Audio Outputs

• 1 x 3.5mm headphone jack, supports iPhone microphone for talkback.

Reference Inputs

• Tri-Sync/Black Burst/Timecode.

Remote Control

• 1 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.

Computer Interface

• 1 x USB Type-C 3.1 Gen 2 with power delivery for external drive recording.
• 1 x USB Type-C for software updates.
