C6AJEUTSL305-BK | Serveredge CAT6A UTP Jell Filled Outdoor/Underground Solid Network

Serveredge CAT6A 305M BLACK UTP JELL FILLED OUTDOOR/UNDERGROUND SOLID NETWORK CABLE

Overview

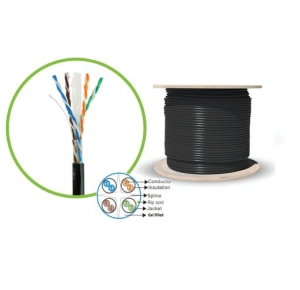

Serveredge CAT6A 305m UTP Jell Filled Outdoor Solid Network Cable can be used to connect a variety of devices in a highspeed network. The cable is twisted in pairs, separated by an integrated pair divider protected by a polyethylene jacket and filled with jell. It's packaged on a wooden reel with sequential measurement markings on the jacket. The cable is made from the highest quality copper to maximize performance and minimize Near-End Crosstalk (NEXT).

FEATURES

• Jell filled to protect from moisture
• UV Stabilised
• Sequential measurement markings on jacket
• Packaged on a wooden reel
• Supports all applications designed to operate over Category 6A or lower rated systems
• Suitable for direct underground burial

SPECIFICATION

• ISO/IEC 11801 Ed. 2.2 (Class EA)
• IEC 61156-5: 2009 (Category 6A)
• ANSI/TIA-568-C.2 (Category 6A)
• Supports up to 1000BASE-T applications
• Sheath material: Polyethylene
• Filling: Jell Filled
• Wall thickness of sheath: 0.45mm
• Rip cord under sheath: Yes
• Insulation material: High-Density Polyethylene (HDPE)
• Insulation thickness: 0.285mm
• Conductor material: Soft annealed bare copper wire
• Cable construction: 4 twisted pairs stranded together
• Colour: Black
• Outer Diameter: 6.8 0.50mm
