PPSMC612 | Serveredge 12 Port CAT6 Surface Mount Patch Panel - UTP

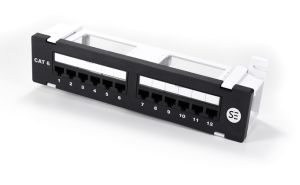

Serveredge 12 Port CAT6 Surface Mount Patch Panel - UTP

Overview

The Serveredge CAT6 Surface Mount Patch Panel is wall mounted with RJ45 jack panels with standard-surpassed transmission performance. It supports high bandwidth up to 250MHz and passes TIA/EIA-568B.2-1 Category 6 performance.

FEATURE

• Meets or exceeds ISO/IEC 11801, TIA/EIA-568-B.2-1 Standards
• UL 1863 Safety Listed
• Printed label for port identification
• Jack Type RJ45 8P8C CAT6 UTP
• IDC Wire Gauges 22 24 AWG
• Mounted on 89D bracket
• Replaceable 6 Port modules
• Hinged / snapped style windows
• Krone and 110 punch down tool compatible

SPECIFICATION

PHYSICAL

• Housing: High-Impact, Flame retardant plastic, UL 94V-0
• Spring Wire: Phosphor Bronze alloy plated with 50 micro-inch of Gold
• IDC: Phosphor Bronze alloy with 100 micro-inch 100% Sn alloy

ELECTRICAL

• Ports: 12
• RU: N/A
• Contacts: 50u Gold plated
• Wiring Standards: T568A & T568B
• Standards: Permanent Link & Channel ANSI/TIA-568-C.2, IEC60603-7-2 2nd Edition ISO/IEC11801 2.2 Edition, CENELEC EN 50173-1:2011
• Network Media: CAT 6
• Compatibility: Compatible with 22-26 AWG Solid and stranded cables
• Mounting Point Retention Strength: 7.9kg
• Temperature: -10 ~ 60C (14F ~ 140F)
• Certifications: CE, FCC
• Dimensions: (W) 254.25mm x (D) 60mm x (H) 58.6mm
• Rack Height: N/A (Wall Mounted)
• Colour: Black

INCLUDES

• (1) 12 Port CAT6 Surface mounted patch panel
• (4) Cable Ties
• (1) Instructions
