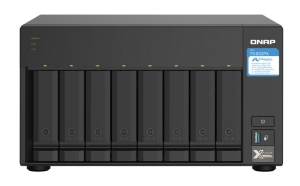

QNAP TS-832PX High-capacity NAS with 10GbE SFP+ and 2.5GbE, Supports
PCIe Expansion for M.2 SSDs to Accelerate Applications
Overview
The quad-core 1.7GHz TS-832PX features eight 3.5-inch SATA 6GB/s drive bays,
providing huge storage potential for a wide range of applications and everyday
usage. With two 10GbE SFP+ and two 2.5GbE LAN ports, the TS-832PX supports
next-generation networks for empowering bandwidth-demanding applications and
providing smoother file access and sharing. Various PCIe cards are also
supported, including QM2 cards that provide M.2 SATA/NVMe SSD caching and Qtier
auto-tiering storage to boost NAS performance.
- Two 10GbE SFP+ and two 2.5GbE RJ45 network ports empower
bandwidth-demanding tasks and accelerate file sharing.
- PCIe expansion allows for installing a QM2 card to add M.2 SSDs for
caching, a 10/5GbE network card, or a wireless network expansion
card.
- Snapshots record your system status, allowing you to protect files and
data from accidental deletion and malware attacks.
- Cloud storage gateways realize hybrid cloud applications by working with
the cache space reserved on NAS to ensure low-latency data access to the
cloud.
- Qtier auto-tiering technology and SSD caching enable constant storage
optimization.
- Increase the storage capacity of the TS-832PX with QNAP TR RAID expansion
enclosures or TL JBOD.
Specifications
|
CPU |
AnnapurnaLabs
Alpine AL324 ARM Cortex-A57 quad-core 1.7GHz
processor |
|
CPU
Architecture |
64-bit
ARM |
|
Floating
Point Unit |
Yes |
|
Encryption
Engine |
Yes |
|
System
Memory |
4
GB SODIMM DDR4(1 x 4 GB) |
|
Maximum
Memory |
16
GB (1 x 16 GB) |
|
Memory
Slot |
1
x SO-DIMM DDR4 |
|
Flash
Memory |
512
MB (Dual boot OS protection) |
|
Drive
Bay |
8
x 3.5-inch SATA 6Gb/s, 3Gb/s |
|
Drive
Compatibility |
3.5-inch
bays: |
|
3.5-inch
SATA hard disk drives |
|
2.5-inch
SATA hard disk drives |
|
2.5-inch
SATA solid state drives |
|
Hot-swappable |
Yes |
|
M.2
Slot |
Optional
via a PCIe adapter |
|
SSD
Cache Acceleration Support |
Yes |
|
2.5
Gigabit Ethernet Port (2.5G/1G/100M) |
2
(also support 10M) |
|
10
Gigabit Ethernet Port |
2
x 10GbE SFP+ |
|
Wake
on LAN (WOL) |
Only
the 2.5GbE port |
|
Jumbo
Frame |
Yes |
|
PCIe
Slot |
1 |
|
Slot
1: PCIe Gen 2 x2 |
|
PCIe
bandwidth limitations will restrict the NAS 10GbE
performance. |
|
USB
3.2 Gen 1 port |
3 |
|
Form
Factor |
Tower |
|
LED
Indicators |
System
Status, LAN, USB, HDD1~8 |
|
Buttons |
Power,
Reset, USB Copy |
|
Dimensions
(HxWxD) |
188.2
x 329.3 x 280.8 mm |
|
Weight
(Net) |
6.38
kg |
|
Weight
(Gross) |
8.61
kg |
|
Operating
temperature |
0
- 40 C (32F - 104F) |
|
Storage
Temperature |
-20
- 70C (-4F - 158F) |
|
Relative
Humidity |
5-95%
RH non-condensing, wet bulb: 27C (80.6F) |
|
Power
Supply Unit |
250W,
100-240V AC, 50/60Hz, 3.5A |
|
Power
Consumption: HDD Sleep Mode |
27.949
W |
|
Power
Consumption: Operating Mode, Typical |
50.858
W |
|
Tested
with drives fully populated. |
|
Fan |
System
fan: 2 x 120mm, 12VDC |
|
CPU
fan: 1 x 60mm |
|
Sound
Level |
19.6
db(A) |
|
System
Warning |
Voice
prompts or Buzzer |
|
Kensington
Security Slot |
Yes |
|
Max.
Number of Concurrent Connections (CIFS) - with Max.
Memory |
700 |
