45-496-224 | Ergotron MXV Desk Dual Monitor Arm - Matte Black

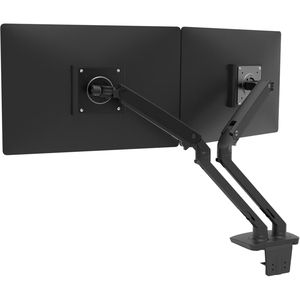

Ergotron MXV Desk Dual Monitor Arm (matte black)

Overview

Style meets functionality with the MXV Desk Dual Monitor Arm. Designed with a modern V shape, this sleek and lightweight arm keeps side-by-side screens stable as you adjust for how you want to work. Slimmer than our LX family, the MVX fits in tight spaces and contains the cable chaos with thoughtful cable management.

Comfortable fit

• Offers full monitor movement and improved ergonomics

More productivity

• Spread work across two screens in landscape or portrait view

Protect your space

• Rotation-stop base keeps arm from hitting the wall or other desks

Fully assembled

• Just attach to your desk, add your monitors and adjust the tension

Low profile

• Attaches securely with a desk clamp that fits in tight areas

Quality design

• Built for years of use by passing our 10,000-cycle motion test

Specifications

• UPC: 698833073867
• Part Number (color):
• 45-496-224 (matte black)
• Description: MXV Desk Mount Dual LCD Monitor Arm
• Includes fully assembled dual arm, two-piece desk clamp, mounting hardware
• Can be configured to hold a laptop instead of an LCD display; also order the accessory Notebook Tray (50-193-200)
• Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
• Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
• Mounting Options: Desk Clamp attaches to surface edge .47" to 1.25" (12 to 32 mm) thick
• An accessory Grommet Mount is available to install arm to desk via a through-hole in its surface: order 98-111
• Desk clamp has anti-rotation screws to prevent base from slipping
• Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
• Screens sizes up to 24" can be accommodated though there will be a reduction in adjustment capability
• * Weight Capacity: individual monitor weight = 7 to 20 lbs (3.2 to 9.1 kg); maximum combined weight of displays = 40 lbs (18.1 kg)
• Tilt Range: 90 backward, 90 forward
• Pan Range: 180 at base; 360 between extension and arm. Rotation-stop on base can be disengaged at time of installation to increase range to 360
• Extension Range: 17.8" (45 cm); maximum extension reach = 22.2" (56 cm) from back of base to VESA mounting plate
• This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
• Product Weight: 10.1 lbs (4.9 kg)
• Shipping Dimensions: 37.2" x 15.7" x 7.6" (94.5 x 39.8 x 19.5 cm)
• Shipping Weight: 15.1 lbs (6.9 kg)
• Warranty: Ten (10) years
