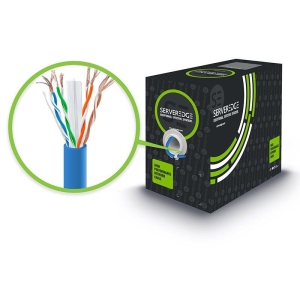

C6UTSTR305-BU | Serveredge CAT6 Network Cable - UTP, Stranded, PVC, 23AWG - 305m

SERVEREDGE CAT6 305M NETWORK CABLE - UTP, STRANDED, PVC, 23AWG - BLUE

Overview

Serveredge CAT6 305m Network Cable - UTP, Stranded, PVC, 23AWG can be used to connect a variety of devices in a high-speed network. The cable is twisted in pairs, separated by an integrated pair divider, and protected by a PVC jacket. It is packaged in an easy to use pull box carton. The cable meets and exceeds all CAT6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). The cable is made from the highest quality copper to maximize performance and minimize Near-End Crosstalk (NEXT).

• Supports all applications designed to operate over Category 6 or lower rated systems
• Sequential measurement markings on jacket
• Packaged in an easy to use pull box carton
• Ideal for running inside walls
• 25 Year Warranty
• Comes in a variety of colours

SPECIFICATION

• Sheath material: PVC
• Wall thickness of sheath: 0.50mm
• Rip cord under sheath: Yes
• Insulation material: High-density polyethylene
• Insulation thickness: 0.23mm
• Conductor material: Soft annealing bare copper wire
• Cable construction: 4 twisted pairs stranded together.
• Cable colours: White/Blue, White/Orange, White/Green, White/Brown
• Twisted pair lay length: 38mm

Standards Compliance

• ISO/IEC 11801 Ed. 2.2 (Class E)
• IEC 61156-5:2009 (Category 6)
• ANSI/TIA-568-C.2 (Category 6)
• Supports up to 1000BASE-T application
