All stock codes associated to this product
C5EUTSL305BU, C5EUTSL305-BU, 9352399000064

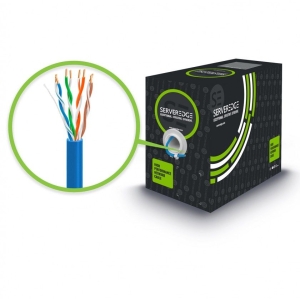

SERVEREDGE CAT5E 305M NETWORK CABLE - UTP, SOLID, PVC, 24AWG -
BLUE
Overview
Serveredge CAT5E 305m Network Cable - UTP, Solid, PVC, 24AWG can be used to
connect a variety of devices in a high-speed network. The cable is twisted in
four pairs and protected by a PVC jacket. It is packaged in an easy to use pull
box carton. The cable is made from the highest quality copper to maximize
performance and minimize Near-End Crosstalk (NEXT).
- Supports all applications designed to operate over Category 5E or lower
rated systems
- Sequential measurement markings on jacket
- Easy & Effective to use pull box packaging
- Ideal for running through walls
- Cheaper alternative to CAT 6 cables
- 25 Year Warranty
SPECIFICATION
- Sheath material: PVC (RoHS complaint)
- Wall thickness of sheath: 0.45mm
- Rip cord under sheath: Yes
- Insulation material: High-density polyethylene (HDPE)
- Insulation thickness: 0.20mm
- Conductor material: Soft annealed bare copper wire
- Cable construction: 4 twisted pairs stranded together
- Cable colours: Blue, grey and green
- Twisted pair lay length: 30mm
Standards Compliance
- IEC 61156-5 (Class D)
- ISO/IEC 11801 Ed 2.2 (Category 5E)
- ANSI/TIA-568-C.2 (Category 5E)
- Supports up to 1000BASE-T applications
