All stock codes associated to this product
AFSATDCSW, AFS-AT-DC-SW, 13AFSATDCW, 13AFS-AT-DC-W

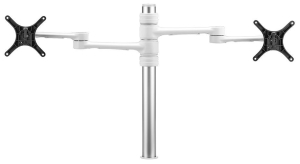

Atdec AFS-AT-DC Dual Display Monitor Arm - White
Overview
The AFS-AT-DC is designed to support two displays up to 8kg. This desk mount
is featuring a 525mm pole with two articulated display arms. The arms can be
independently set to the desired height to ensure perfect display alignment be
it identical or different size monitors. Easy glare control and focal distance
adjustments are possible thanks to three points of articulation on each arm,
tilt and pan functions. The rotating function at the VESA head allows
applications in either landscape or portrait orientation. The displays can be
set in a back-to-back or side-by-side configuration (up to 27" monitors in a
side-by-side landscape orientation). Generous cable management completes the
sleek and professional look.
This solution consists of the following individual components
1 x AF-AT single display desk mount and 1 x AF-AA accessory monitor
arm.
Product specifications
- Flat screen monitors: maximum load up to 8kg per monitor
- Curved screen monitors: maximum load up to 5.5kg per monitor
- Optional 360 arm rotation (can be limited to 180)
- Supports mini PCs (AC-MP accessory sold separately)
- Includes desk clamp and bolt through desk fixing options
- 10-year warranty
- Installation hardware included
Functionality specifications
- Ergonomic
- Landscape to portrait rotation
- Screen sharing capability
- Engineered bearing joints for smooth movement
- Quick-release display head with security screw
- Glare control and optimal viewing angle adjustment via tilt and pan
capabilities
- Individual monitor height requirements settings
Additional design considerations
- Tool-less height adjustment
- Advanced, integrated cable management for a clean look
- Lightweight, durable, recyclable aluminium construction
- Available in silver, black, or white
- Sleek, supple design
|
Spring
assisted height adjustability |
No |
|
Rotation
around pole |
360
rotation/ 180 with rotation limiter |
|
Tilt
adjustment |
-70
to 70 |
|
Pan
adjustment |
180
at the display head |
|
Landscape
to portrait screen rotation |
Yes |
|
Height
adjustable |
Yes |
|
Maximum
arm reach (mm) |
422 |
