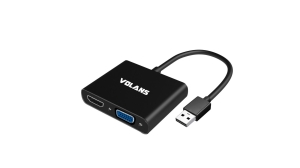

Volans Aluminium USB3.0 to VGA/HDMI Display Converter
Overview
The VL-U3VH-S USB 3.0 to HDMI / VGA adapter turns an available USB 3.0 port
into an HDMI or VGA output, with high resolution 19201080 (1080p) video support
a convenient external video solution that makes it easy to add multi-monitor
capability to a USB 3.0-enabled desktop or laptop computer (optimal performance
from USB 3.0, backward compatible with USB 2.0).
Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the
adapter functions as an external graphics card to deliver smooth,
high-definition content to your HDMI or VGA-capable display. The adapter can be
used to mirror your primary desktop, showing the same image on each display, or
to extend your desktop to double your workspace and increase your
productivity.
Note: this product does not support Mac OS or Linux. If connect HDMI and VGA
at once, image on the two external monitors will be the same.
- SuperSpeed USB 3.0 (5 Gbps) Interface, backward compatible with USB 2.0
(800600)
- Supports resolutions up to 19201080
- Quick, easy installation
- USB-powered No external power adapter required
- Choose between Mirrored, Extended or Primary display
configurations
- Driver software supports display rotation
- Supports the Windows Aero interface
- Supports 2-channel (Stereo) audio
Specifications
|
WARRANTY
INFORMATION |
|
Warranty |
1
Year |
|
HARDWARE |
|
Audio |
Yes |
|
Chipset
ID |
Fresco
Logic FL2000 |
|
Industry
Standards |
Standard
HDMI, SuperSpeed USB 3.0, USB 2.0 |
|
Output
Signal |
HDMI
/ VGA |
|
USB
Pass-Through |
No |
|
PERFORMANCE |
|
Audio
Specifications |
2-Channel
Stereo (48Khz) |
|
General
Specifications |
This
USB video adapter uses a Fresco Logic chipset. If youre connecting this
device to a computer along with additional USB video adapters or docking
stations, please avoid using devices with a DisplayLink
chipset. |
|
Maximum
Digital Resolutions |
1920x1080 |
|
Supported
Resolutions |
Widescreen(16/32
bit): |
|
1920x1080,
1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768,
1280x720Standard(16/32 bit): |
|
1600x1200,
1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768,
800x600 |
|
Wide
Screen Supported |
Yes |
|
CONNECTOR(S) |
|
Connector
A |
1
USB Type-A USB 3.0 Male Input |
|
Connector
B |
1
HDMI Female Output |
|
Connector
B |
1
VGA Female Output |
|
SOFTWARE |
|
OS
Compatibility |
Windows
10 (32/64) |
|
Windows
8 / 8.1 (32/64) |
|
Windows
7(32/64) |
|
SPECIAL
NOTES / REQUIREMENTS |
|
Note |
Connect
a maximum of one VL-U3VH adapters on a single PC See manual for system
requirements. Please download the latest driver from Volans website before
use for best performance. |
|
ENVIRONMENTAL |
|
Humidity |
<85%
RH Non-Condensing |
|
Operating
Temperature |
0C
to 55C (32F to 131F) |
|
Storage
Temperature |
-10C
to 75C (14F to 167F) |
|
PHYSICAL
CHARACTERISTICS |
|
Color |
Black |
|
Enclosure
Type |
Aluminium |
|
WHATS
IN THE BOX |
|
Included
in Package |
1
VL-U3VH-S |
|
1
Installation
guide |
